Front Suspension System: General: Troubleshooting

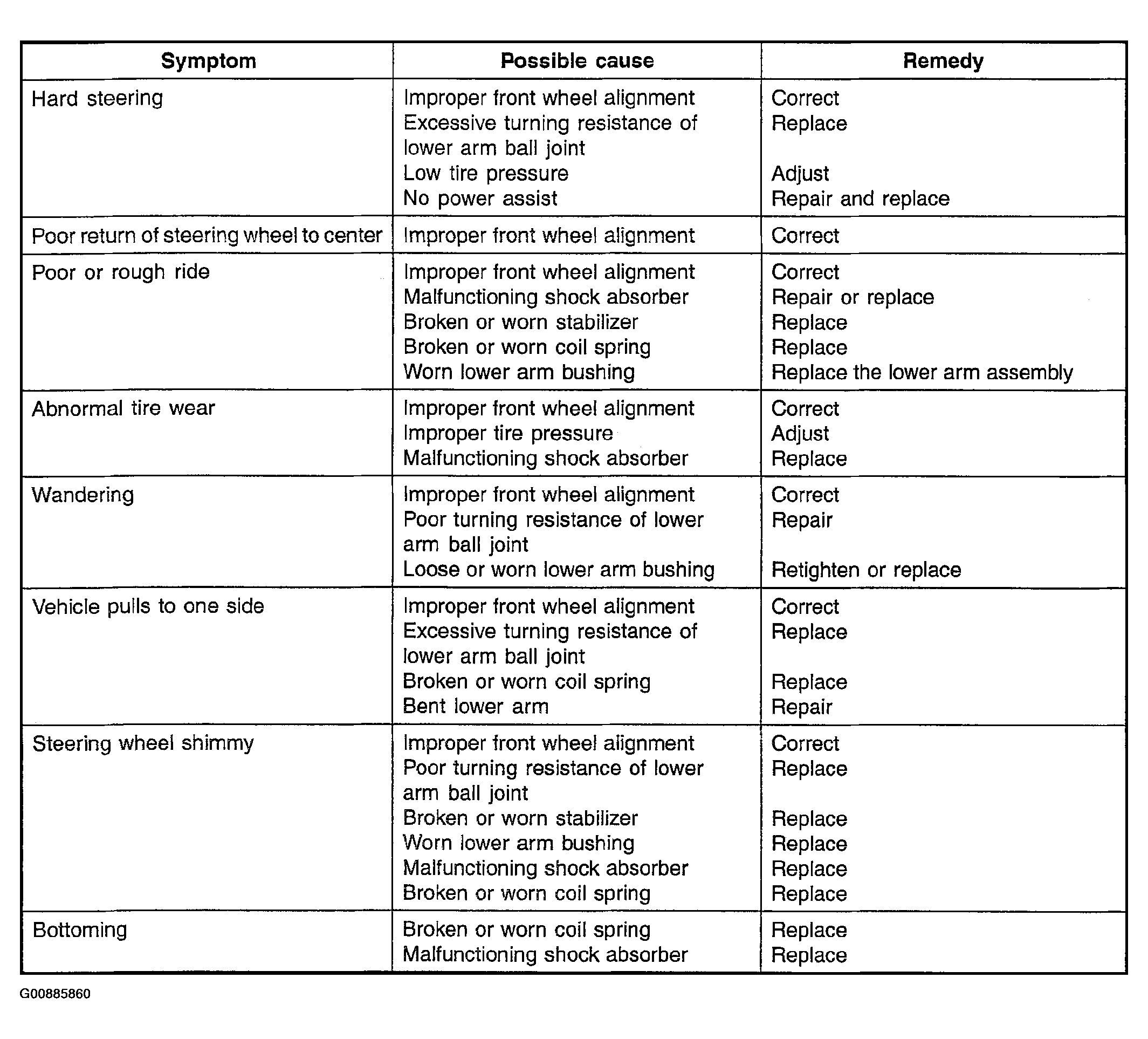

Fig 1: Troubleshooting

Courtesy of HYUNDAI MOTOR CO.

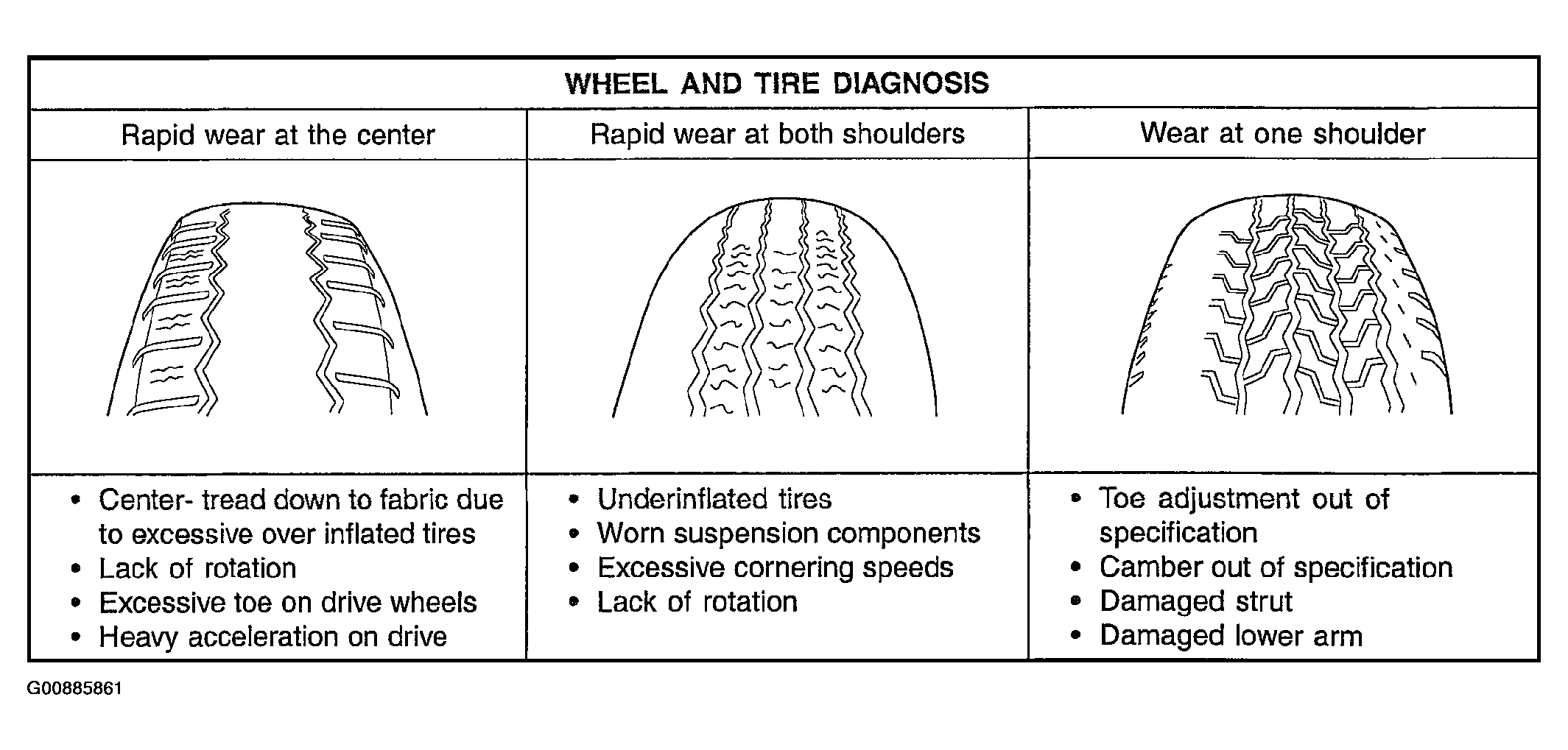

Fig 2: Wheel & Tire Diagnosis (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

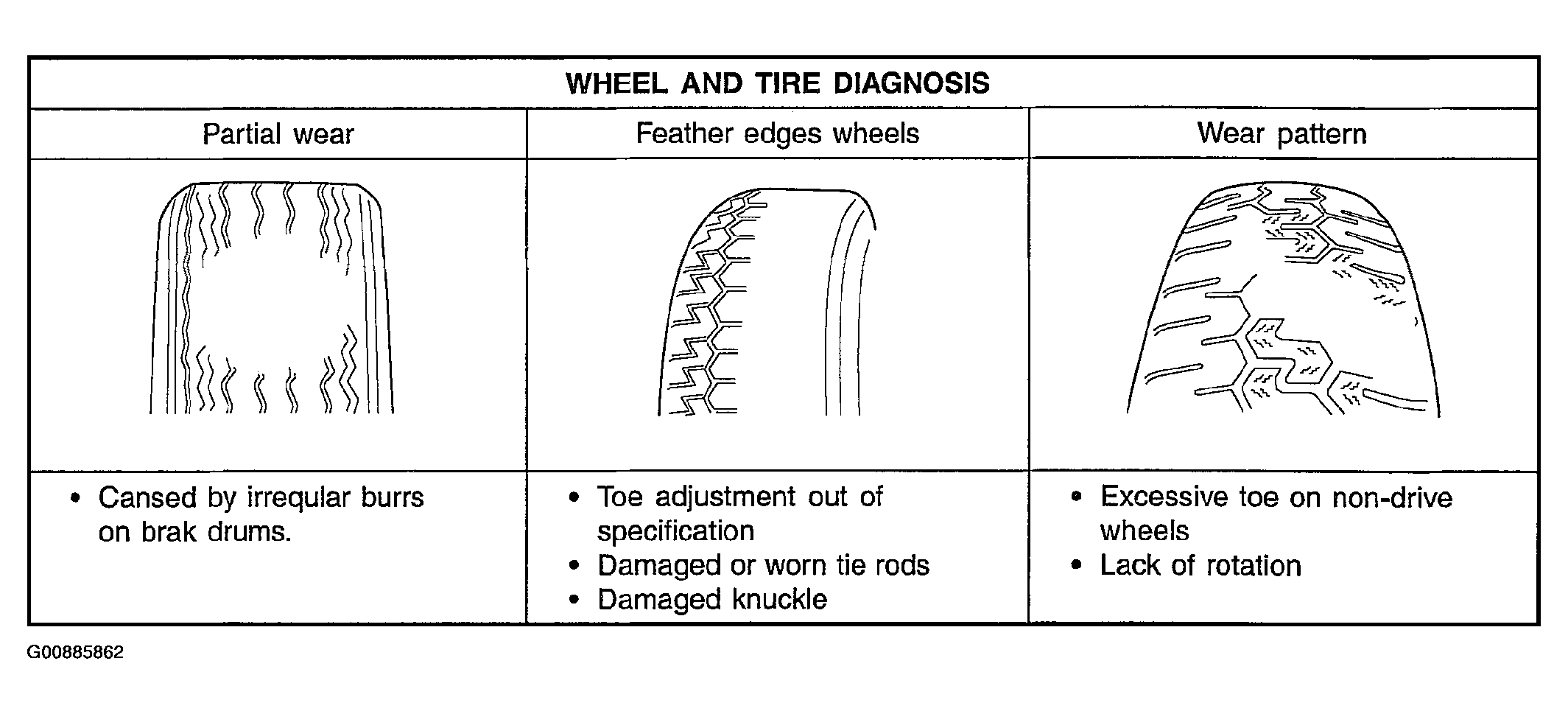

Fig 3: Wheel & Tire Diagnosis (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.
