DTC P0030: O2 Sensor Heater Control Circuit (Bank 1, Sensor 1): DTC Detecting Condition

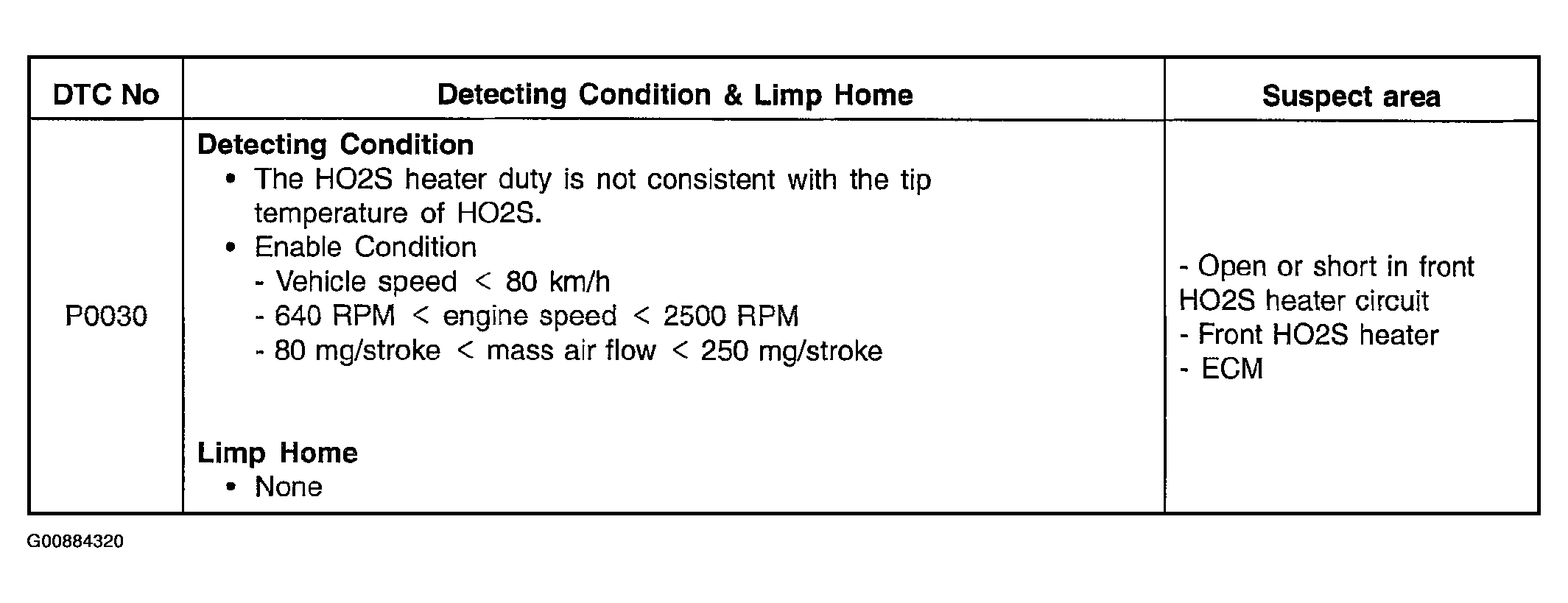

Fig 1: DTC Detecting Condition
G00884320Courtesy of HYUNDAI MOTOR CO.
