DTC P0150: O2 Sensor Circuit Malfunction (Bank 2, Sensor 1)
›
DTC Detecting Condition
DTC P0150: O2 Sensor Circuit Malfunction (Bank 2, Sensor 1): DTC Detecting Condition

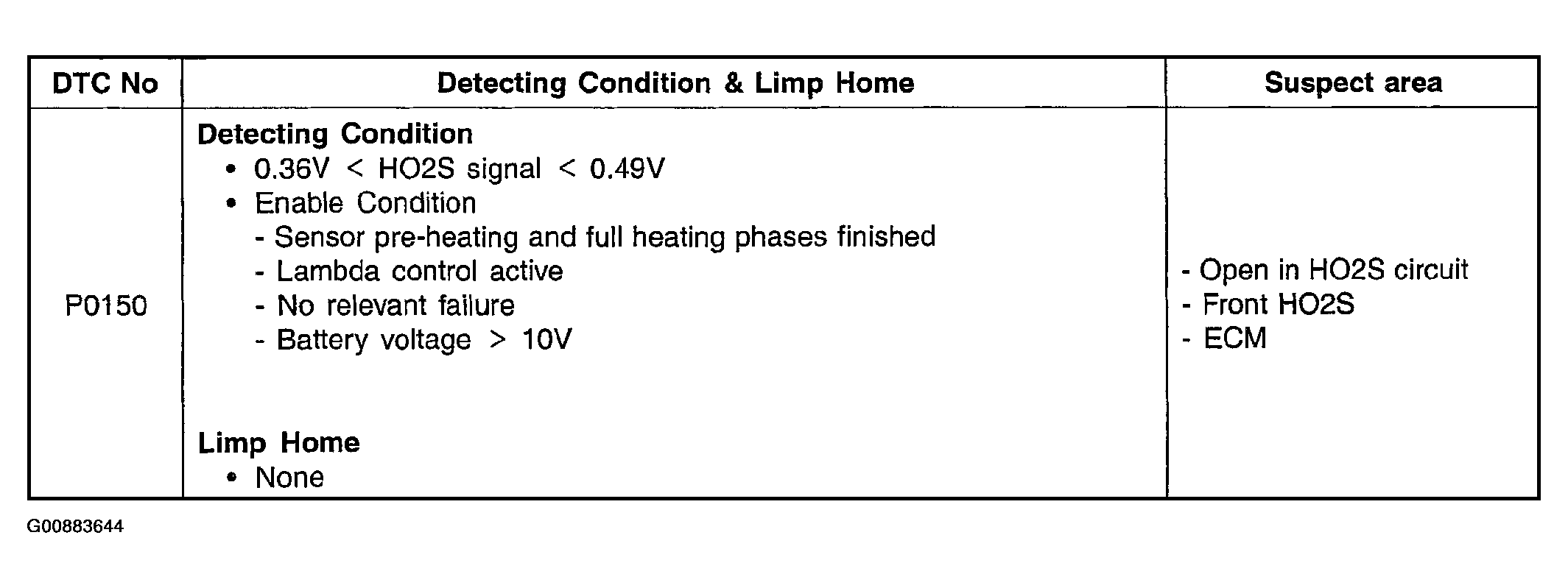

Fig 1: DTC Detecting Condition
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
