MFI Troubleshooting Procedures: Problem

Communication with scan tool is not possible.

(Cannot communicate with any system)

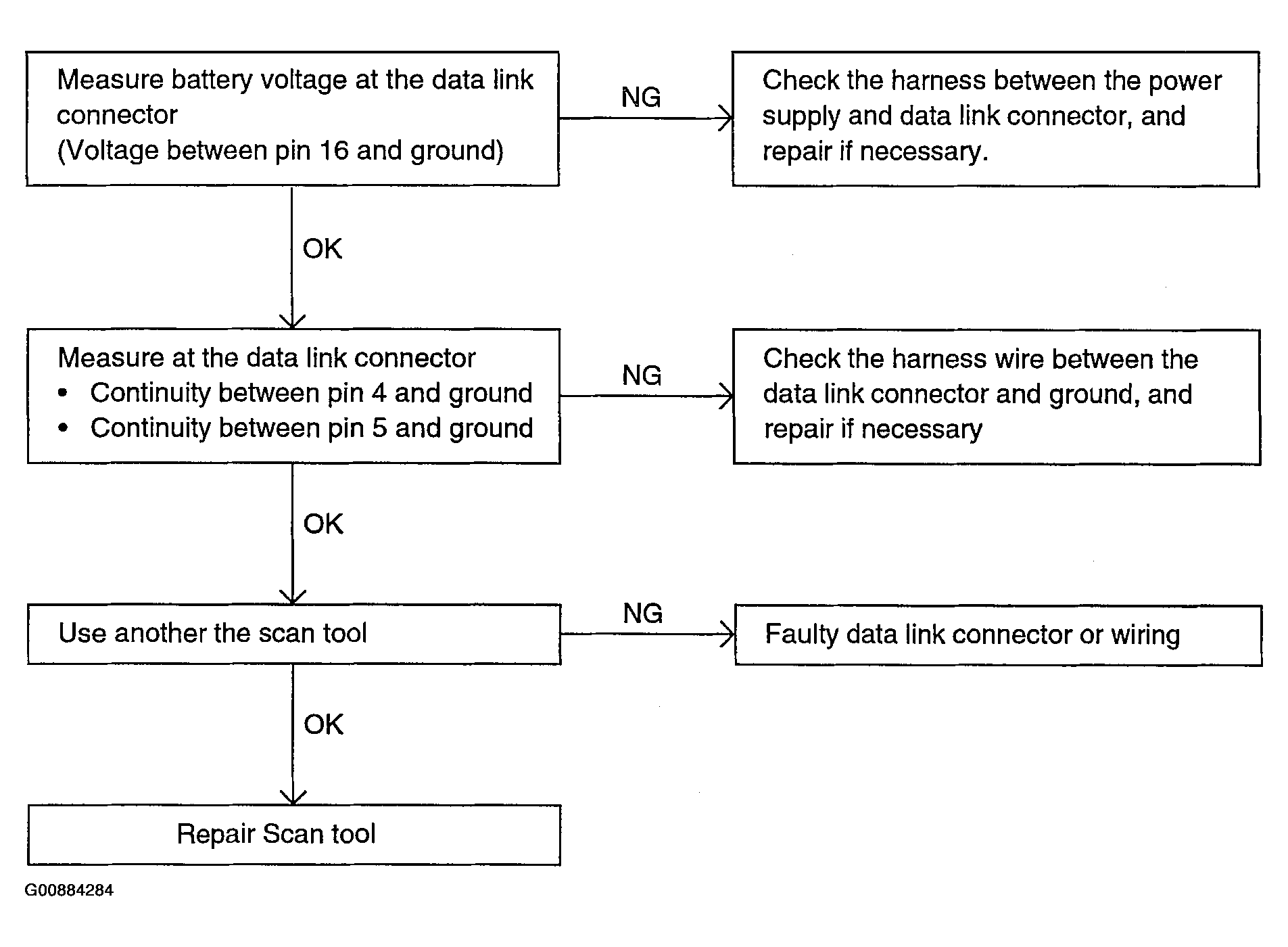

Fig 1: Communication With Scan Tool Is Not Possible

Courtesy of HYUNDAI MOTOR CO.
