Location Of MFI Components
Location Of MFI Components

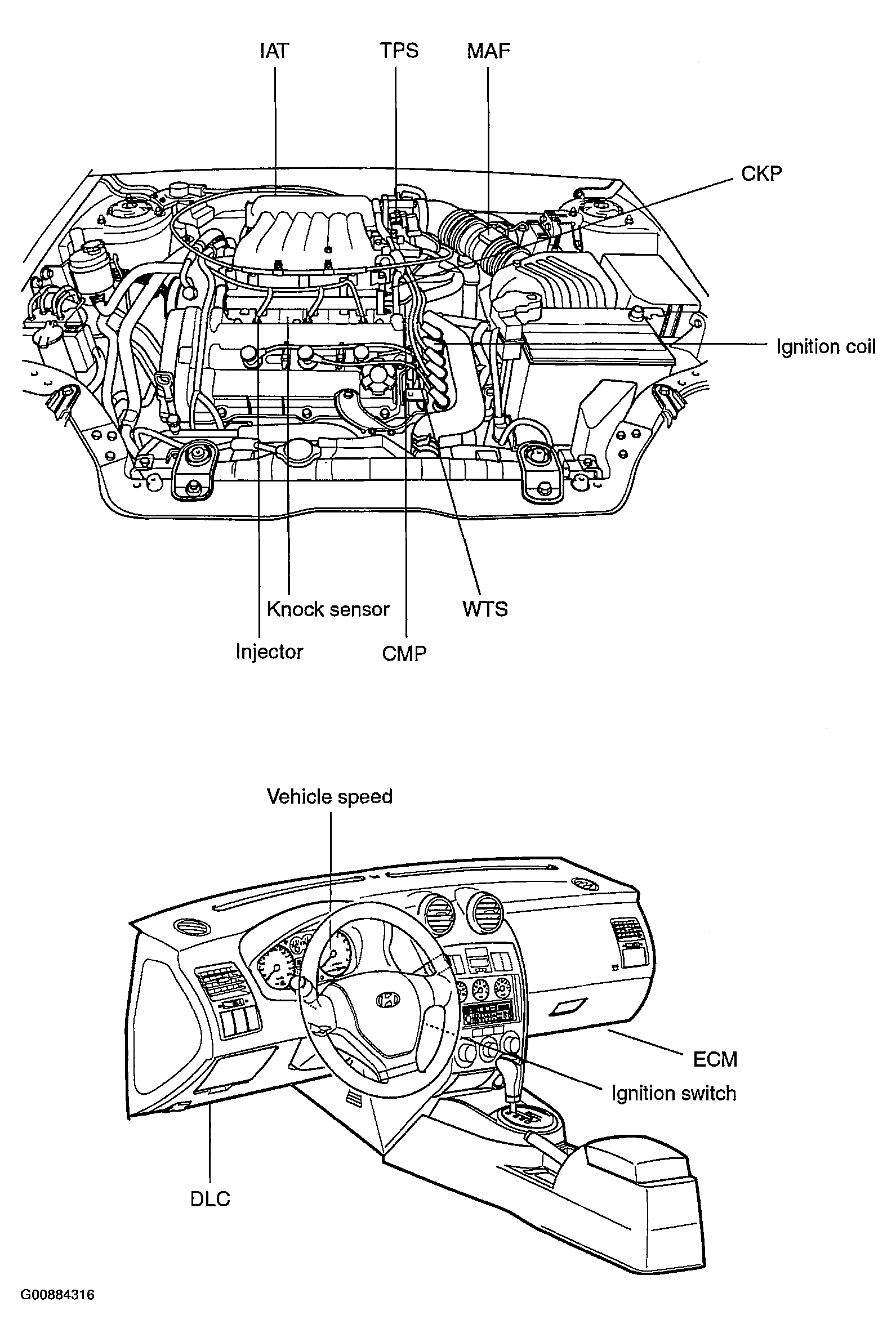

Fig 1: Locating MFI Components (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

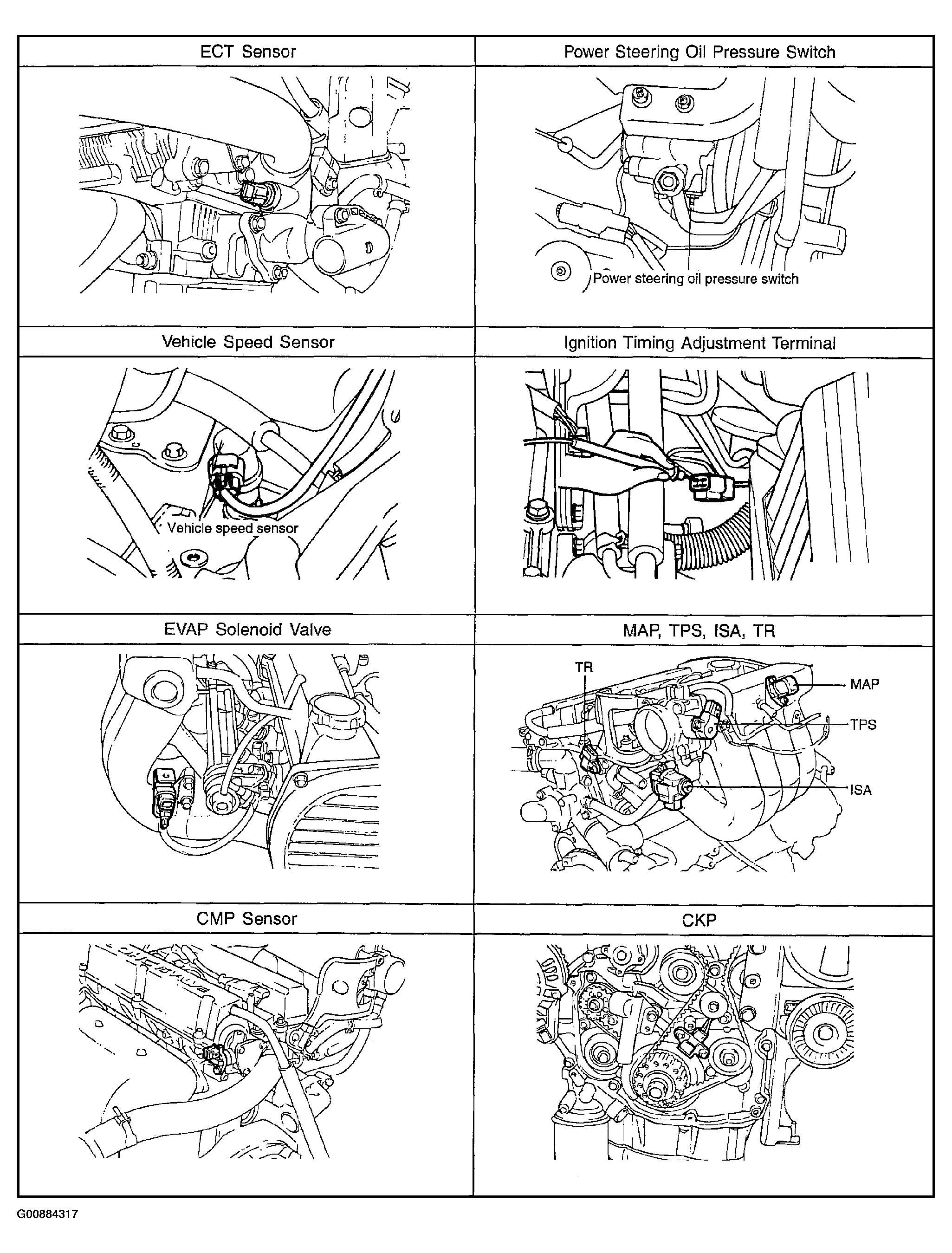

Fig 2: Locating MFI Components (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

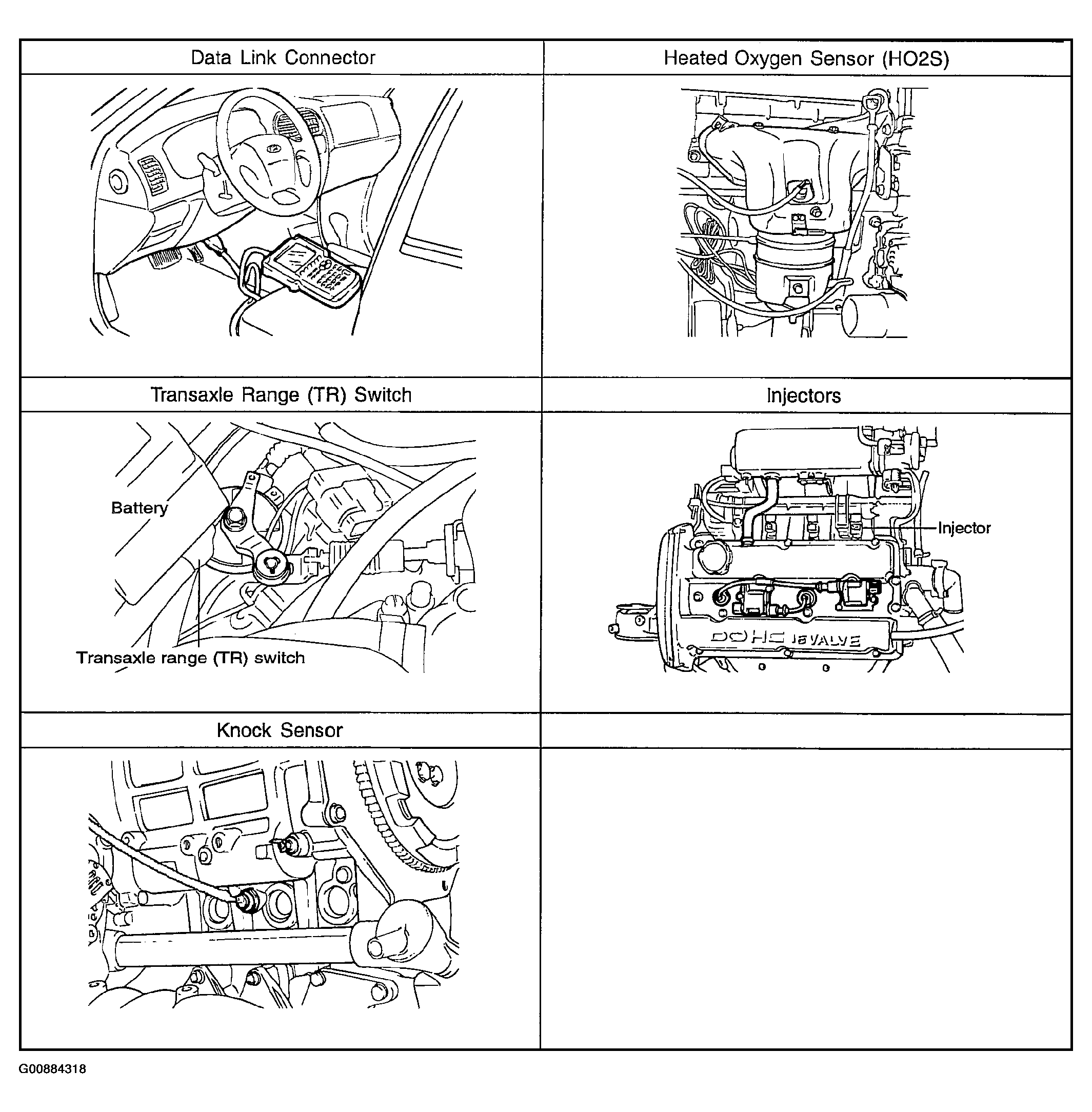

Fig 3: Locating MFI Components (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
