CMP And CKP

Should increase gradually while depressing the accelerator pedal and should decrease gradually after releasing the pedal without any intermittent drop or rise.

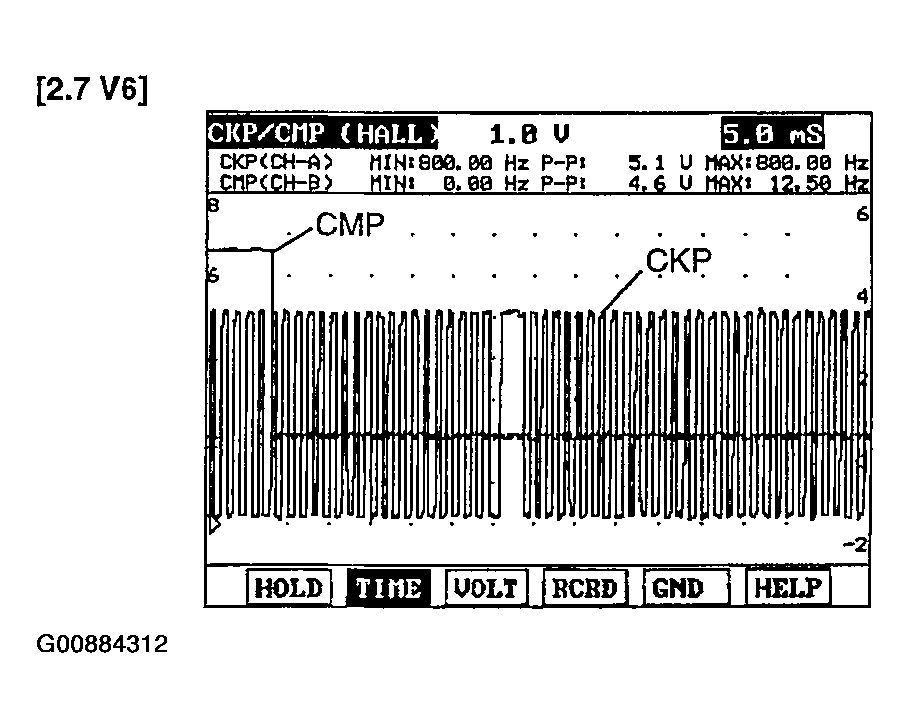

Fig 1: CMP & CKP Wave Form
G00884312Courtesy of HYUNDAI MOTOR CO.
