Circuit Diagram (With IMS): Components

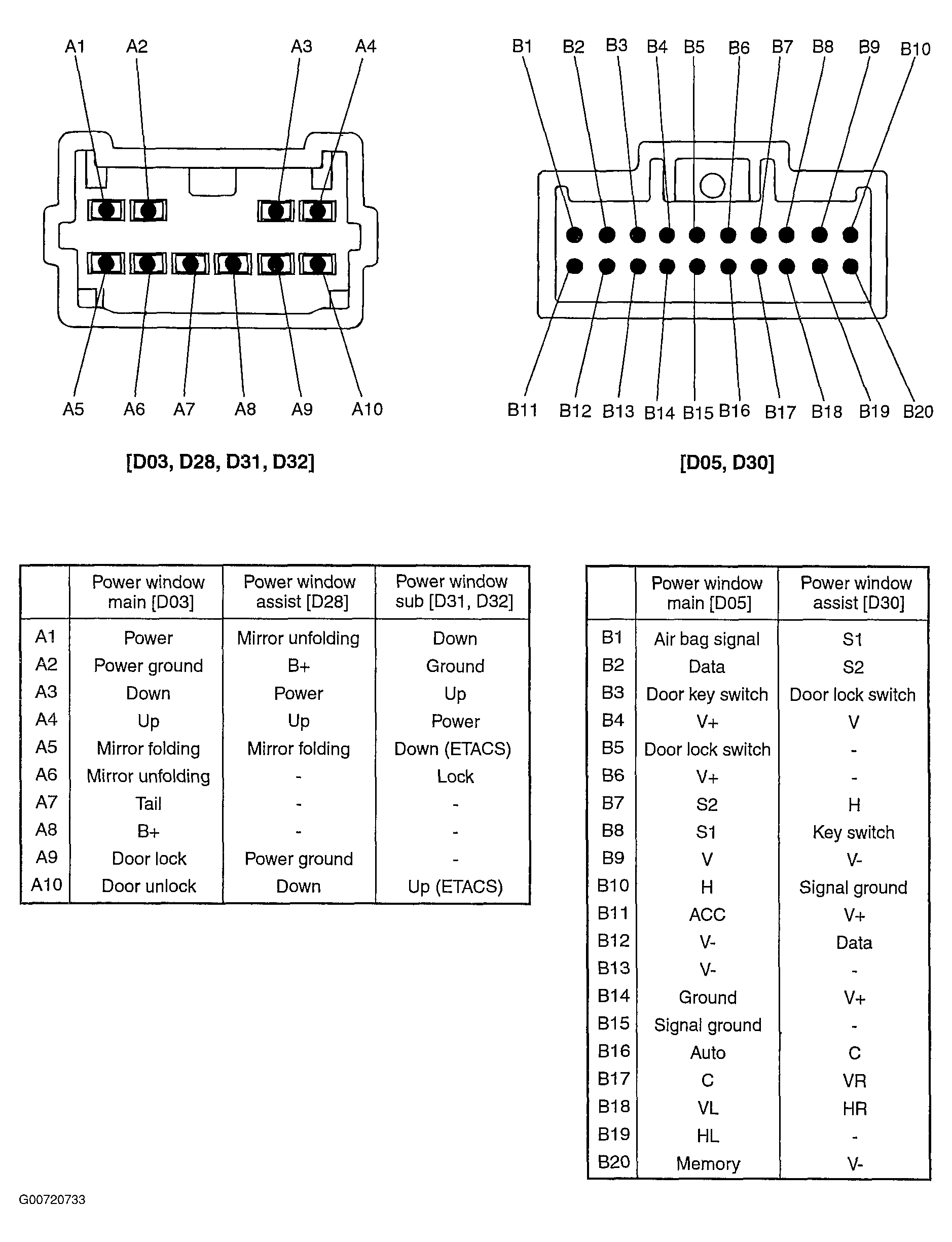

Fig 1: Power Window Circuit Identification (With IMS)
G00720733Courtesy of HYUNDAI MOTOR CO.
