Circuit Diagram (Without IMS): Components

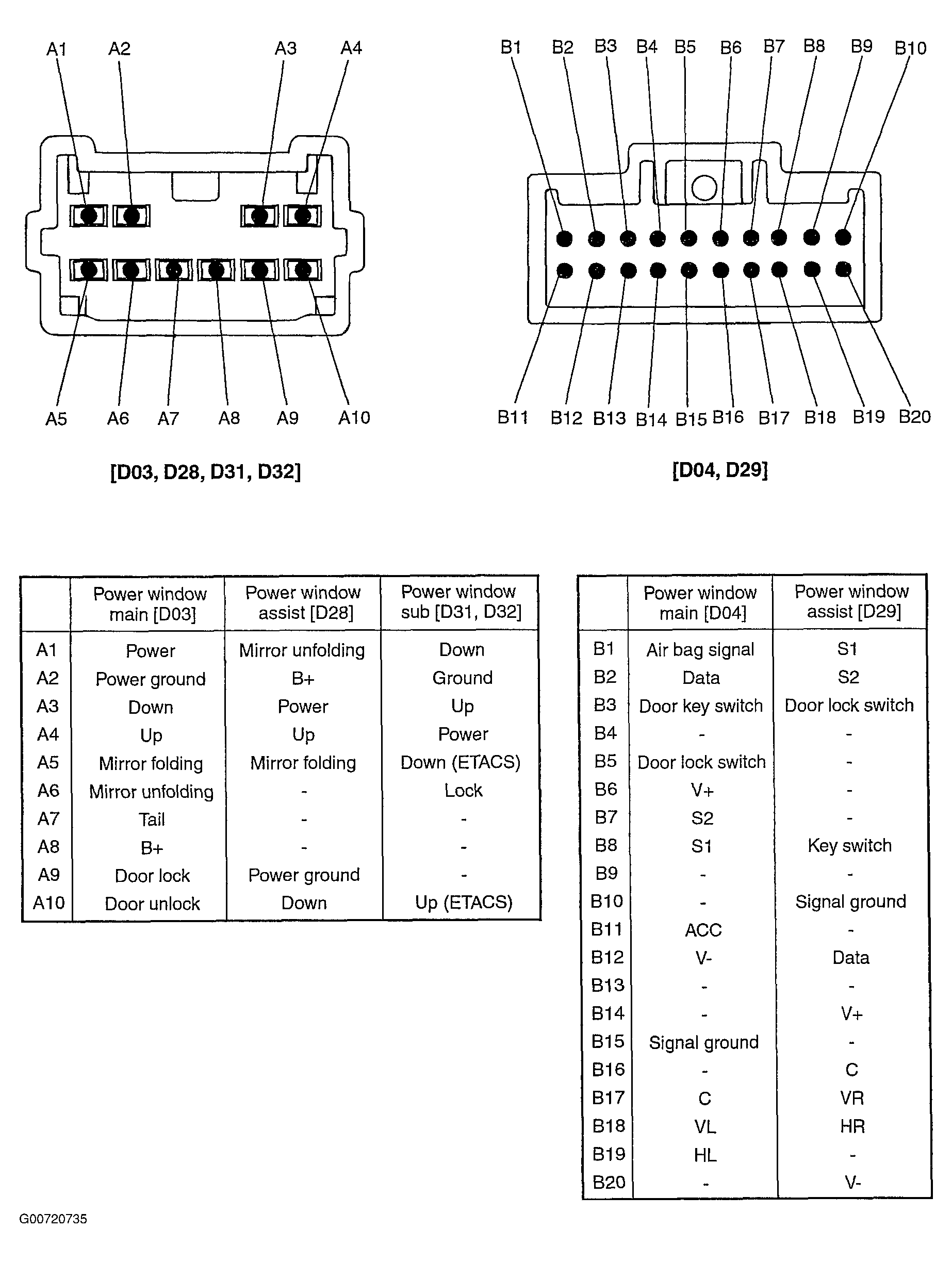

Fig 1: Power Window Circuit Identification (Without IMS)
G00720735Courtesy of HYUNDAI MOTOR CO.
