Signal I/O For Each Control Feature

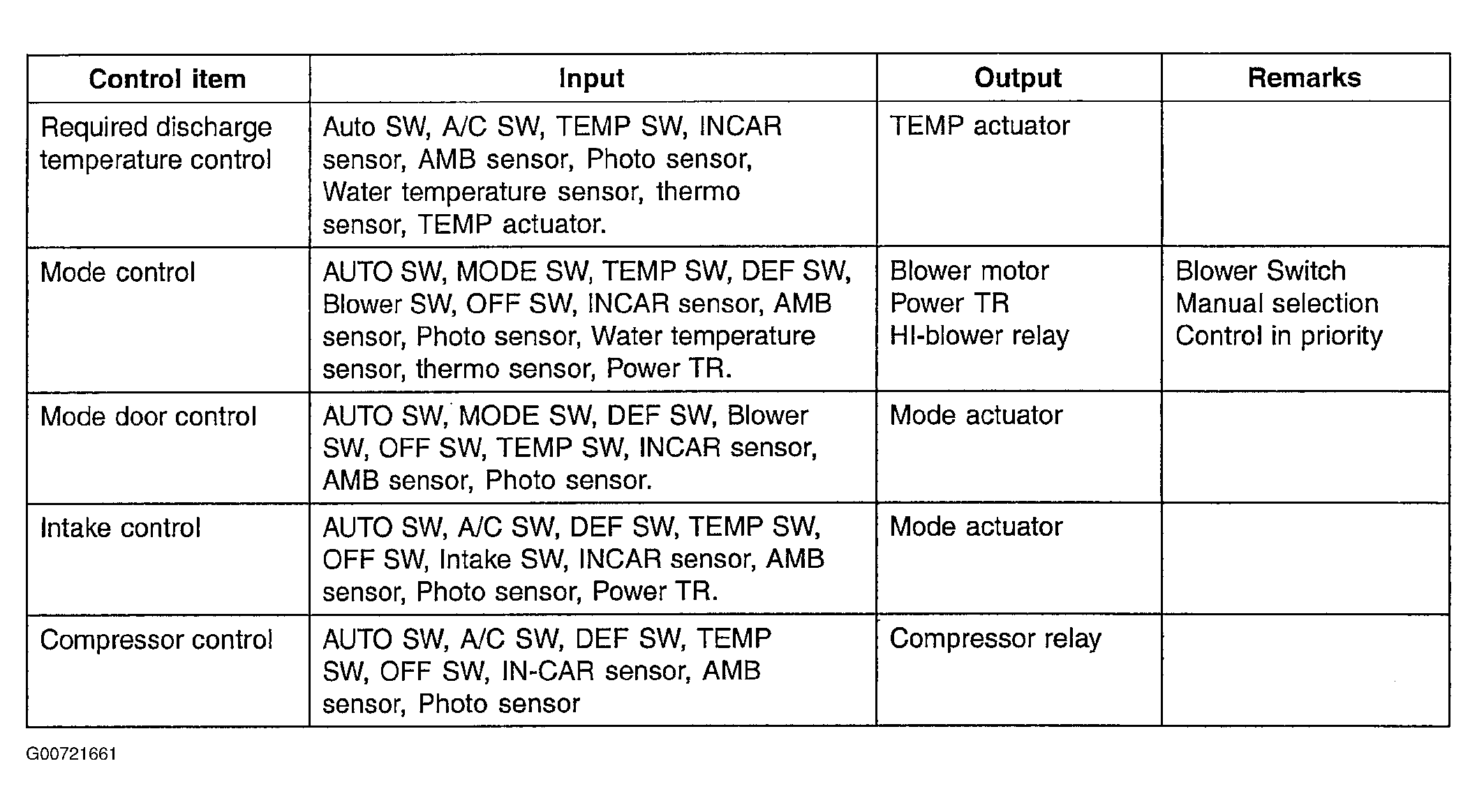

Fig 1: Control Feature Table

Courtesy of HYUNDAI MOTOR CO.

• During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.
