Power Seat Motor: Components

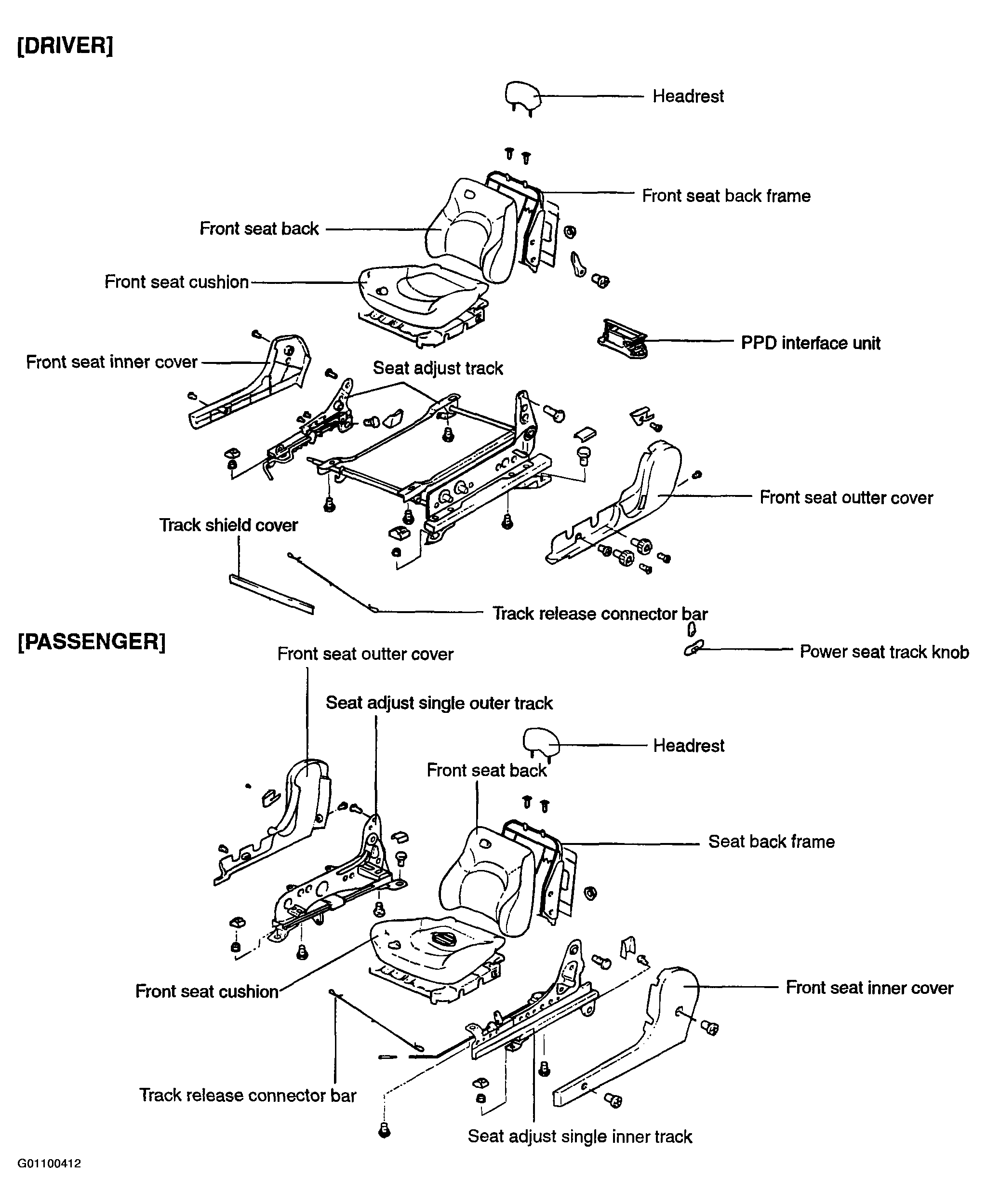

Fig 1: Identifying Seat Components
G01100412Courtesy of HYUNDAI MOTOR CO.
