Inspection Procedure 5
Inspection Procedure 5

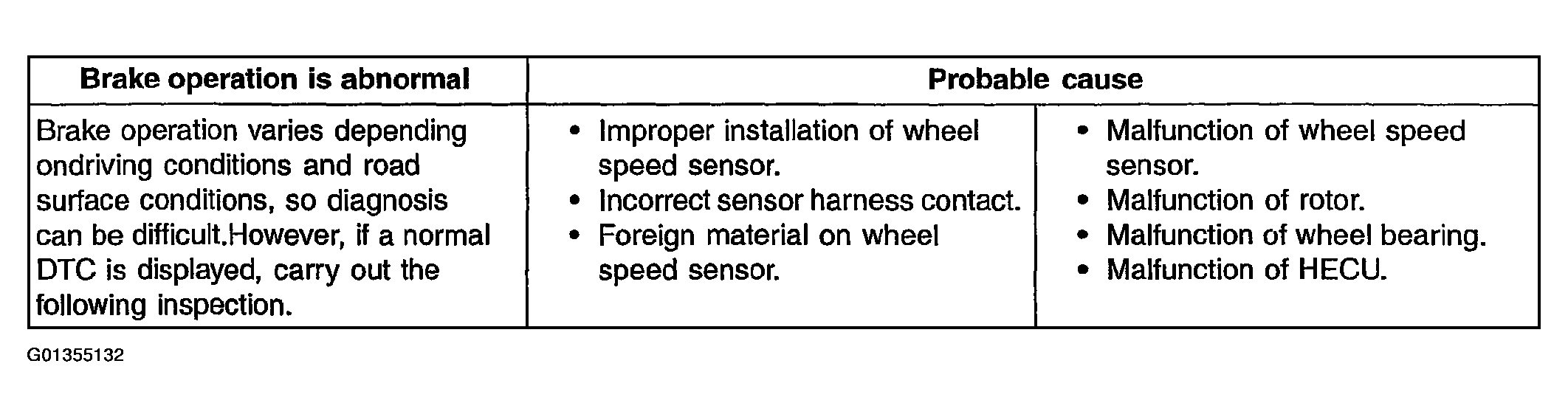

Fig 1: Inspection Procedure 5 Table
Courtesy of HYUNDAI MOTOR CO.

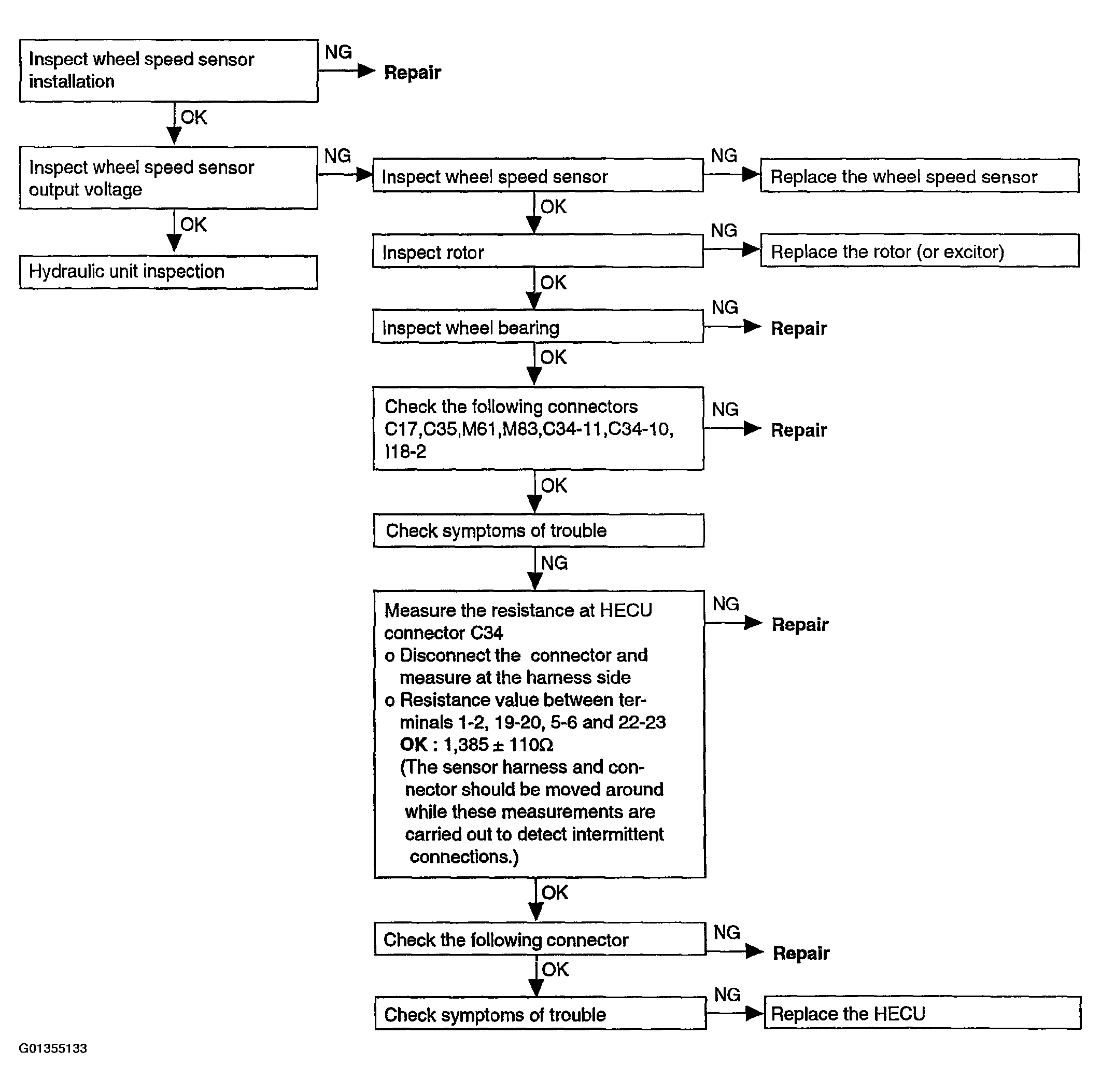

Fig 2: Inspection Procedure 5 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
