Harness Inspection Procedures

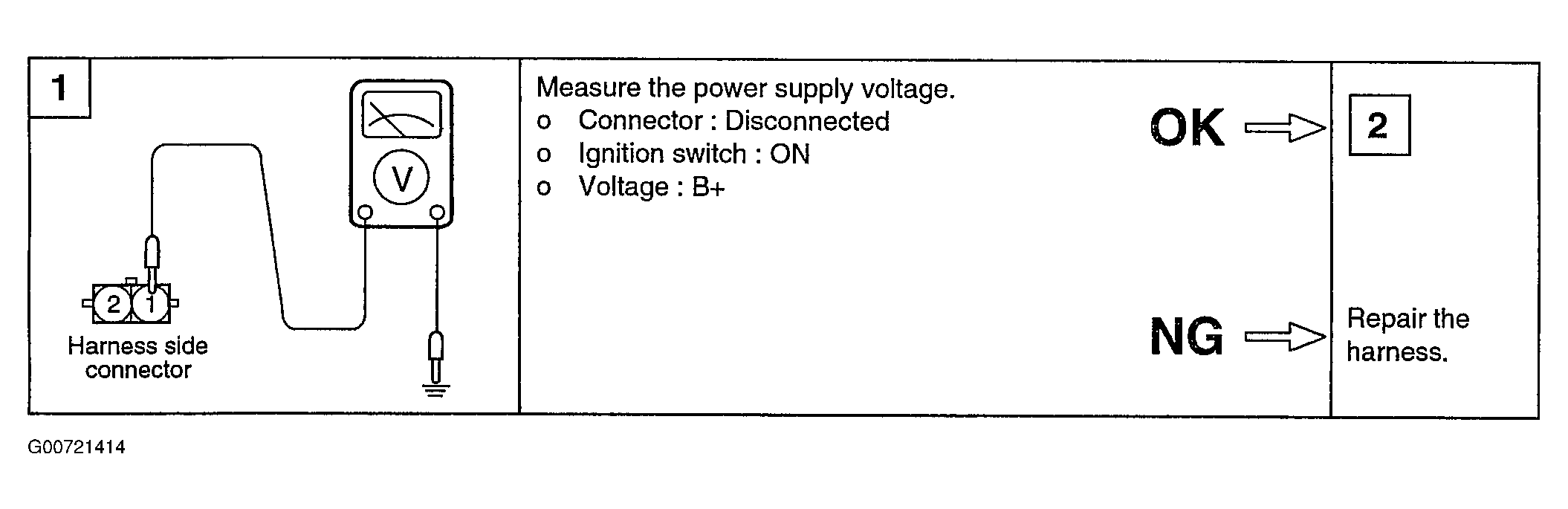

Fig 1: Checking Canister Close Valve Harness (1 Of 2)
G00721414Courtesy of HYUNDAI MOTOR CO.

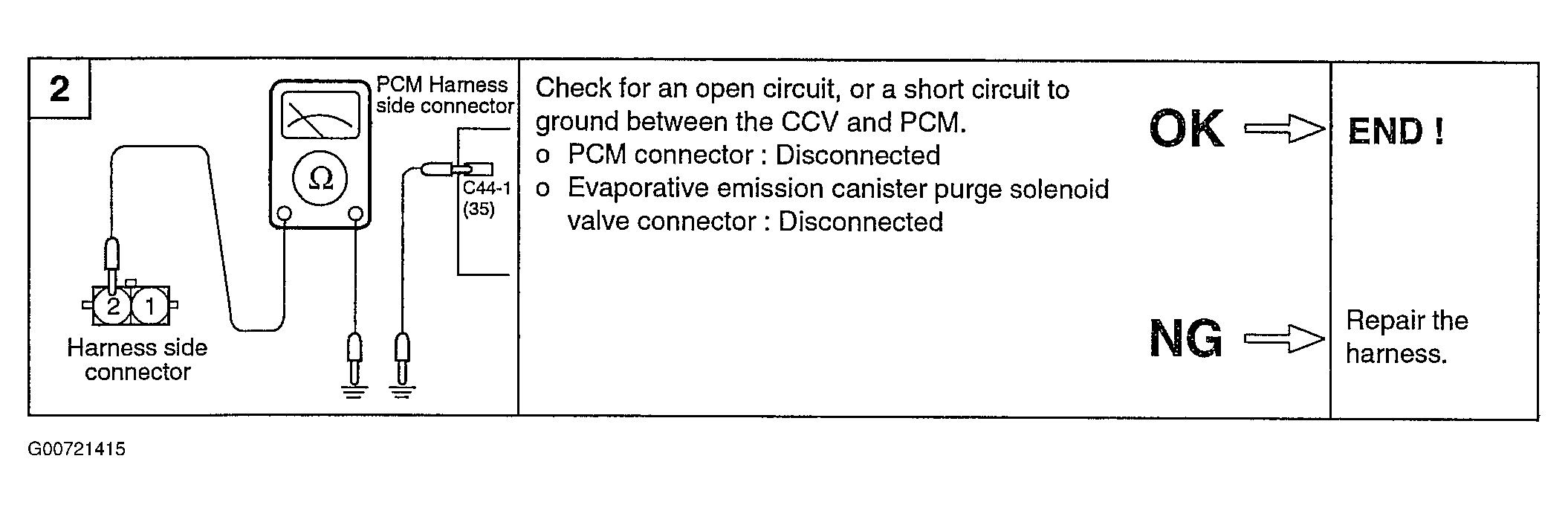

Fig 2: Checking Canister Close Valve Harness (2 Of 2)
G00721415Courtesy of HYUNDAI MOTOR CO.
