Canister Close Valve
›
Trouble Shooting Procedures
Trouble Shooting Procedures

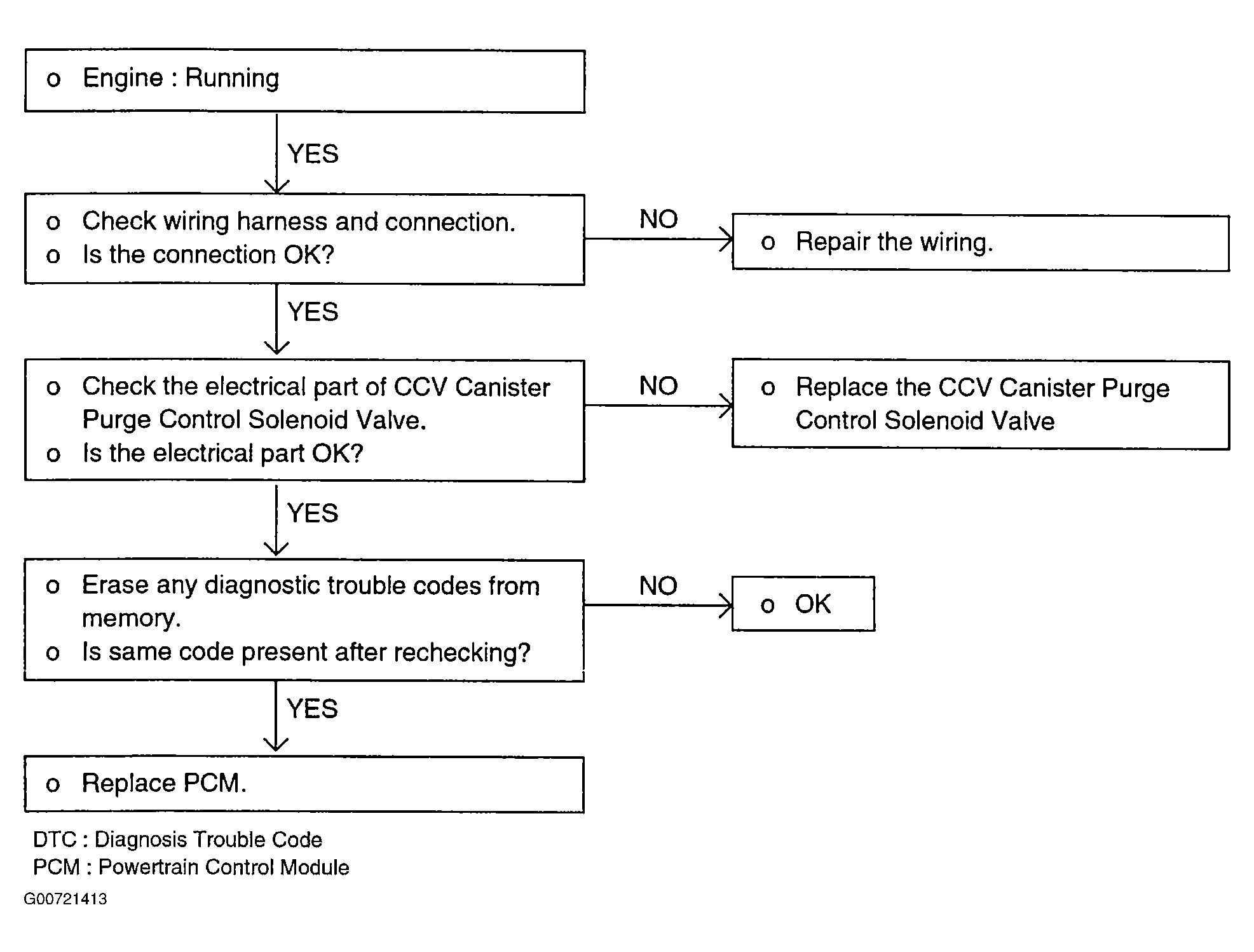

Fig 1: Canister Close Valve Trouble Shooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
