Exhaust Gas RECIRCULATION (EGR) Solenoid Valve
›
Harness Inspection Procedures
Harness Inspection Procedures

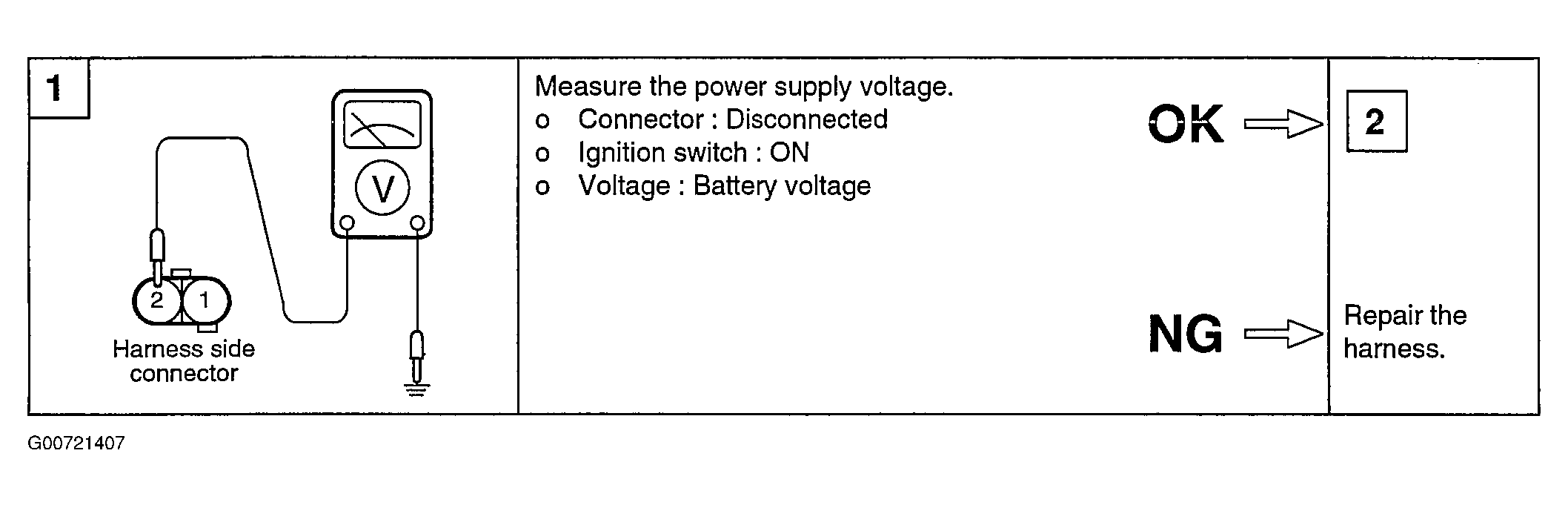

Fig 1: Checking EGR Solenoid Valve Harness (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

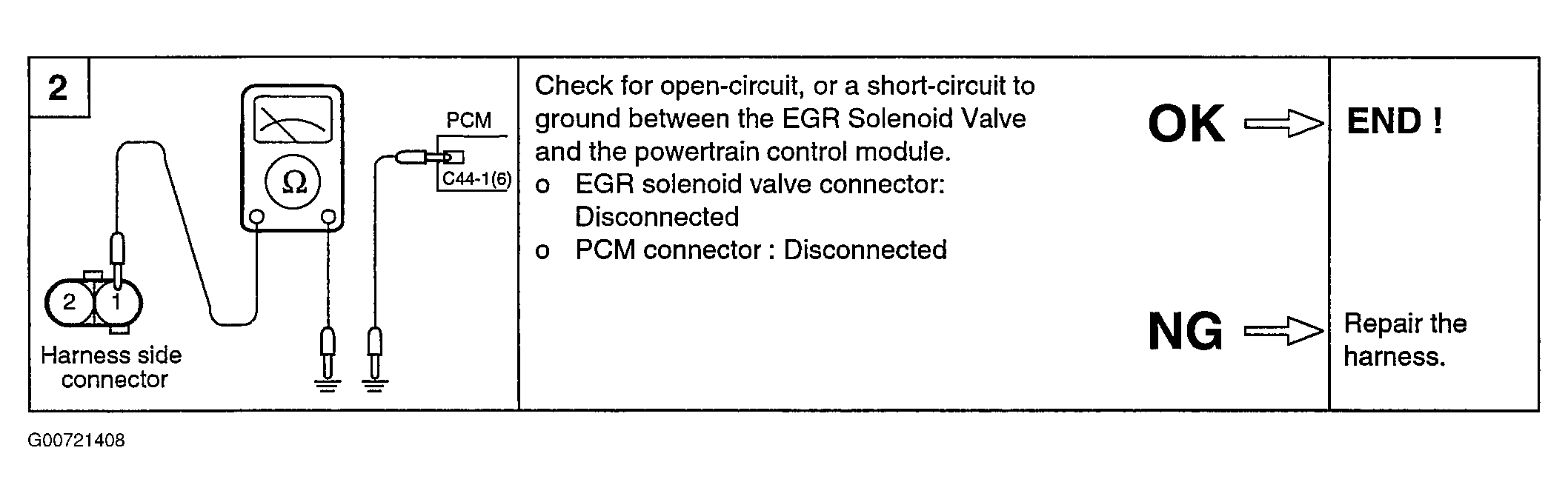

Fig 2: Checking EGR Solenoid Valve Harness (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
