Heated Oxygen Sensor (Ho2S)
›
Harness Inspection Procedures
Harness Inspection Procedures

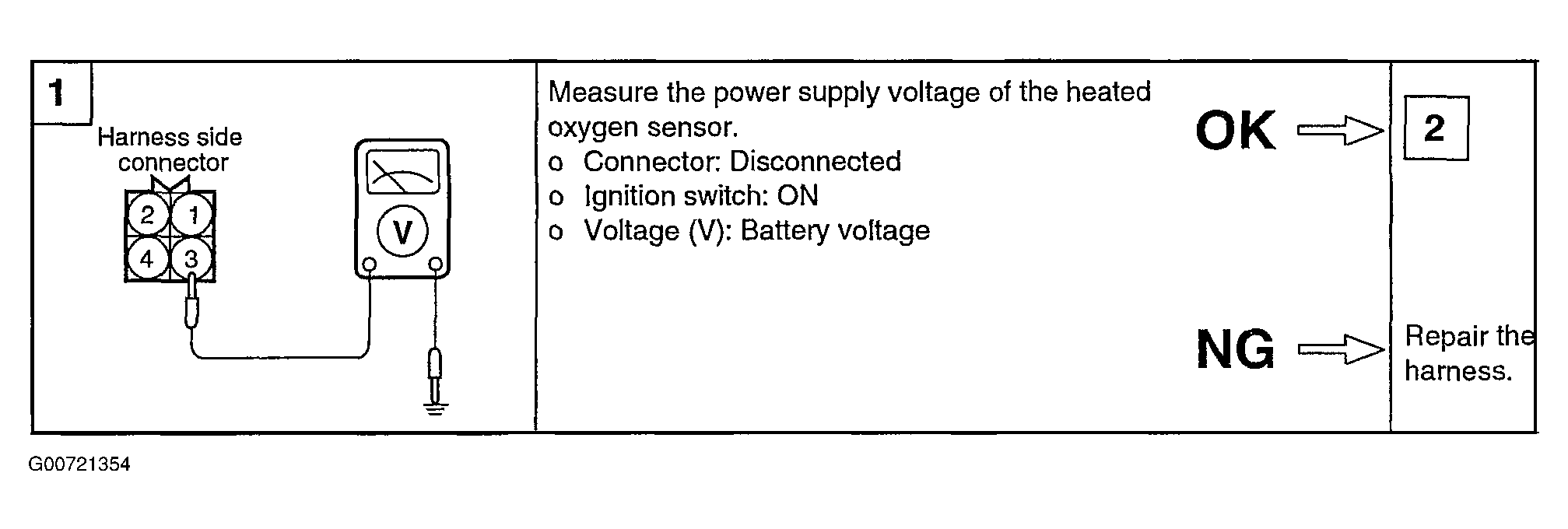

Fig 1: Checking HO2S Harness (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

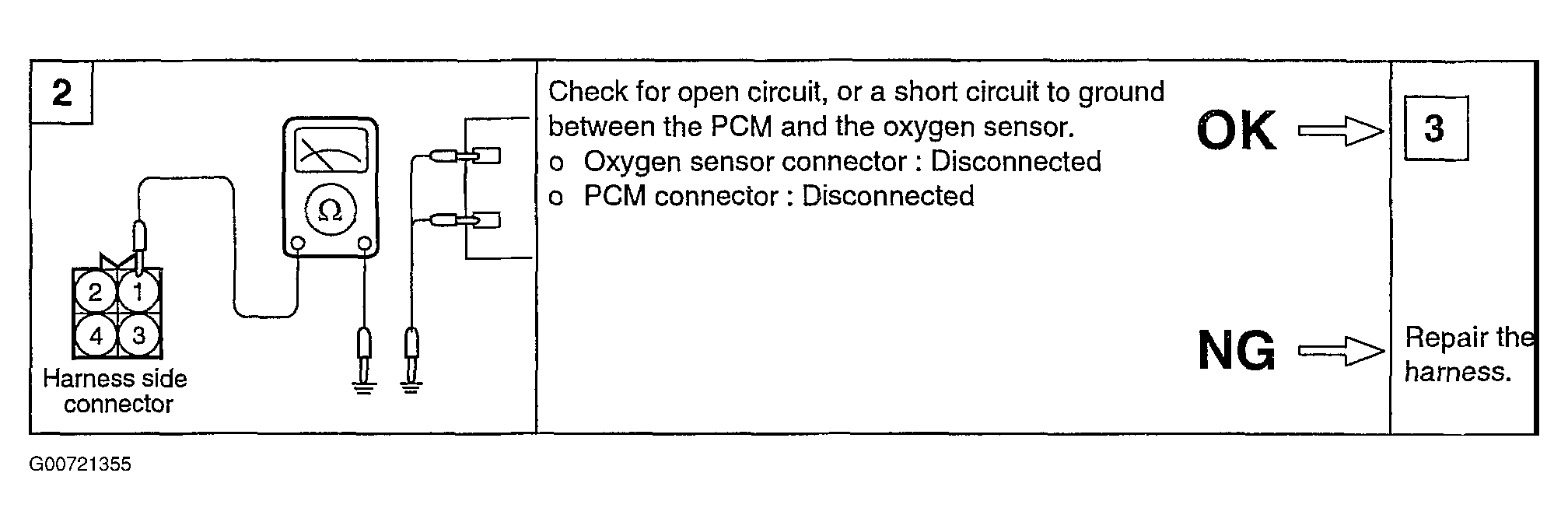

Fig 2: Checking HO2S Harness (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

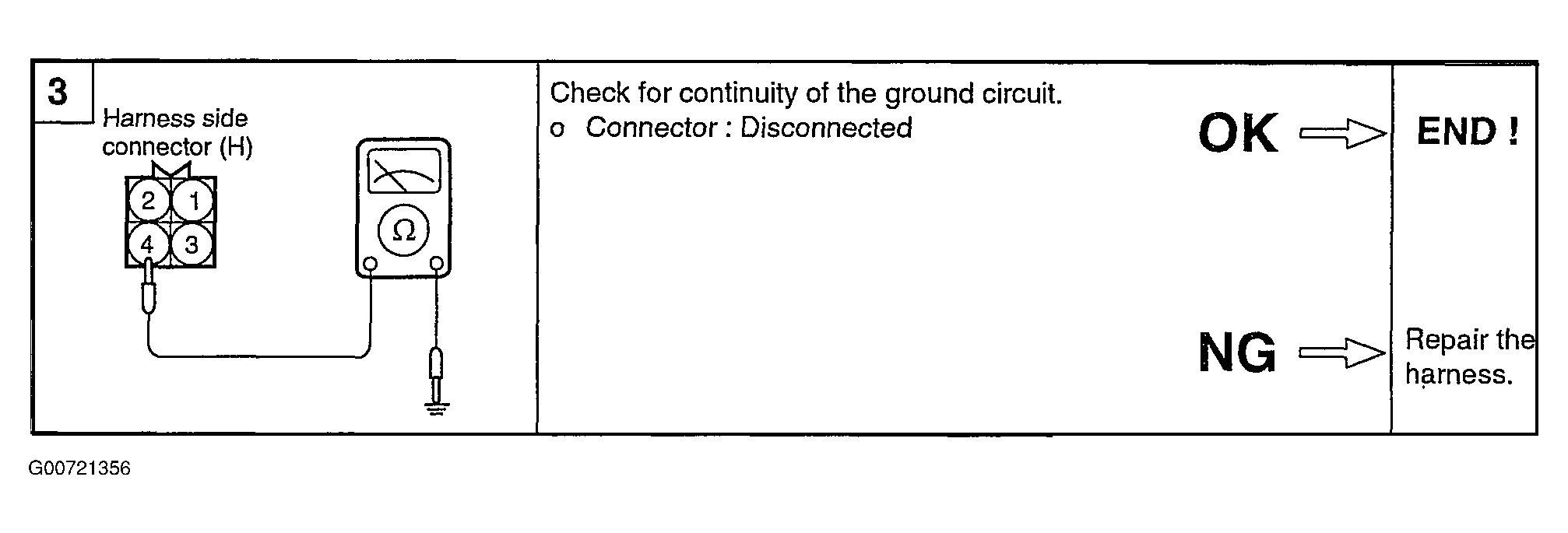

Fig 3: Checking HO2S Harness (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
