Hyundai
›
2004
›
XG350 Base
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System
›
MFI Control System
›
Intake Air Temperature (IAT) Sensor
›
Harness Inspection Procedures
Harness Inspection Procedures

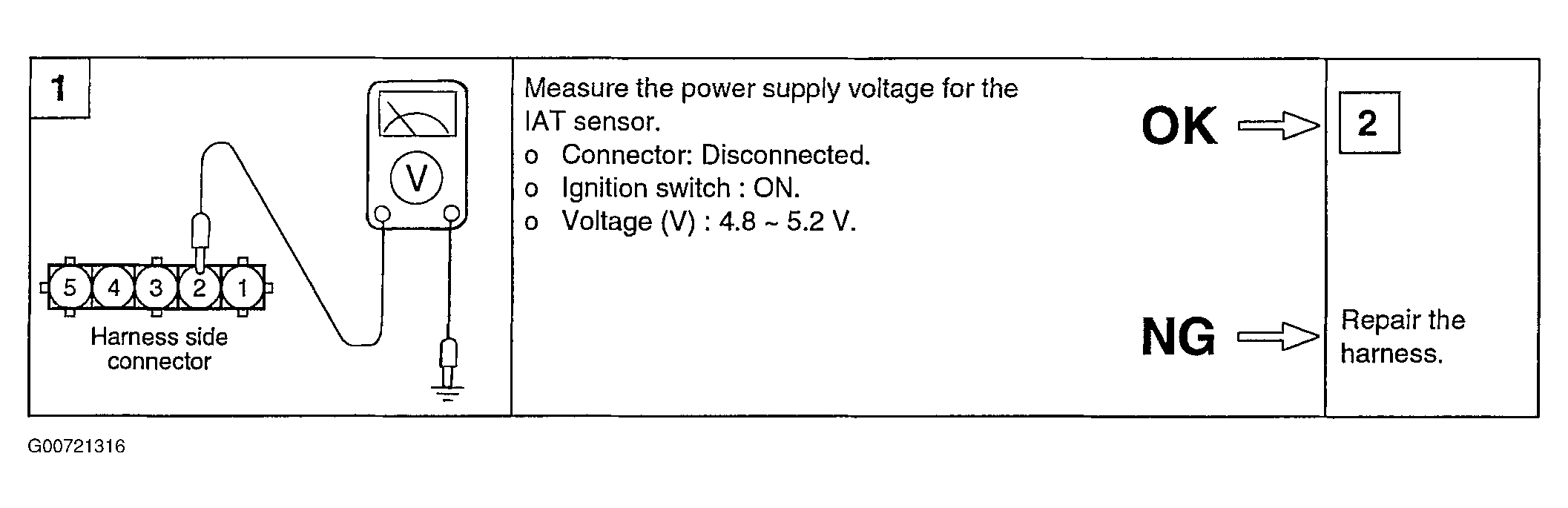

Fig 1: Checking IAT Harness (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

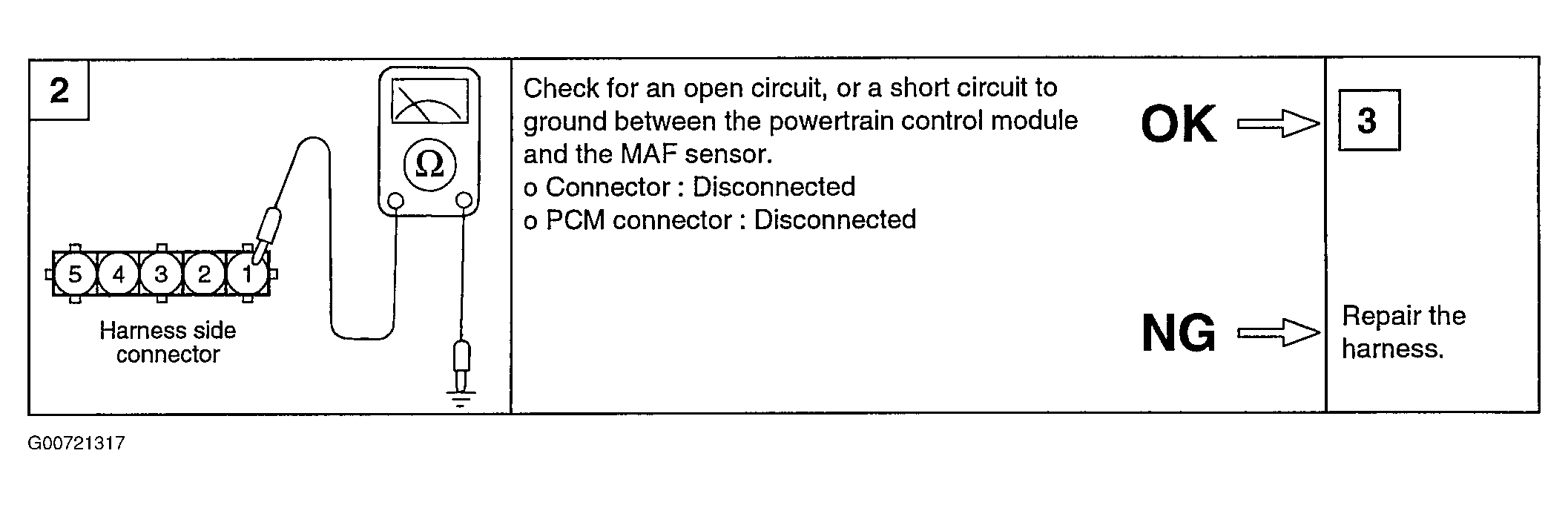

Fig 2: Checking IAT Harness (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

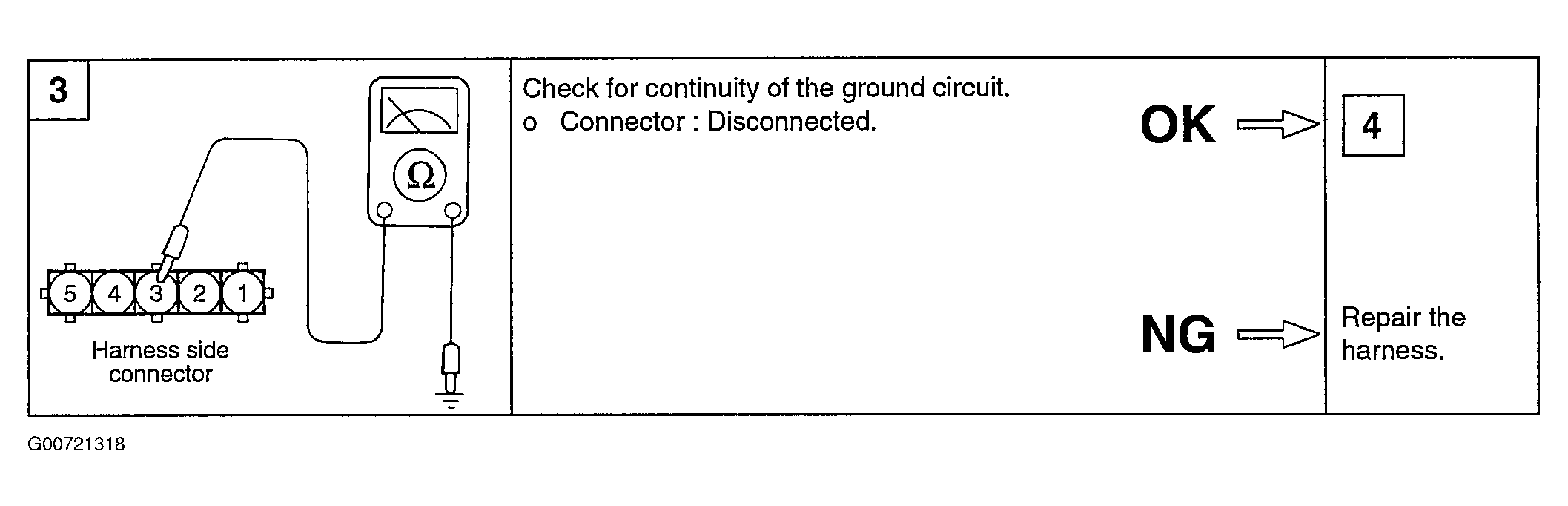

Fig 3: Checking IAT Harness (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Checking IAT Harness (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

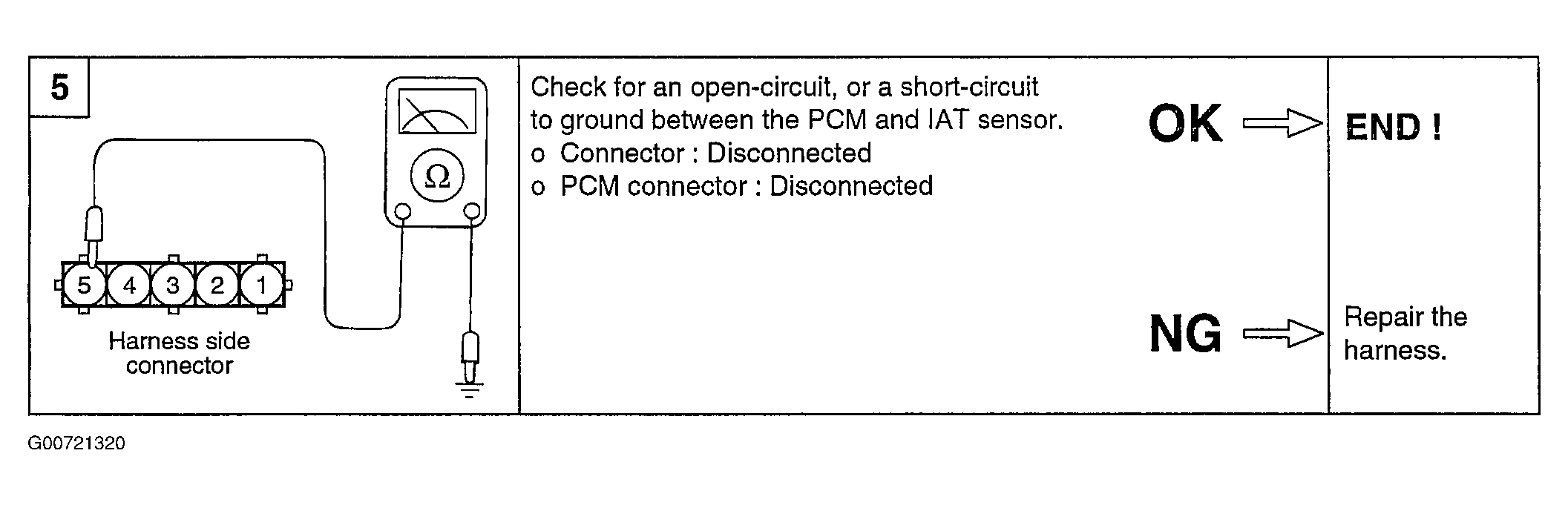

Fig 5: Checking IAT Harness (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
