Trouble Shooting Procedures

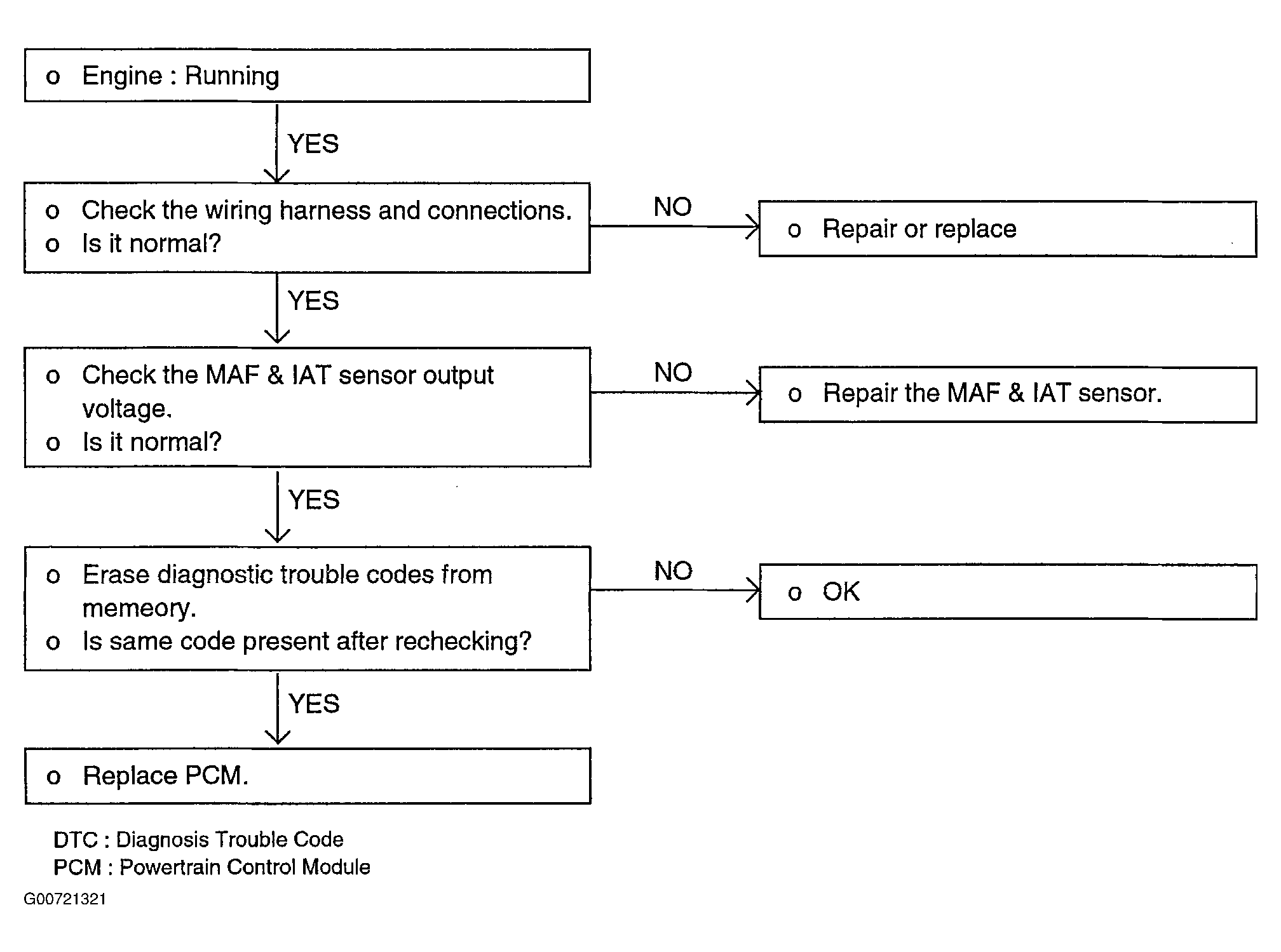

Fig 1: IAT Trouble Shooting Procedures Flow Chart
Courtesy of HYUNDAI MOTOR CO.
