Knock Sensor (KS)
›
Trouble Shooting Procedures
Trouble Shooting Procedures

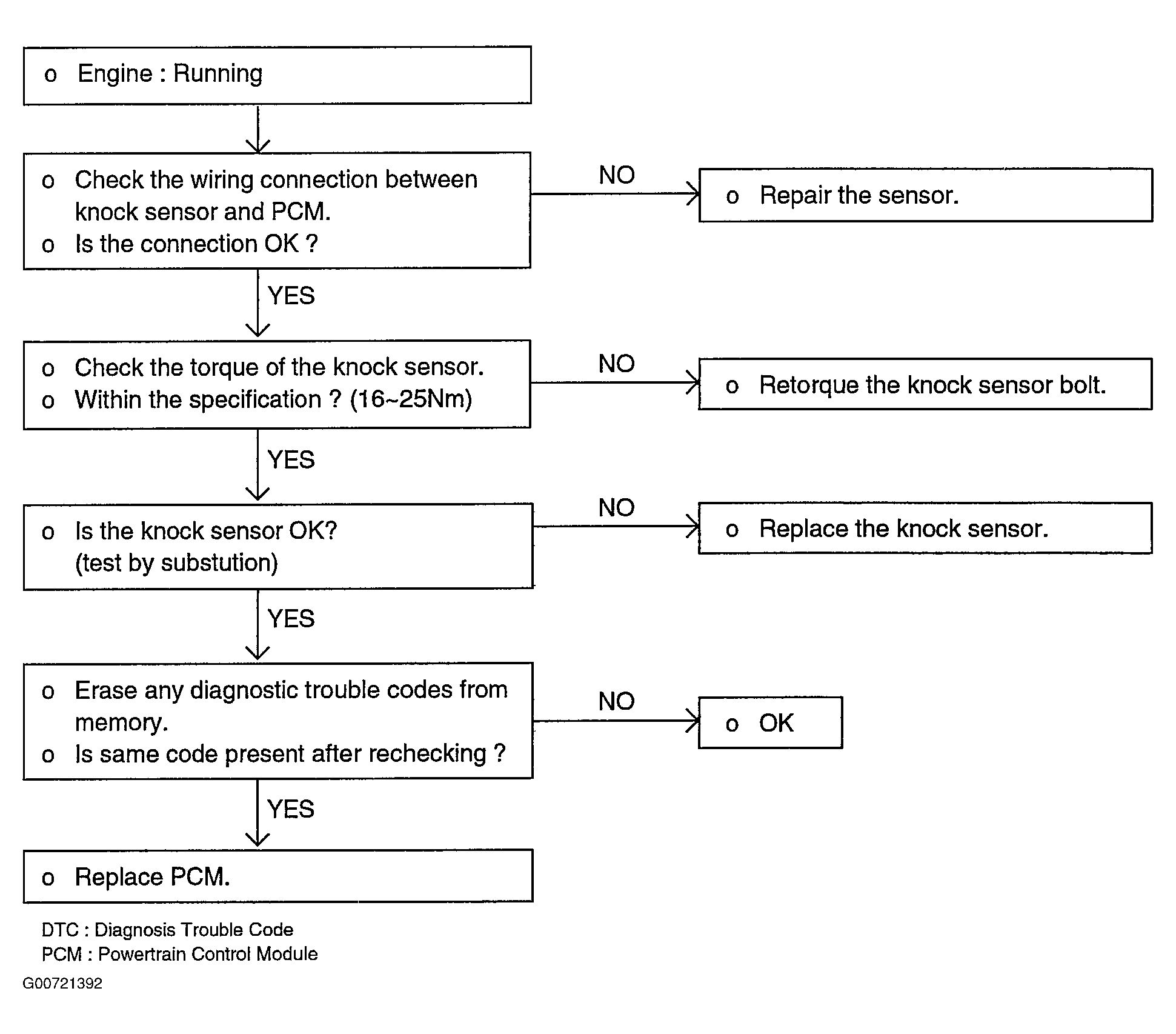

Fig 1: Knock Sensor Trouble Shooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
