Diagnostic Trouble Shooting Flow

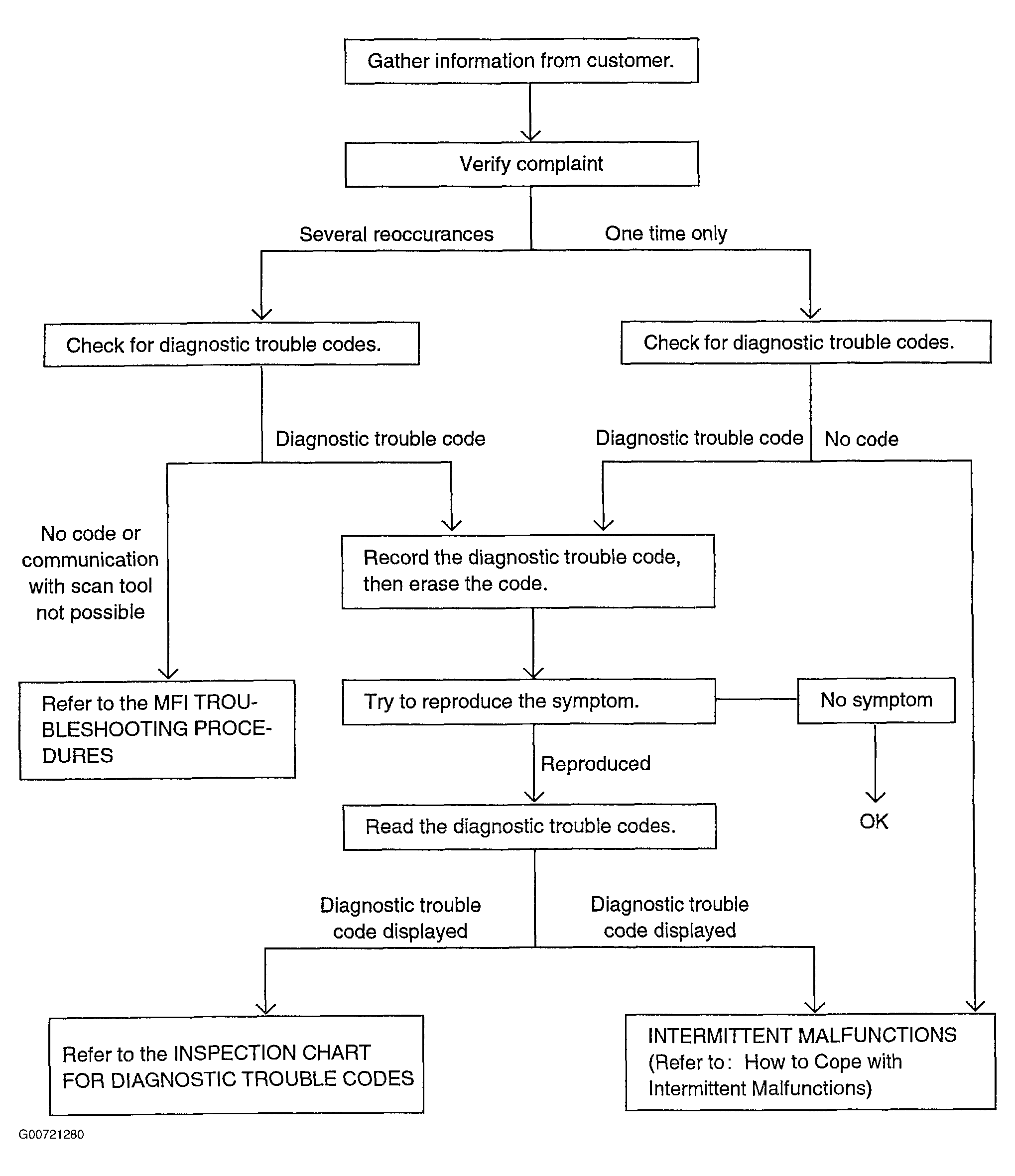

Fig 1: Diagnostic Trouble Shooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
