Positive Crankcase Ventilation (PCV) Valve: Operation

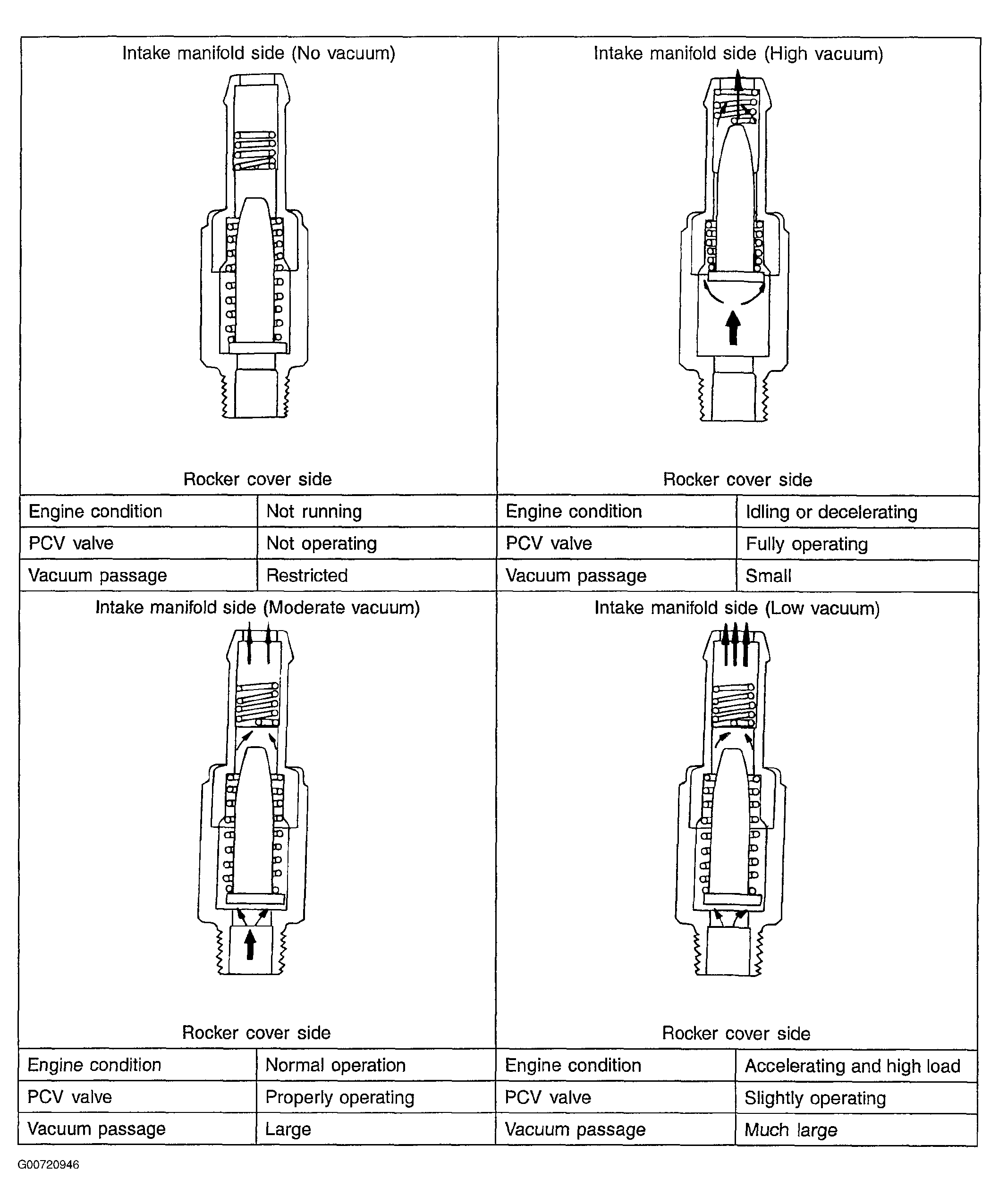

Fig 1: Identifying PCV Valve Operation
G00720946Courtesy of HYUNDAI MOTOR CO.
