Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inside wheel

    Tire size

    205\65 : 38.92° +/- 2°

    205\60 : 37.32° +/- 2°

    Outside wheel

    Tire size

    205\65 : 31.49°

    205\60 : 30.61°

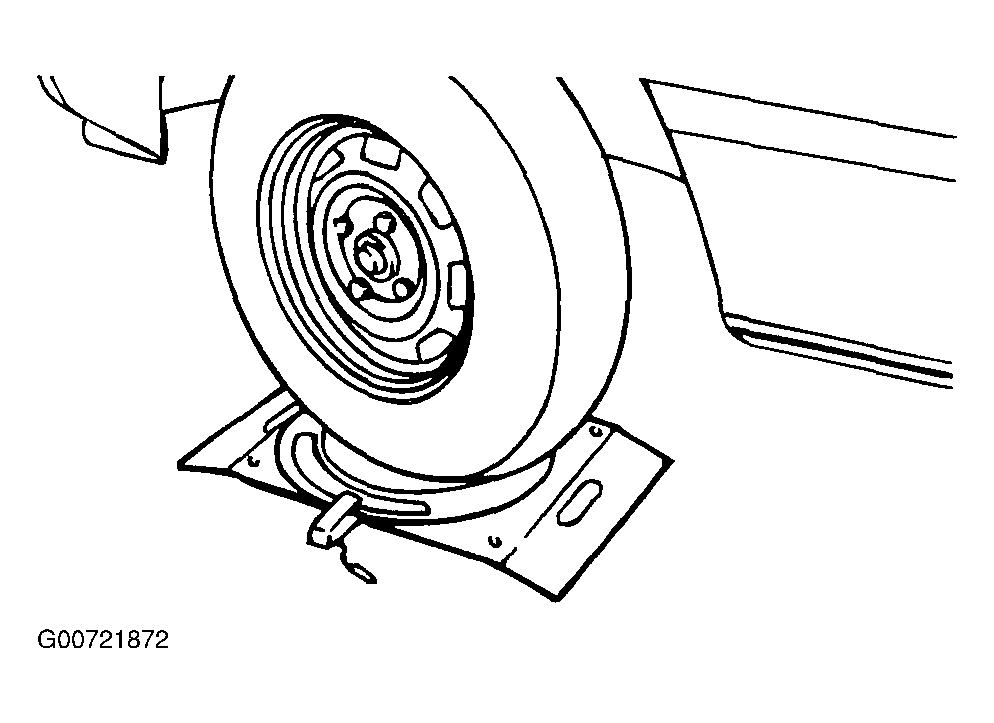

    Fig 1: Using Turning Radius Gauge To Measure Steering Angle
    G00721872Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value, adjust the toe and inspect again.
