Inspection Process For Trouble Symptoms
›
Inspection Procedure 1
Inspection Procedure 1

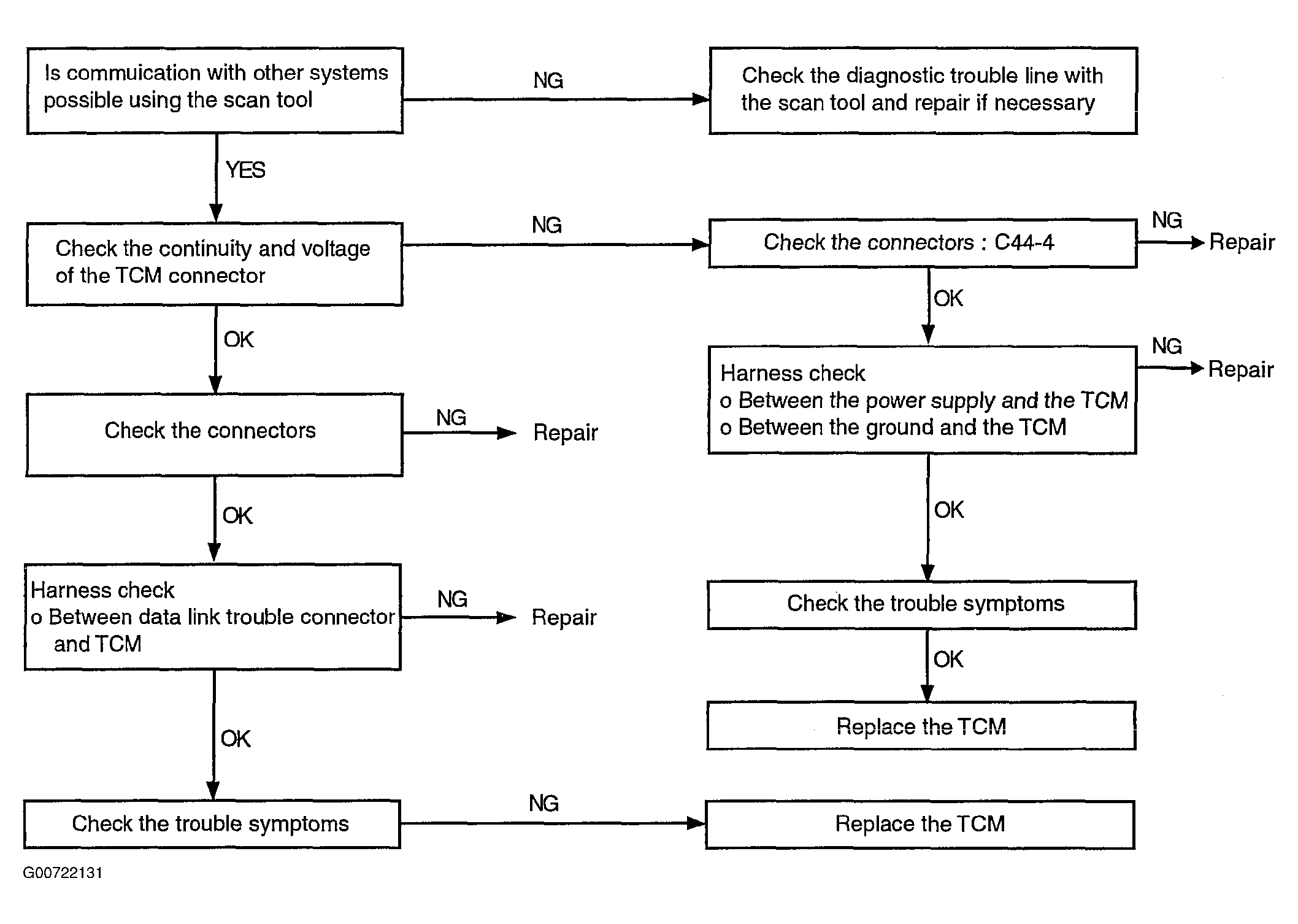

Fig 1: Inspection Procedure 1 (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

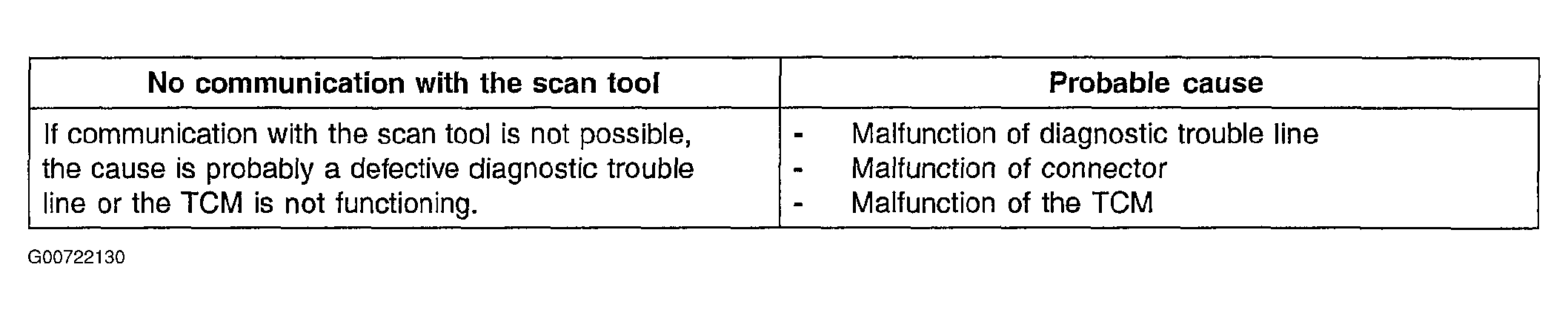

Fig 2: Inspection Procedure 1 (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
