Inspection Process For Trouble Symptoms
›
Inspection Procedure 15
Inspection Procedure 15

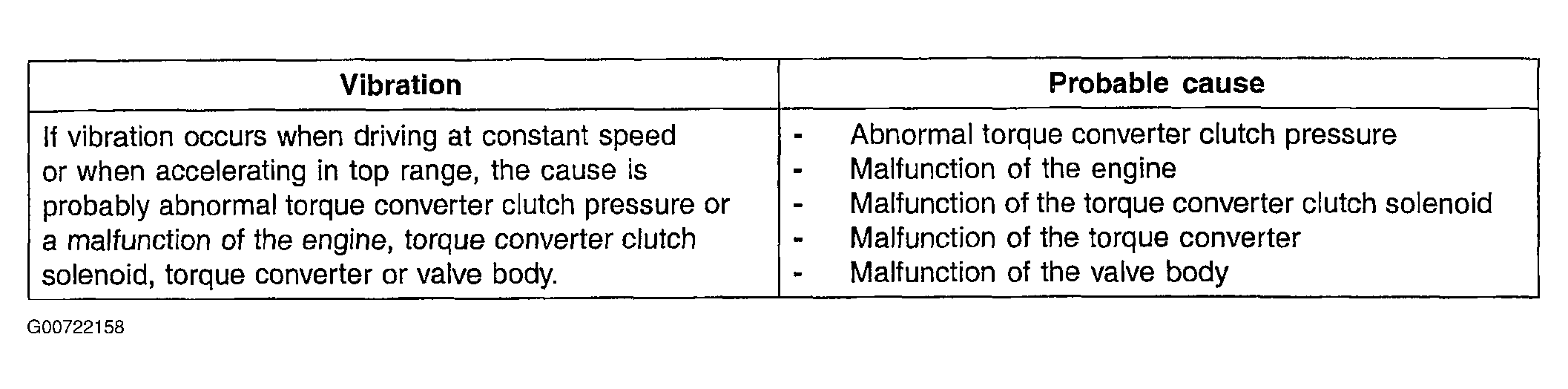

Fig 1: Inspection Procedure 15 (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

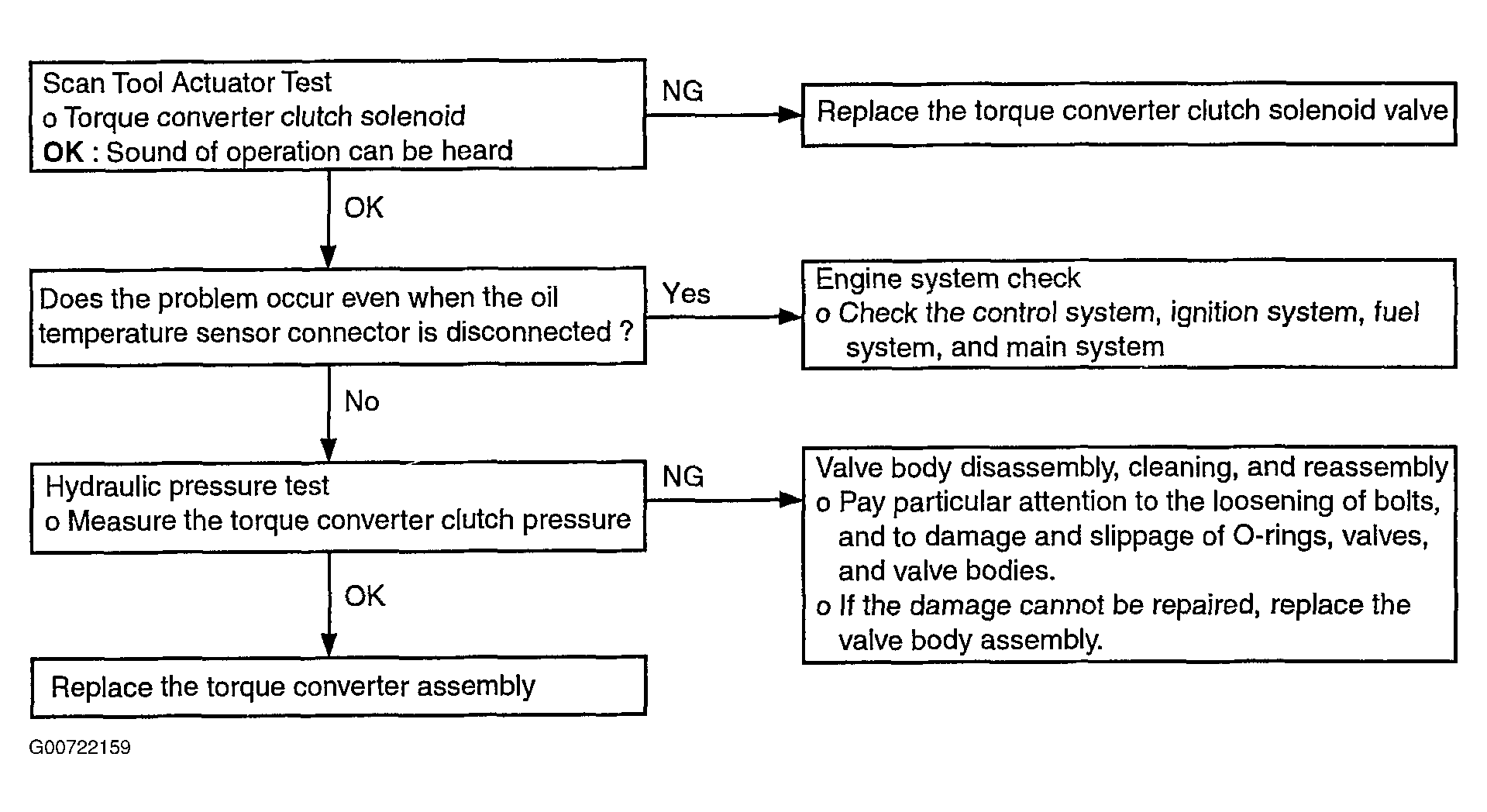

Fig 2: Inspection Procedure 15 (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
