Positive Crankcase Ventilation (PCV) Valve: Components

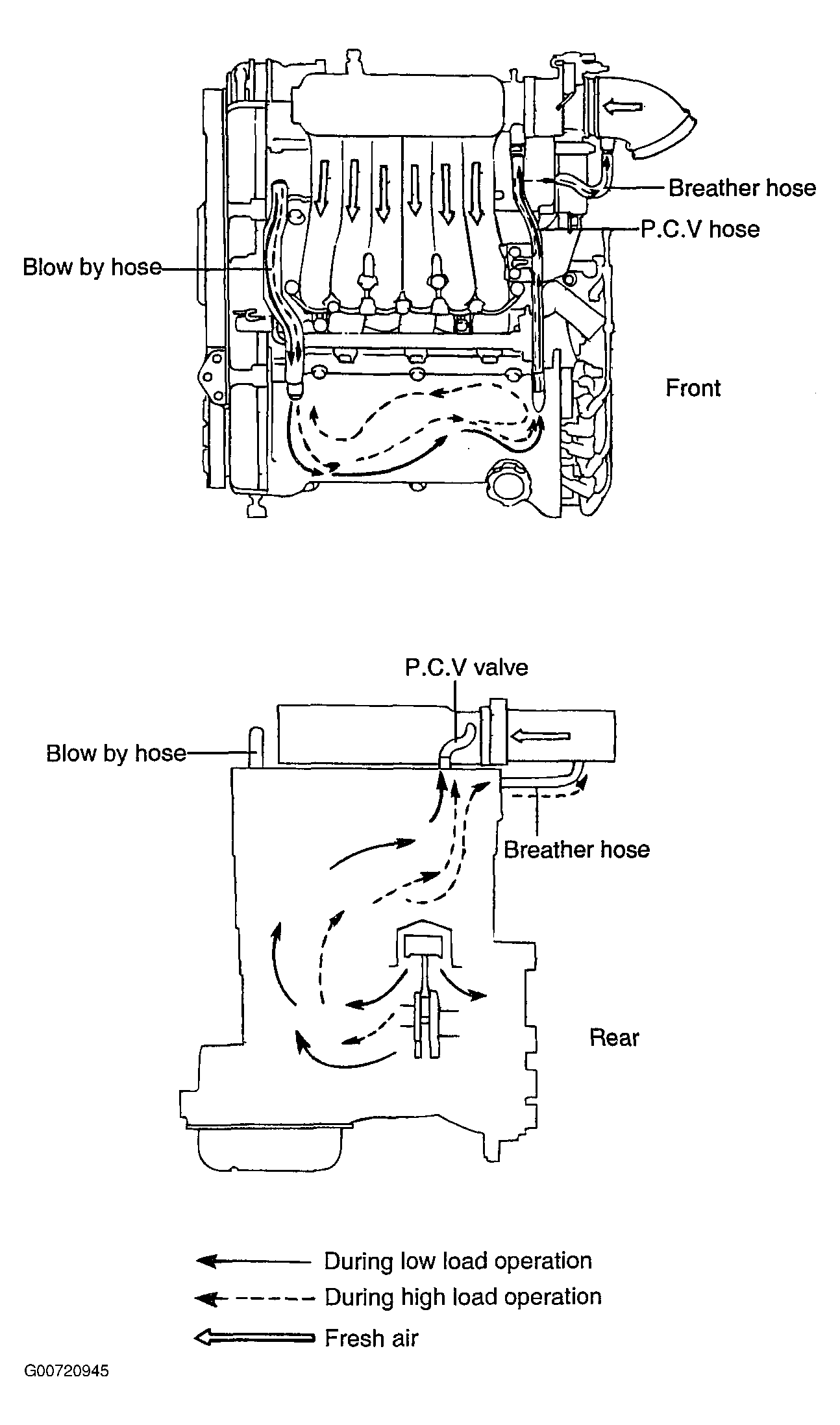

Fig 1: Identifying Positive Crankcase Ventilation (PCV) Valve Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
