DTC P0734
›
Inspection Procedure
Inspection Procedure

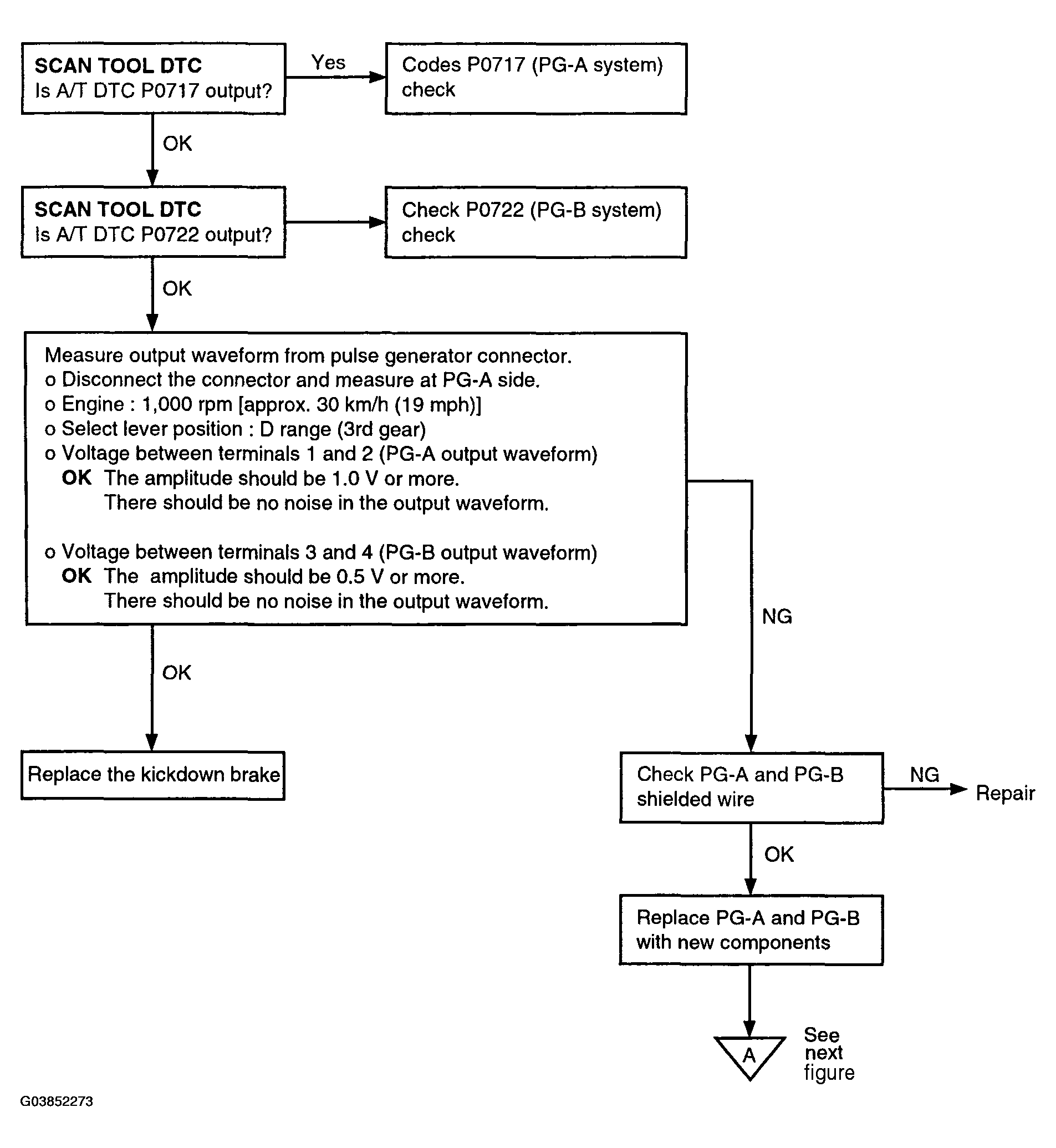

Fig 1: DTC P0734: Inspection Procedure Flow Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

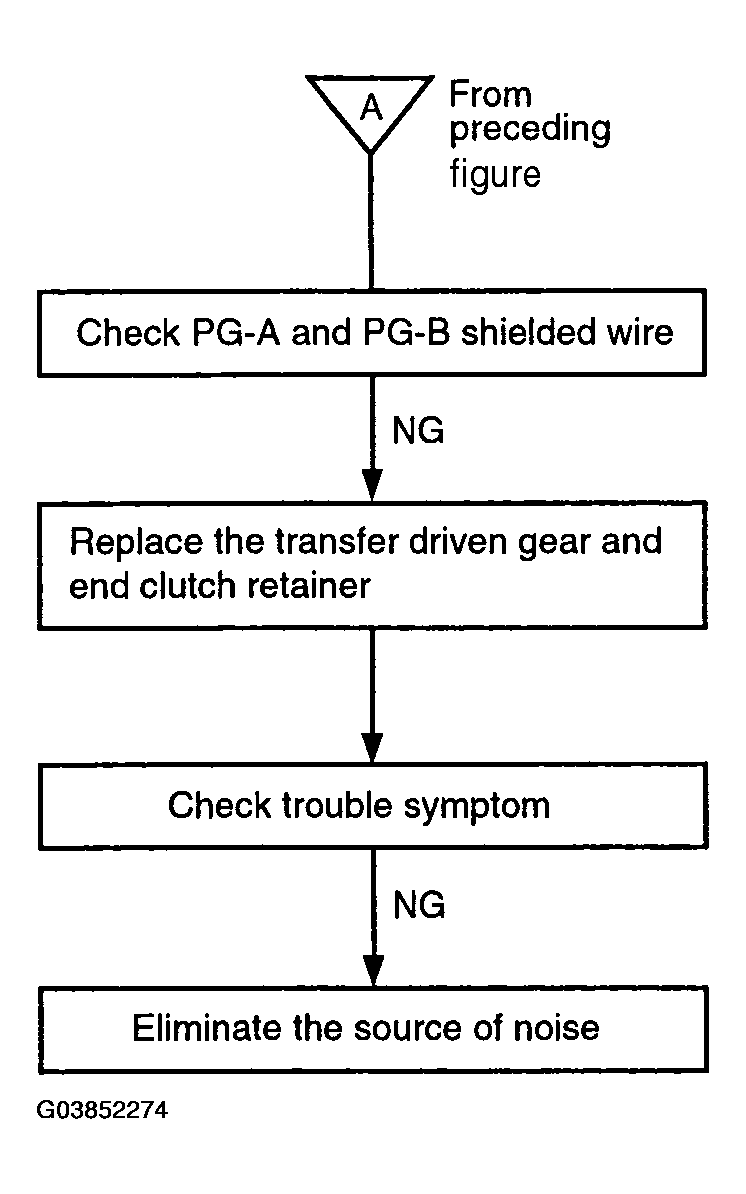

Fig 2: DTC P0734: Inspection Procedure Flow Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
