Circuit Diagram For Starting System: Notes

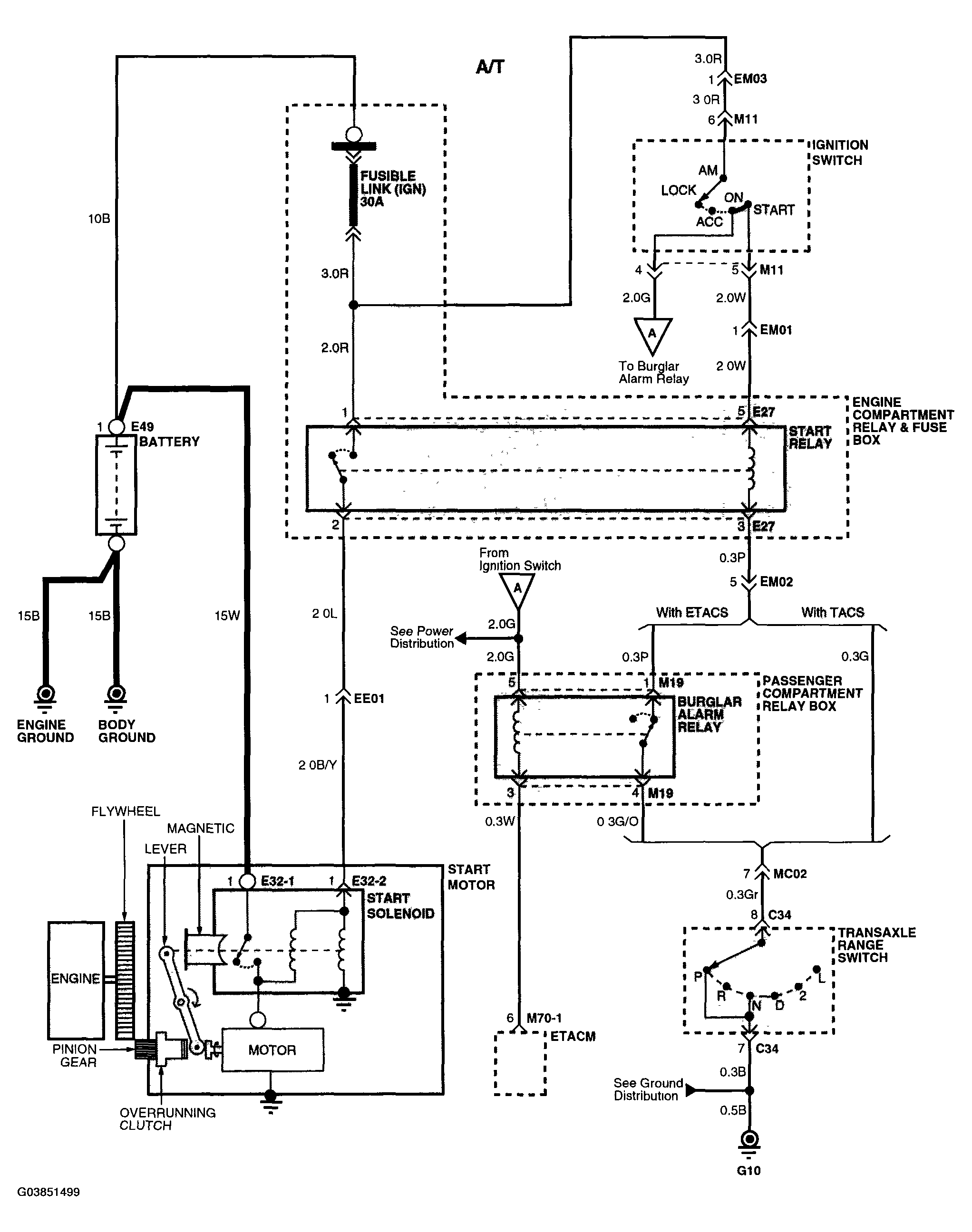

Fig 1: Circuit Diagram For Starting System (A/T)

Courtesy of HYUNDAI MOTOR CO.

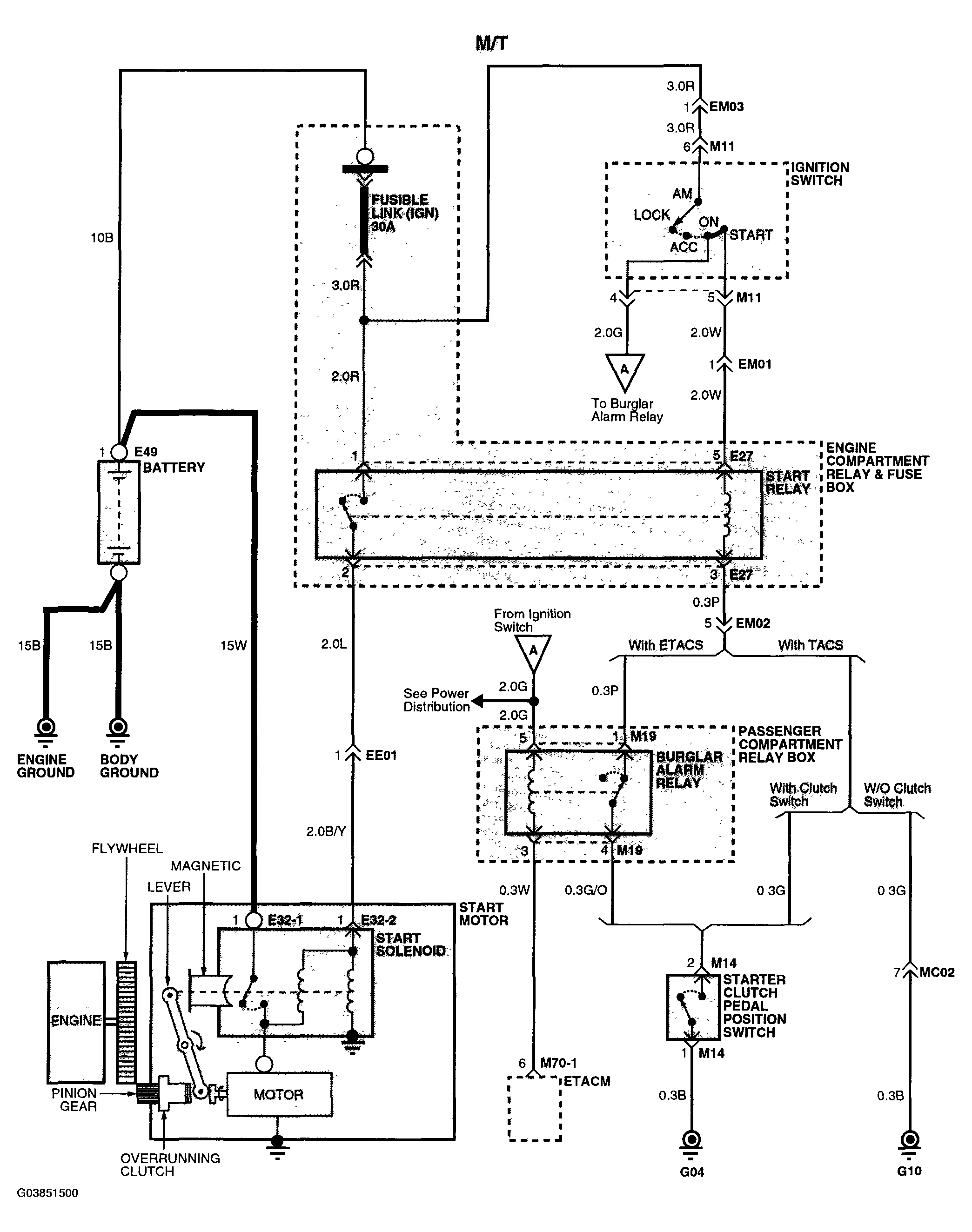

Fig 2: Circuit Diagram For Starting System (M/T)

Courtesy of HYUNDAI MOTOR CO.
