DTC P0733
›
Inspection Procedure
Inspection Procedure
Fig 1: DTC P0733: Inspection Procedure Flow Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

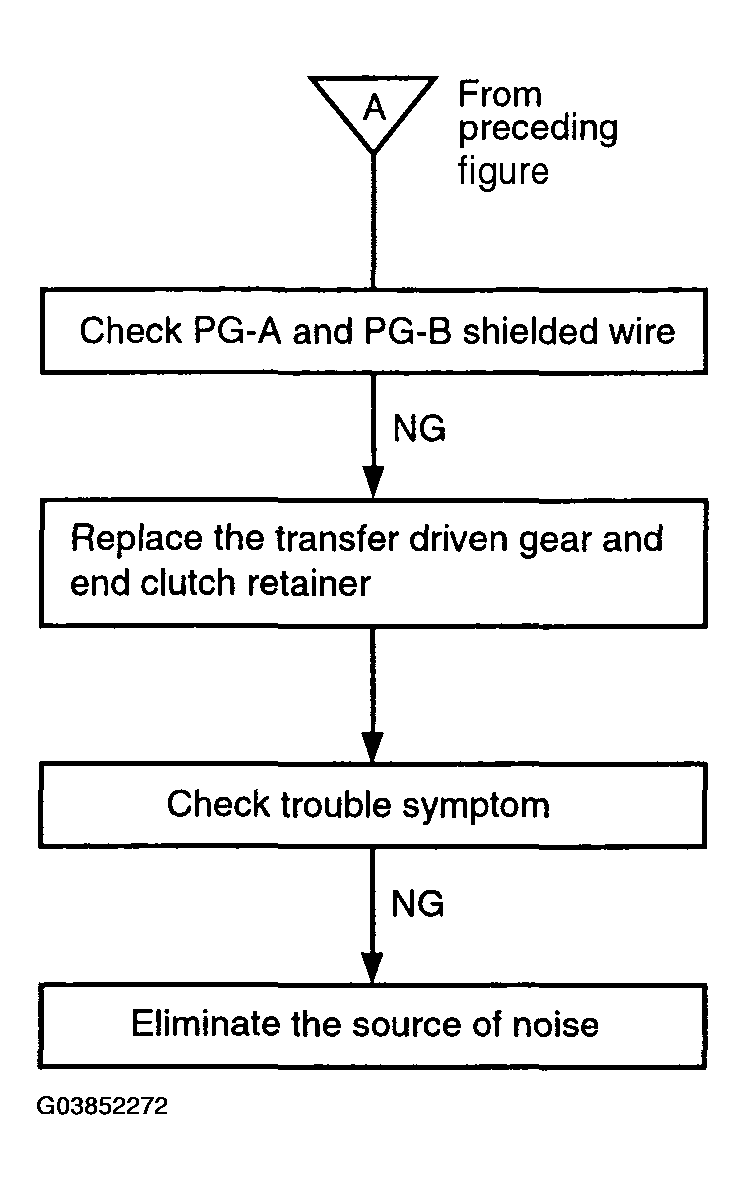

Fig 2: DTC P0733: Inspection Procedure Flow Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
