Home › Hyundai › 2005 › Accent GT, Standard › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Generator › Components

Charging System: Generator: Components

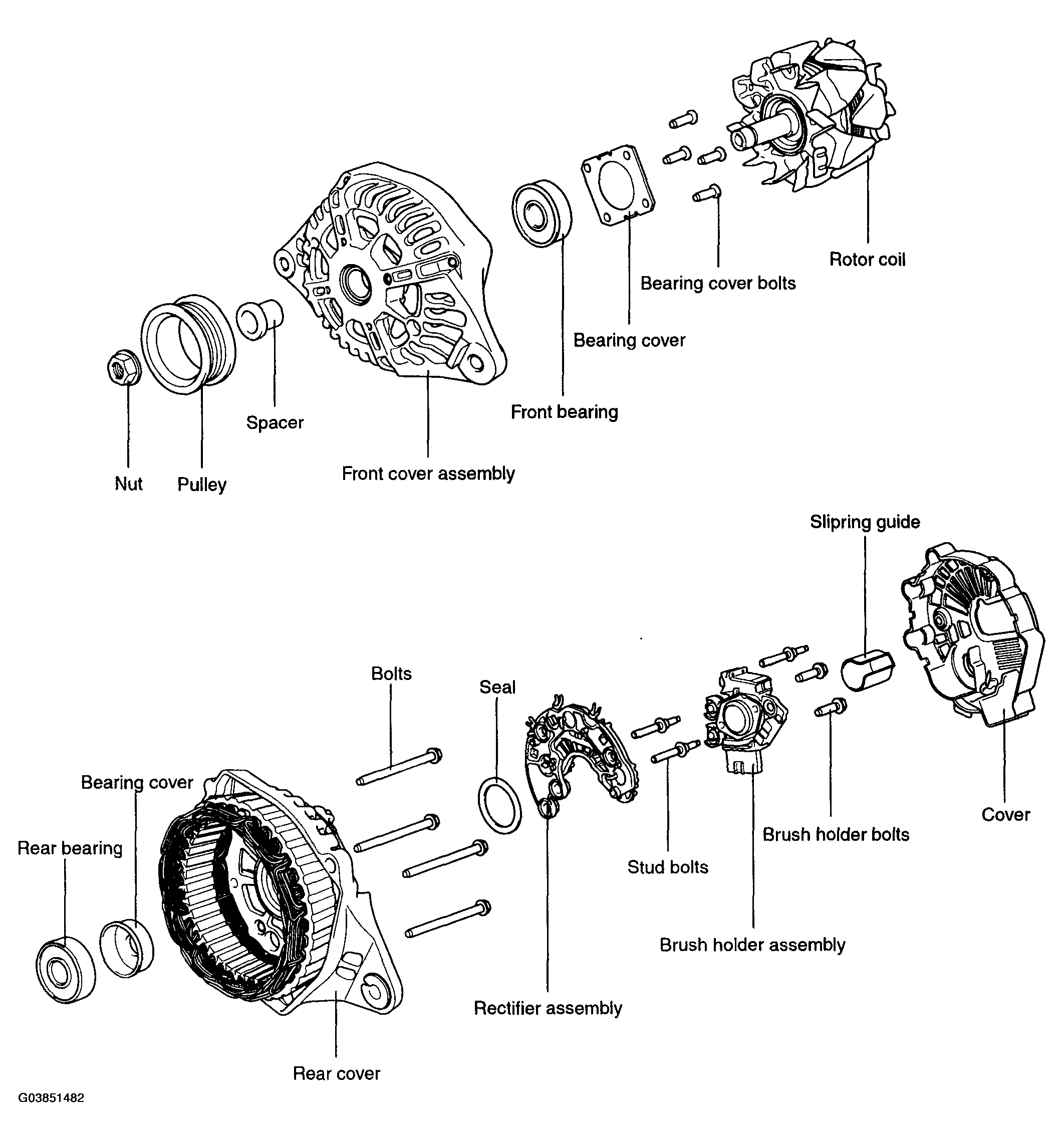

Fig 1: Exploded View Of Generator
G03851482Courtesy of HYUNDAI MOTOR CO.
