Ignition Coil

  1. Disconnect the spark plug cable and connector.
  2. Remove the ignition coil (A).
  3. Installation is the reverse of removal.

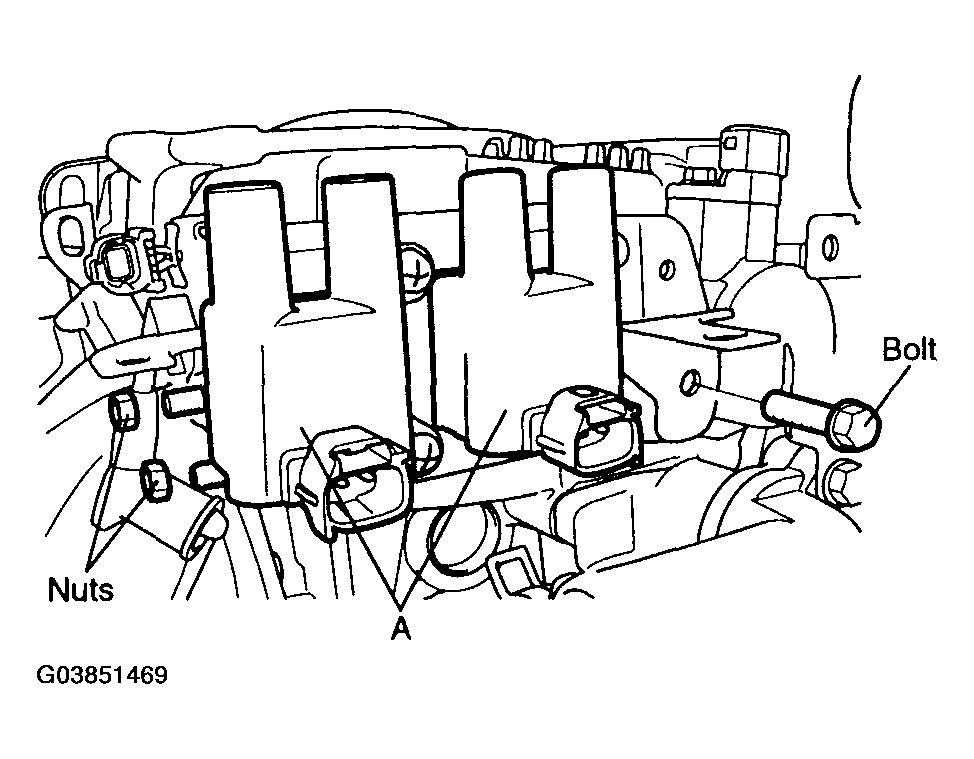

    Fig 1: Removing Ignition Coil (A)
    G03851469Courtesy of HYUNDAI MOTOR CO.
