Troubleshooting (A/T): Notes

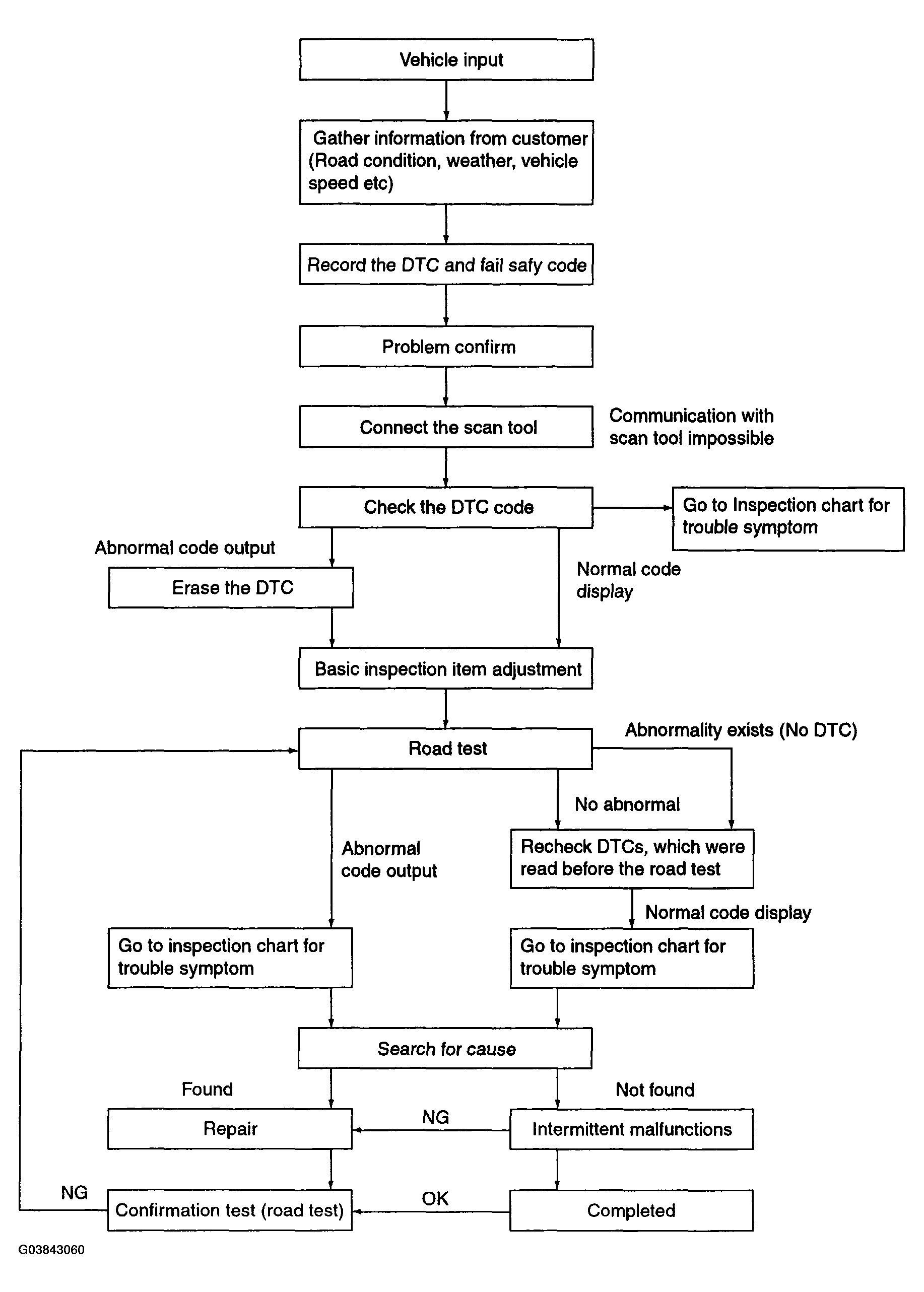

Fig 1: Automatic Transaxle (F4A42) Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
