DTC P0300: Random/Multiple Cylinder Misfire Detected
›
Schematic Diagram
Schematic Diagram

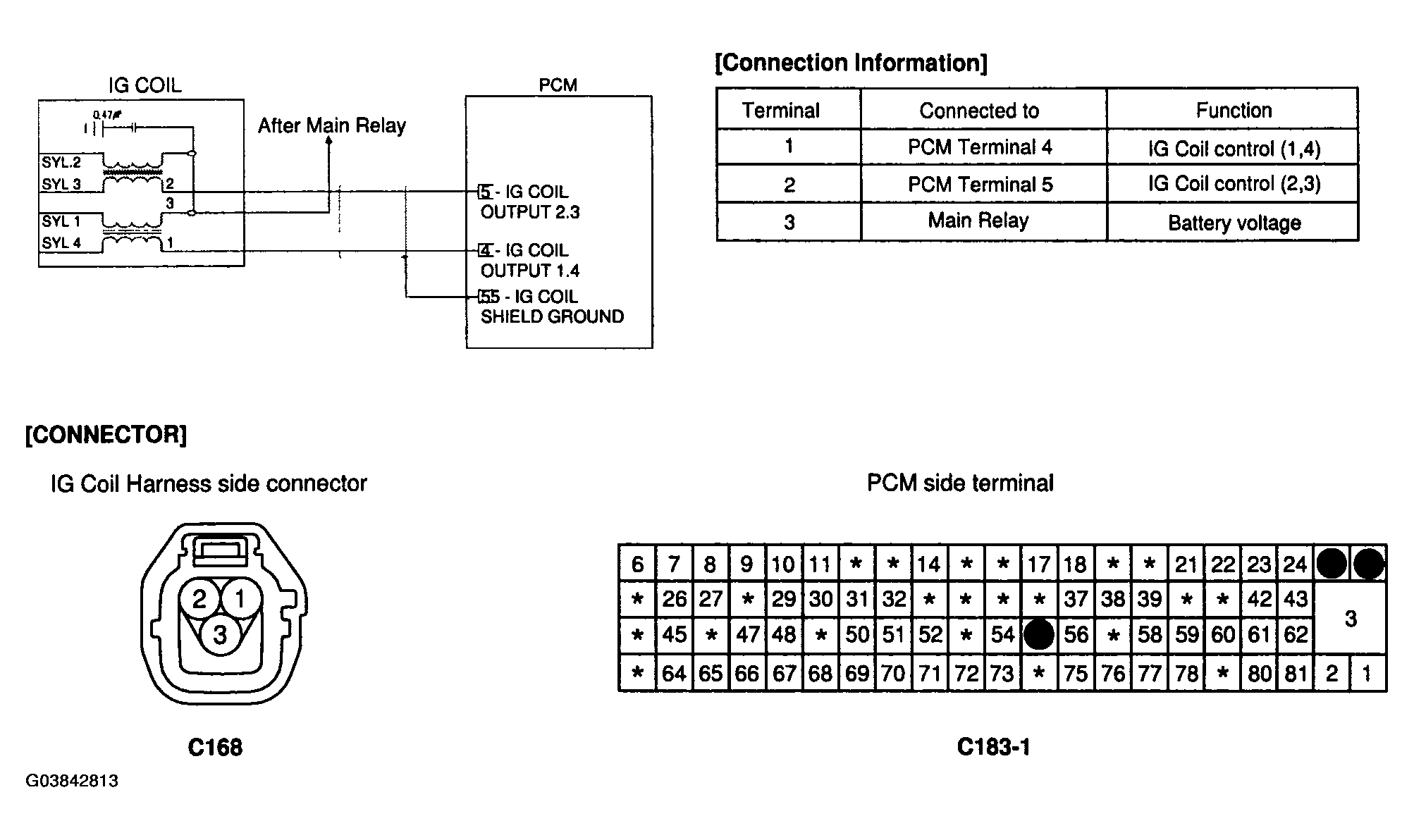

Fig 1: Random/Multiple Cylinder Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
