Manual Transaxle Shift Control: Removal

Remove the shift knob.
Remove the console assembly.
Remove the cotter pins and clips (shift lever side).

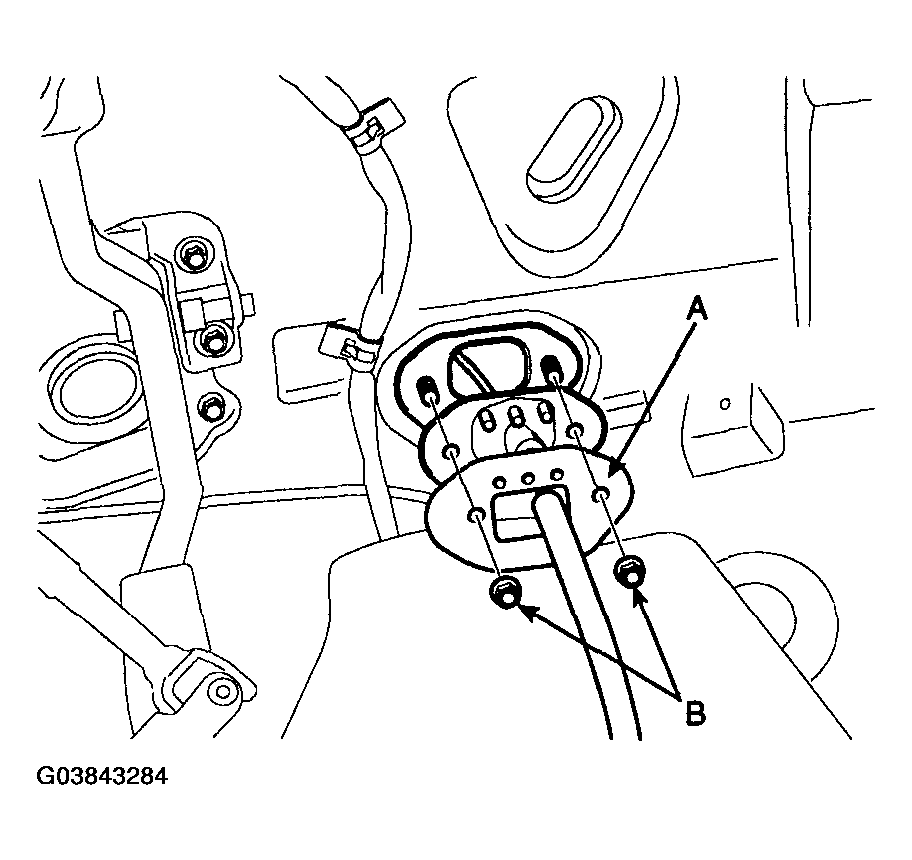

Remove the retainer(A) and bolts(B).

Fig 1: Removing Retainer And Bolts
Courtesy of HYUNDAI MOTOR CO.

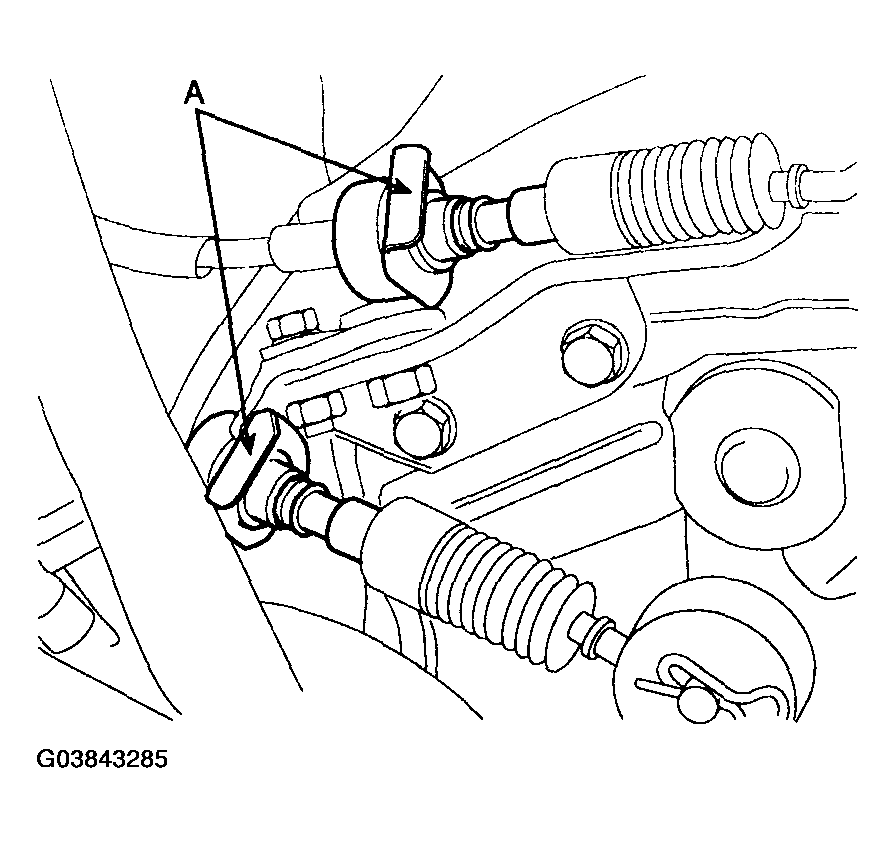

Remove the cotter pins and clips(A) (Transaxle side).

Fig 2: Removing Cotter Pins And Clips
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable and selector cable.
