Hyundai
›
2005
›
Elantra GLS, 4D Sedan, Standard
›
Repair and Diagnosis
›
Transmission
›
Manual Transaxle System
›
Manual Transaxle
›
Components
Manual Transaxle: Components

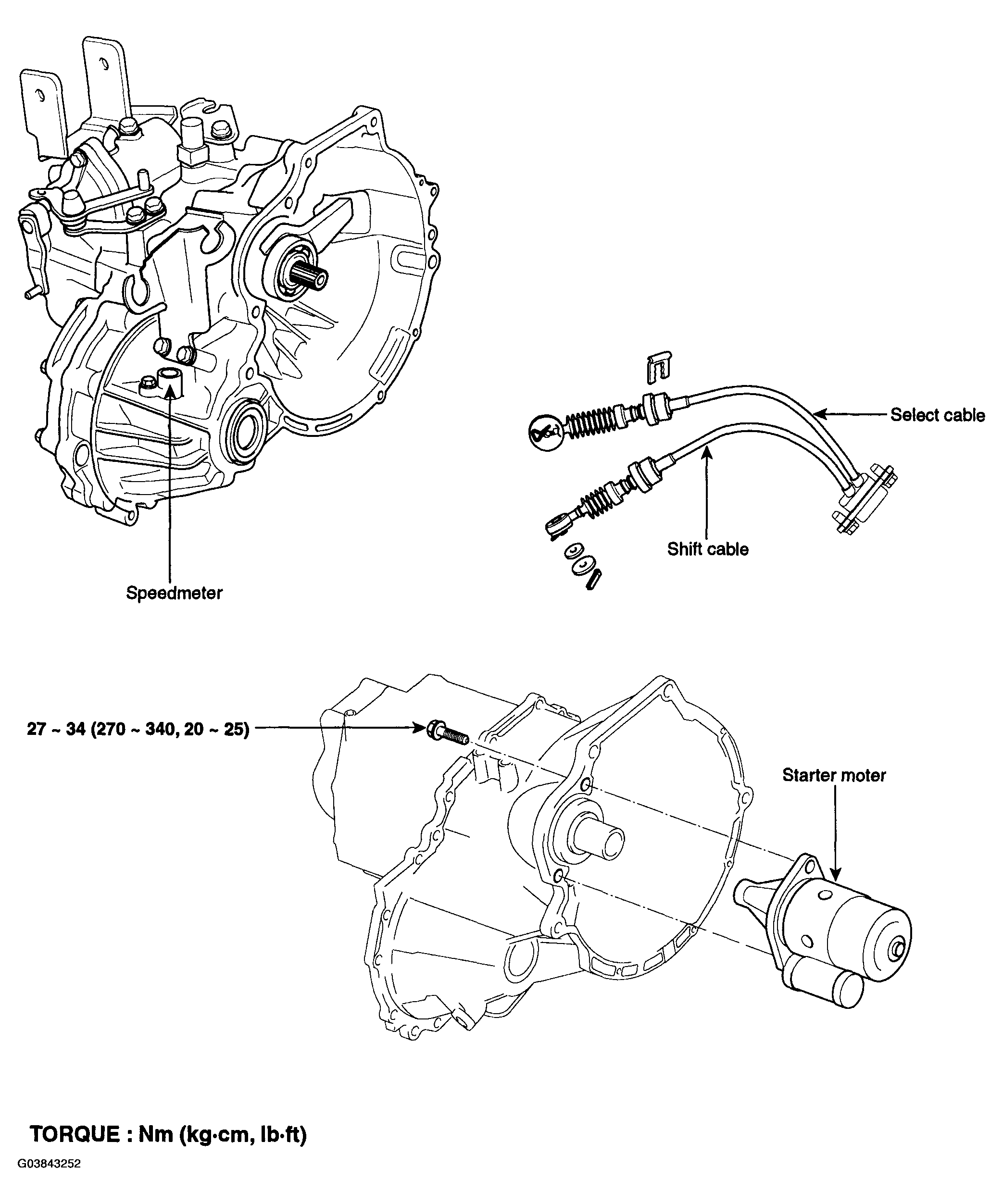

Fig 1: Starter Motor And Select Cable With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
