Signal Circuit Inspection

Ignition "OFF".
Measure resistance between terminal 1 of the sensor harness connector and chassis ground.
Specification : Infinite

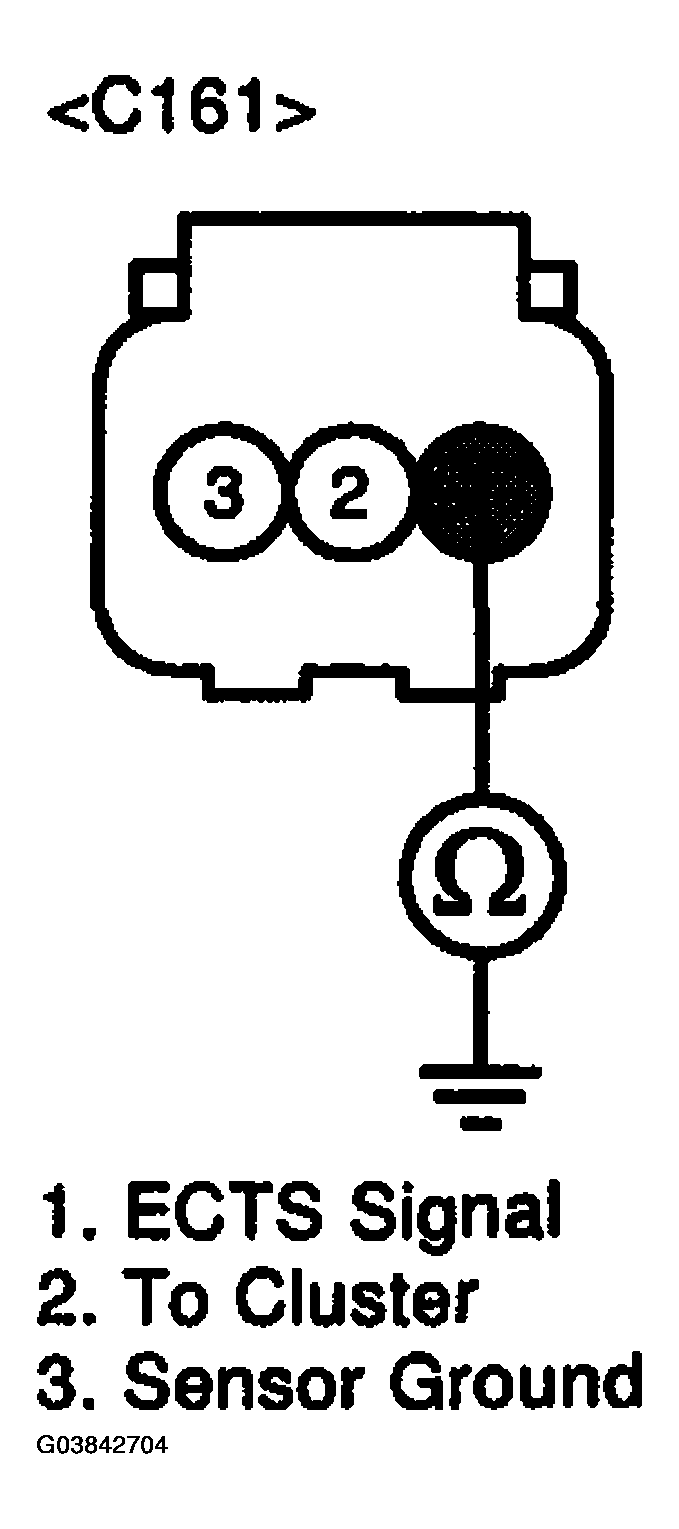

Fig 1: Measuring Resistance Between Terminal 1 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to TERMINAL AND CONNECTOR INSPECTION procedure.
NO
- Repair short to ground in harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
