Signal Circuit Inspection
- Ignition "OFF"
- Disconnect OTS connector.

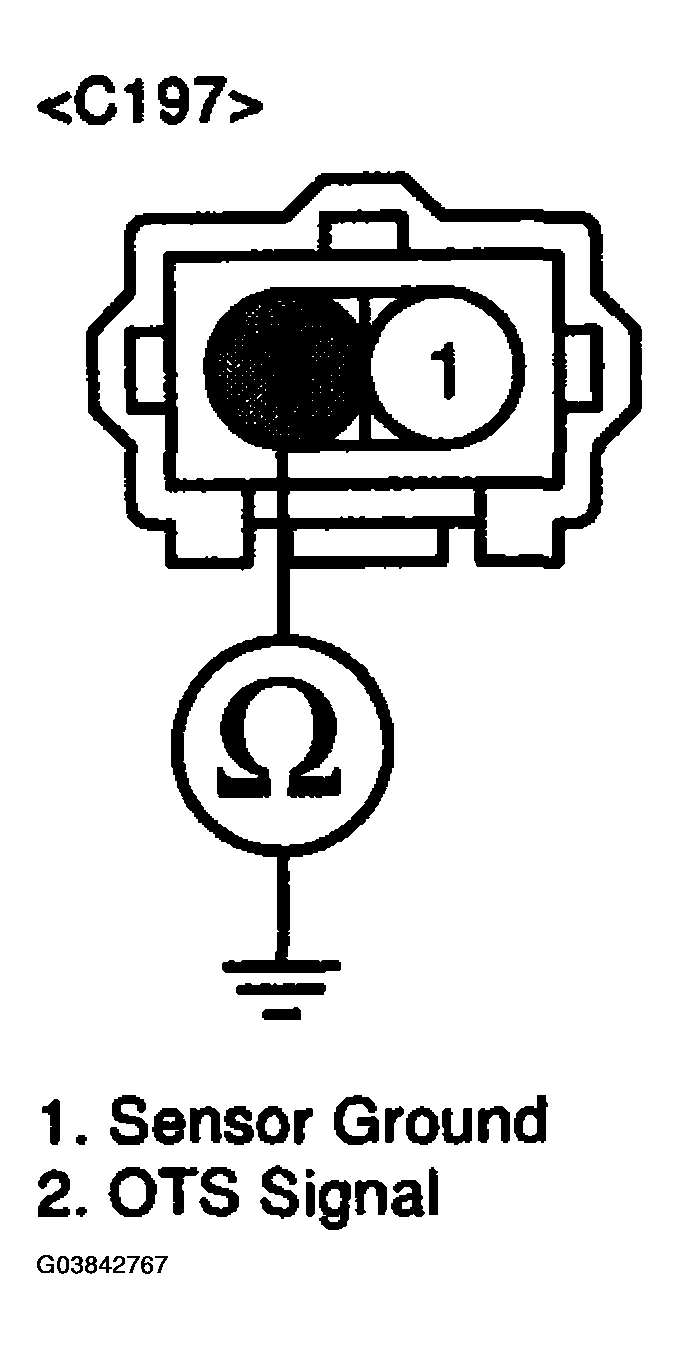

- Measure resistance between terminal 2 of the sensor harness connector and chassis ground.
Specification : Infinite
- Is resistance within the specification?
YES
- Go to TERMINAL AND CONNECTOR INSPECTION procedure.
NO
- Repair short to ground in harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
