Automatic Transaxle Shift Control: Components

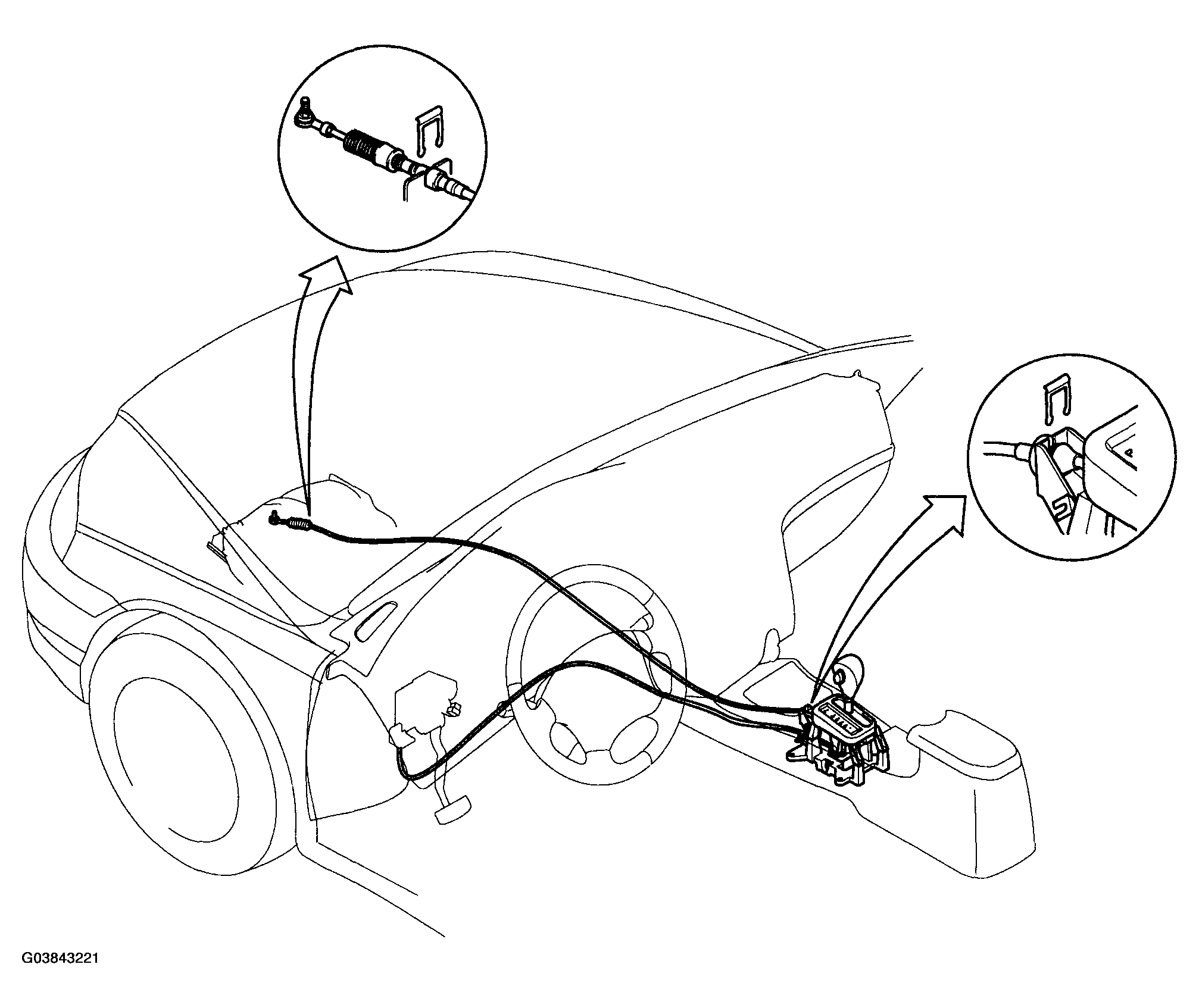

Fig 1: Identifying Automatic Transaxle Shift Control Components

Courtesy of HYUNDAI MOTOR CO.

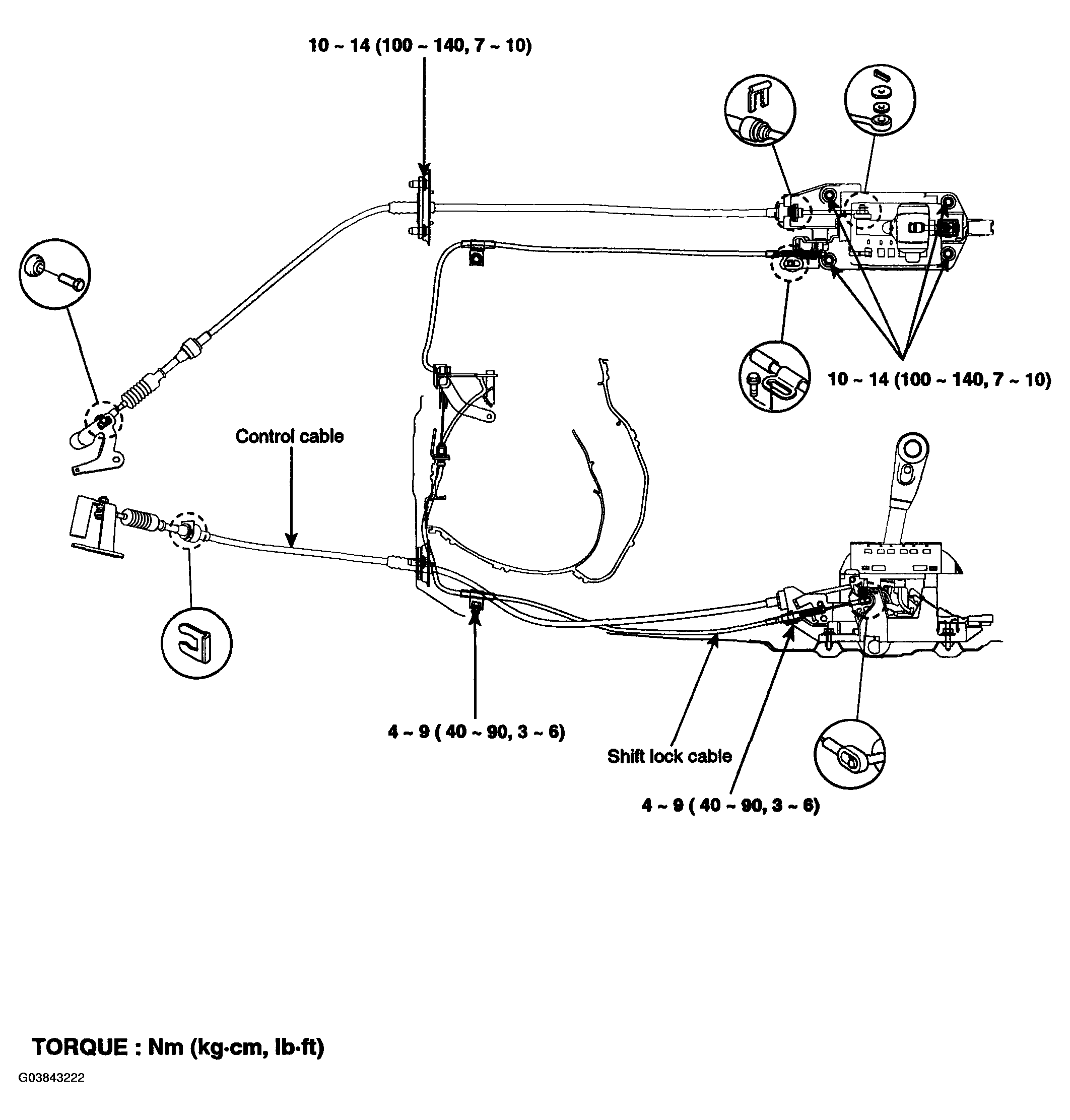

Fig 2: Automatic Transaxle Shift Control Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR CO.
