Automatic Transaxle Shift Control: Removal

Remove the console(A) mounting screws (6EA).

Fig 1: Removing Console Mounting Screws
Courtesy of HYUNDAI MOTOR CO.

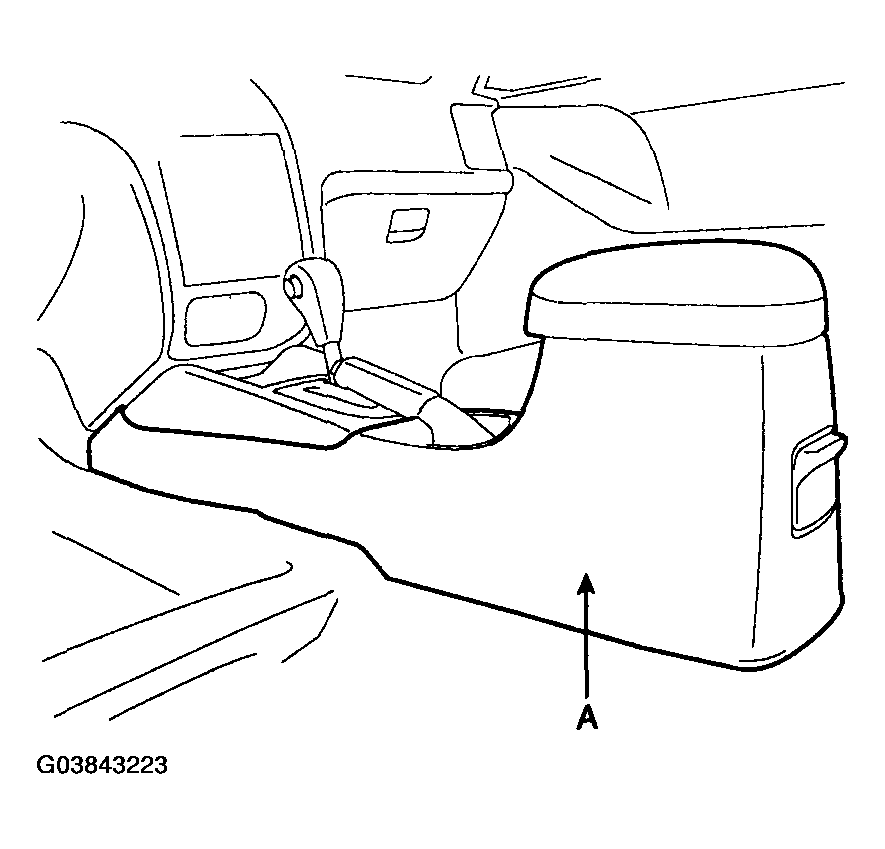

Remove the console(A).

Fig 2: Removing Console
Courtesy of HYUNDAI MOTOR CO.

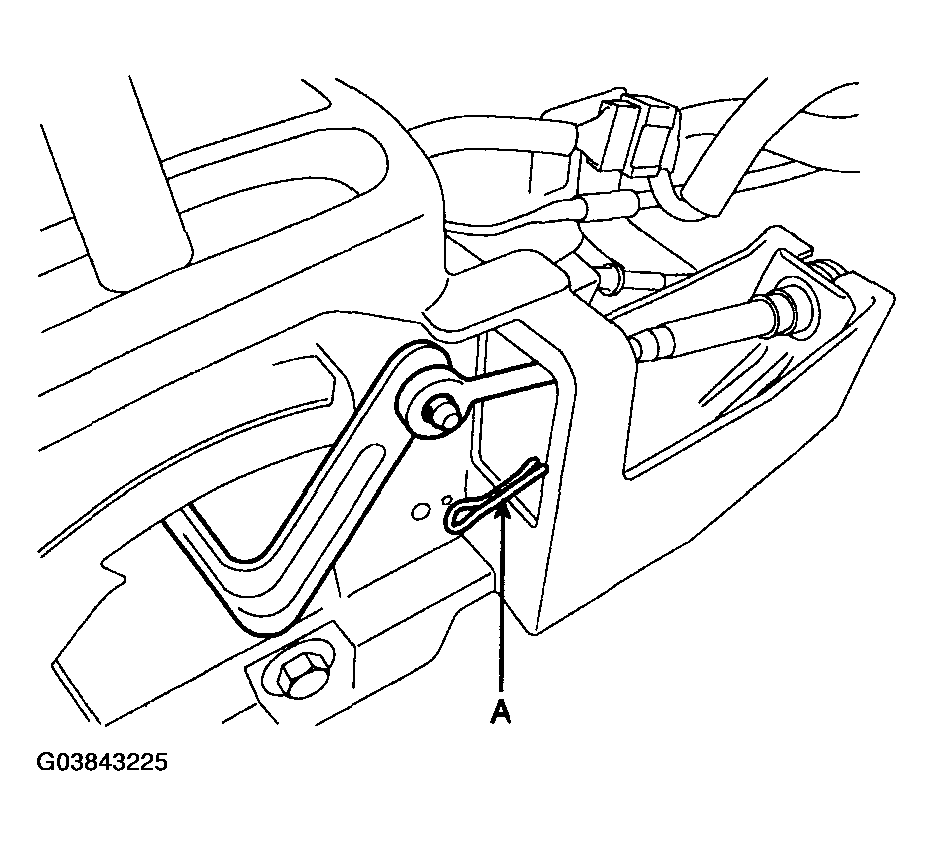

Remove the control cable pin(A).

Fig 3: Removing Control Cable Pin
Courtesy of HYUNDAI MOTOR CO.

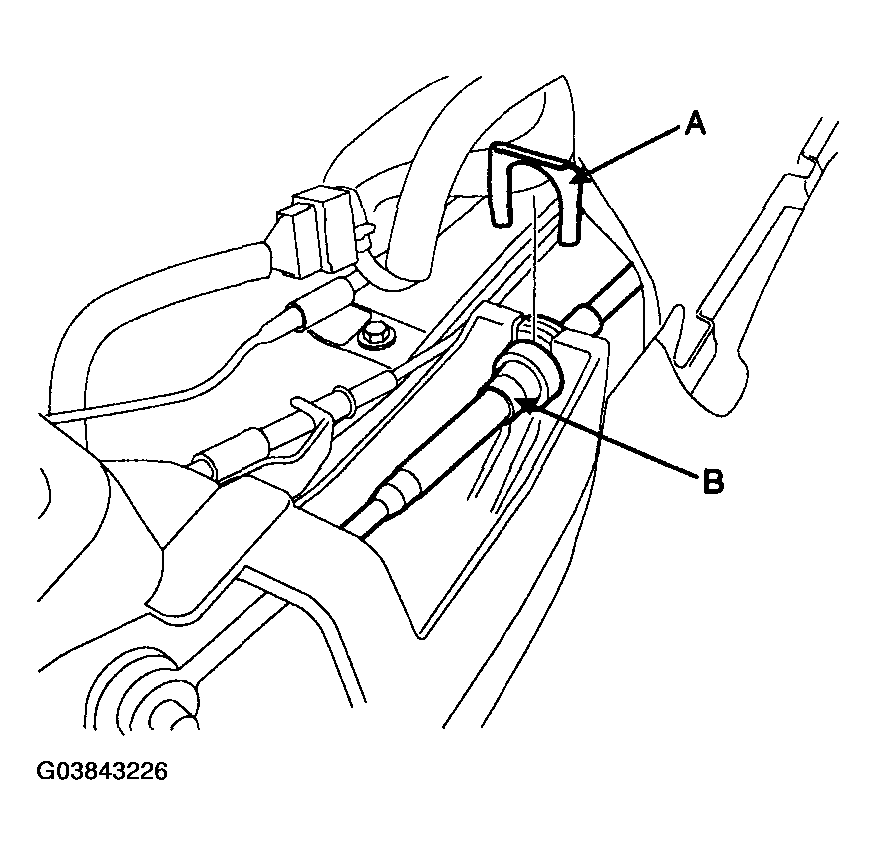

Remove the clip(A) of the control cable(B) by pressing it with the driver.

Fig 4: Removing Clip Of Control Cable
Courtesy of HYUNDAI MOTOR CO.

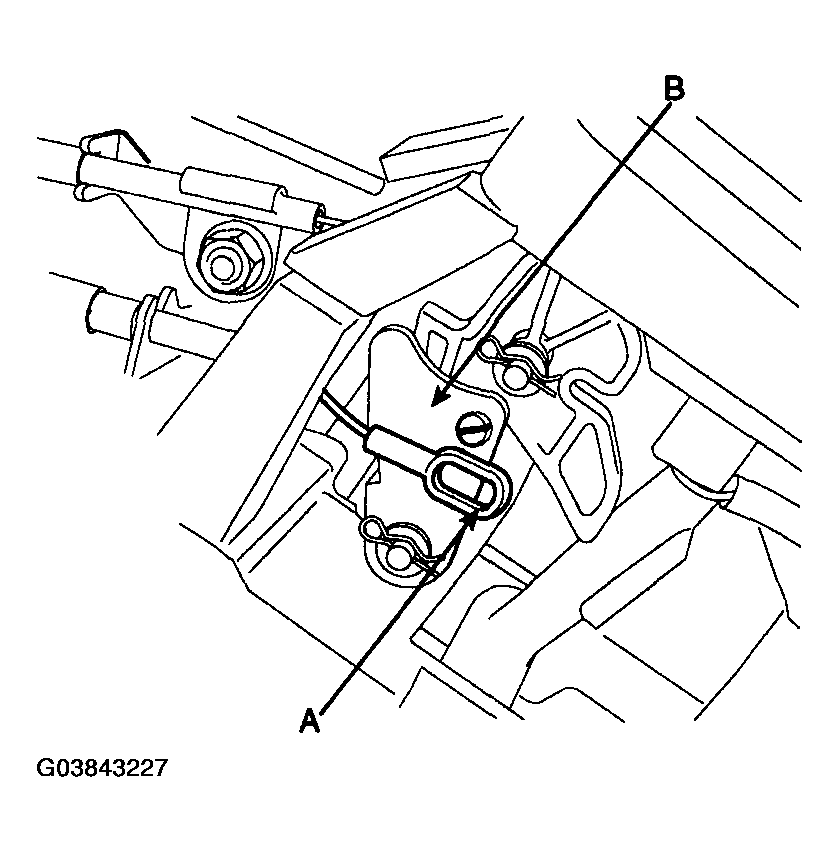

Separate the shift lock cable(A) from the P-lock cam(B).

Fig 5: Separating Shift Lock Cable From P-Lock Cam
Courtesy of HYUNDAI MOTOR CO.

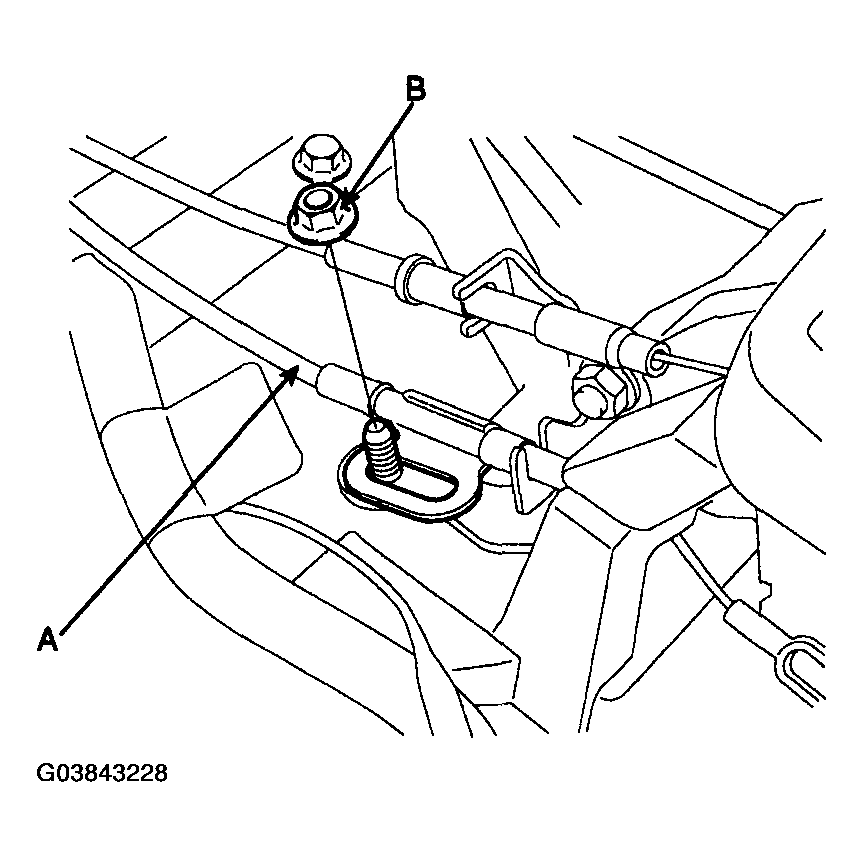

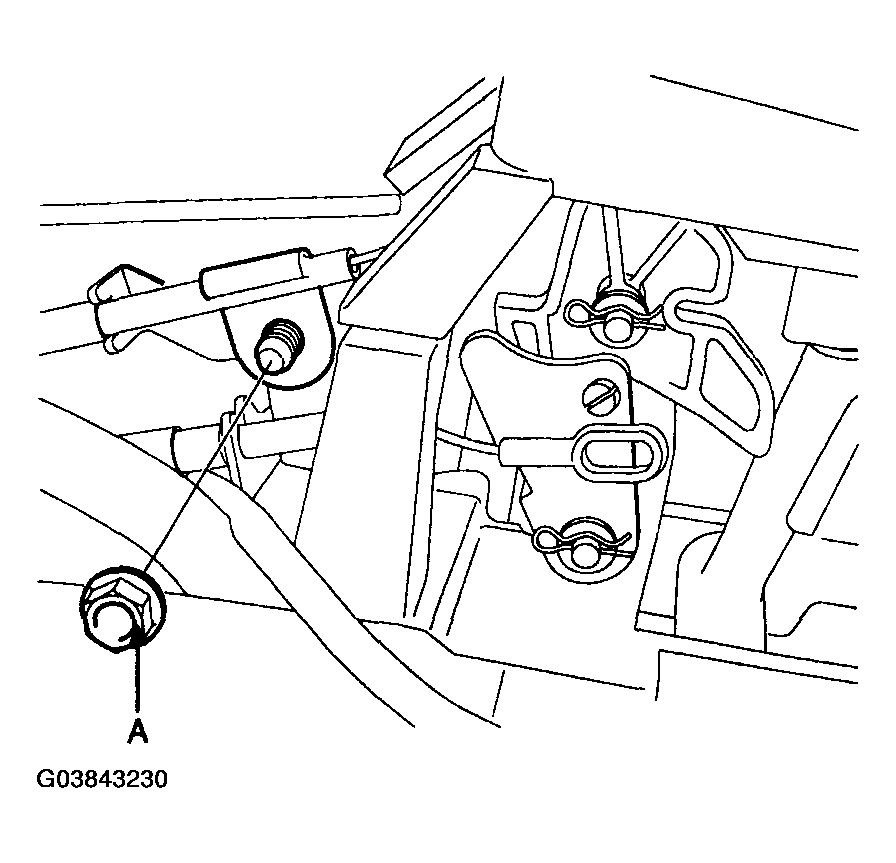

Remove the shift lock cable(A) mounting nut(B).

Fig 6: Removing Shift Lock Cable Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

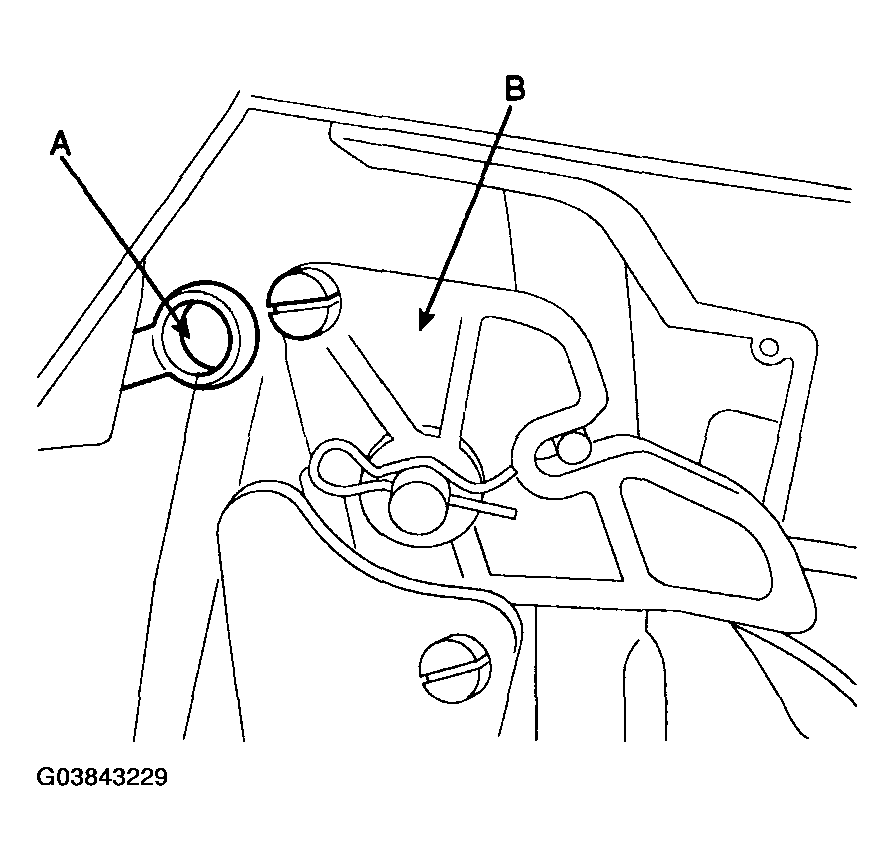

Remove the inter lock cable(A) from the key-lock cam(B).

Fig 7: Removing Inter Lock Cable From Key-Lock Cam
Courtesy of HYUNDAI MOTOR CO.
Remove the inter lock cable mounting bolt(A).

Fig 8: Removing Inter Lock Cable Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

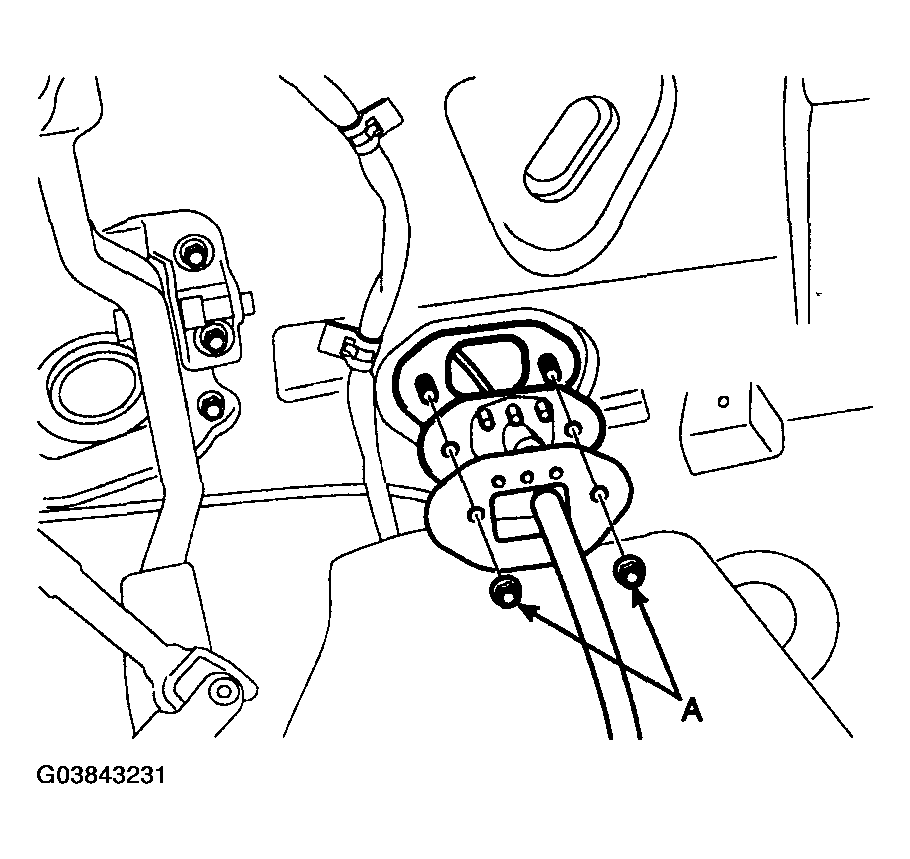

Remove the mounting bolts(A) of the cable of the lower dashboard side to remove the cable.

Fig 9: Removing Mounting Bolts Of Cable
Courtesy of HYUNDAI MOTOR CO.

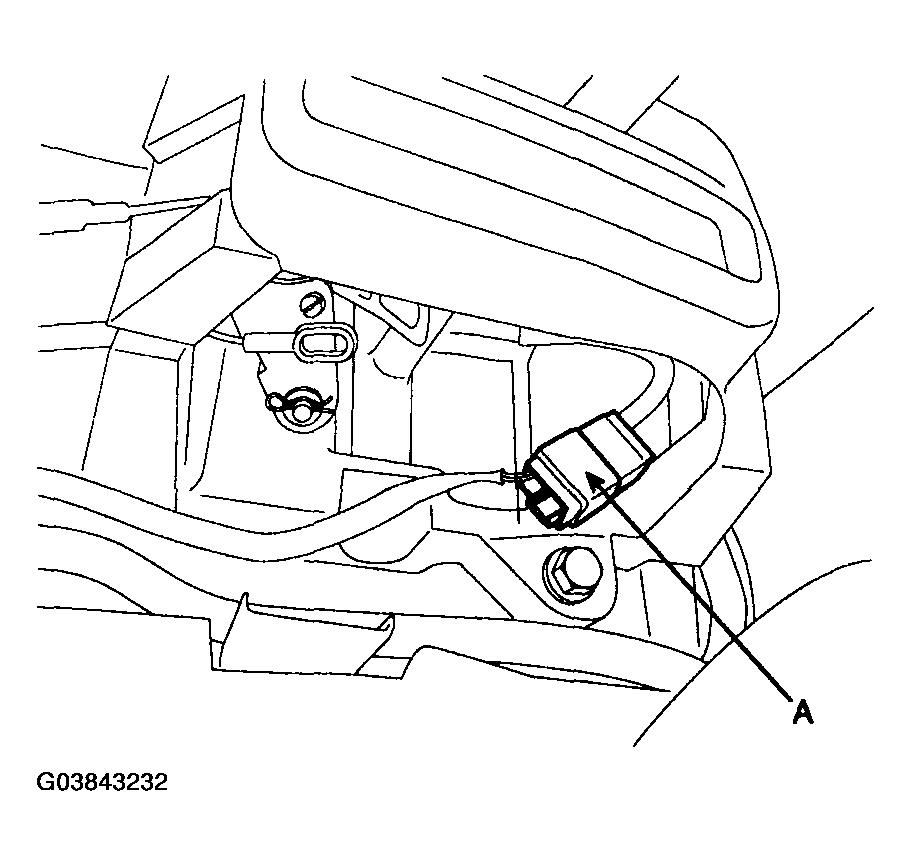

Remove the indicator connector(A).

Fig 10: Removing Indicator Connector
Courtesy of HYUNDAI MOTOR CO.

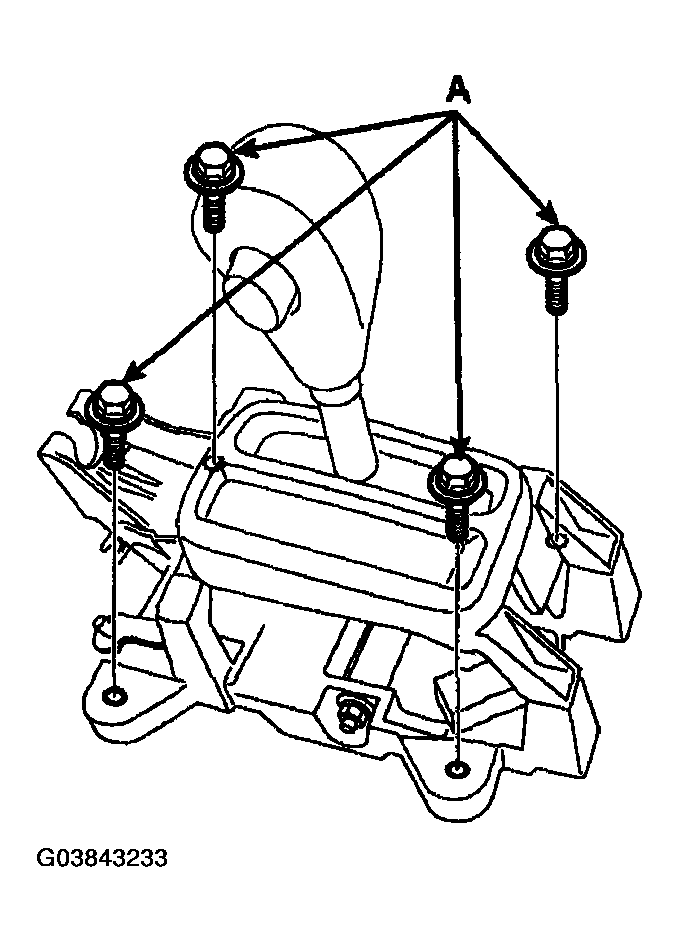

Remove the shift lever mounting bracket (Bolts : 4EA(A)).

Fig 11: Removing Shift Lever Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.
