Transaxle Range Switch Continuity Check

Continuity check

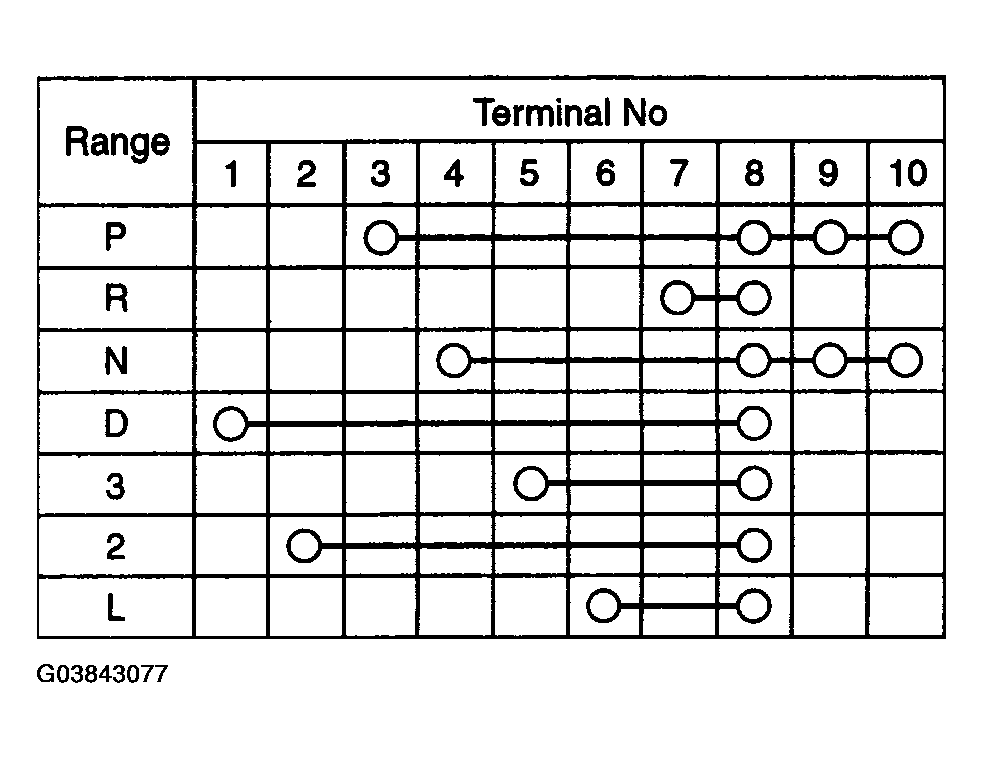

Fig 1: Transaxle Range Switch Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

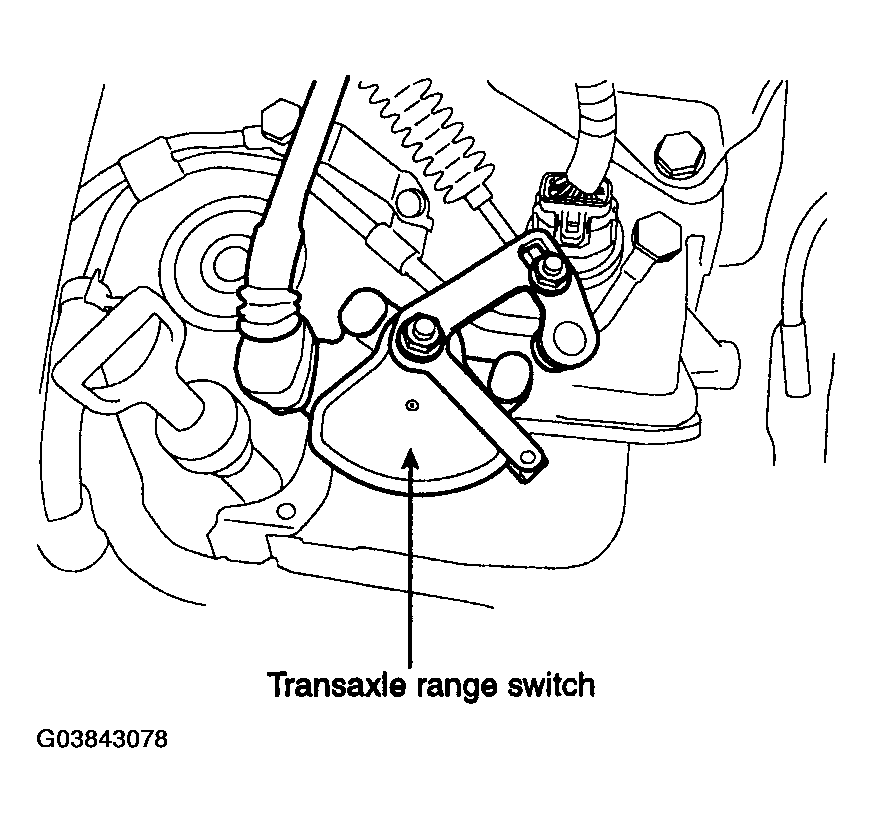

Fig 2: Identifying Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Transaxle Range Switch Connector Terminals

Courtesy of HYUNDAI MOTOR CO.
