Signal Circuit Inspection

Ignition "OFF".
Disconnect IATS connector.
Measure resistance between terminal 5 of the sensor harness connector and chassis ground.
Specification : Infinite

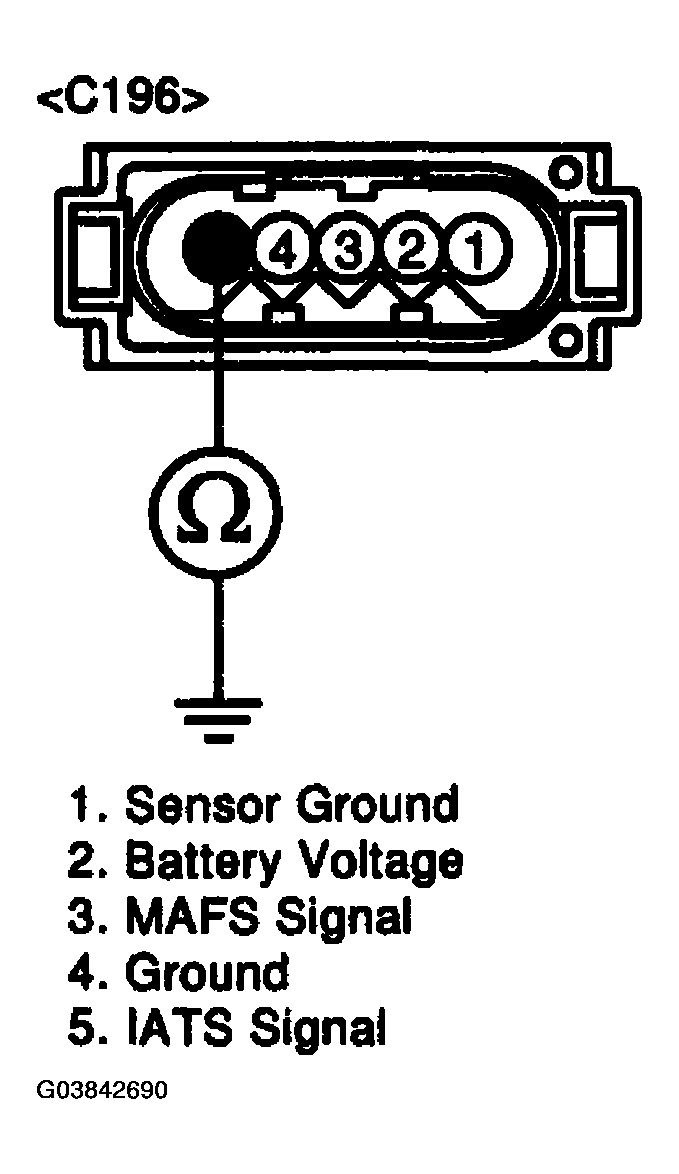

Fig 1: Measuring Resistance Between Terminal 5 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Repair short to ground in harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
