Hyundai
›
2005
›
Elantra GT, 4D Hatchback, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System
›
Gasoline Engine Control System
›
Components Location
Components Location

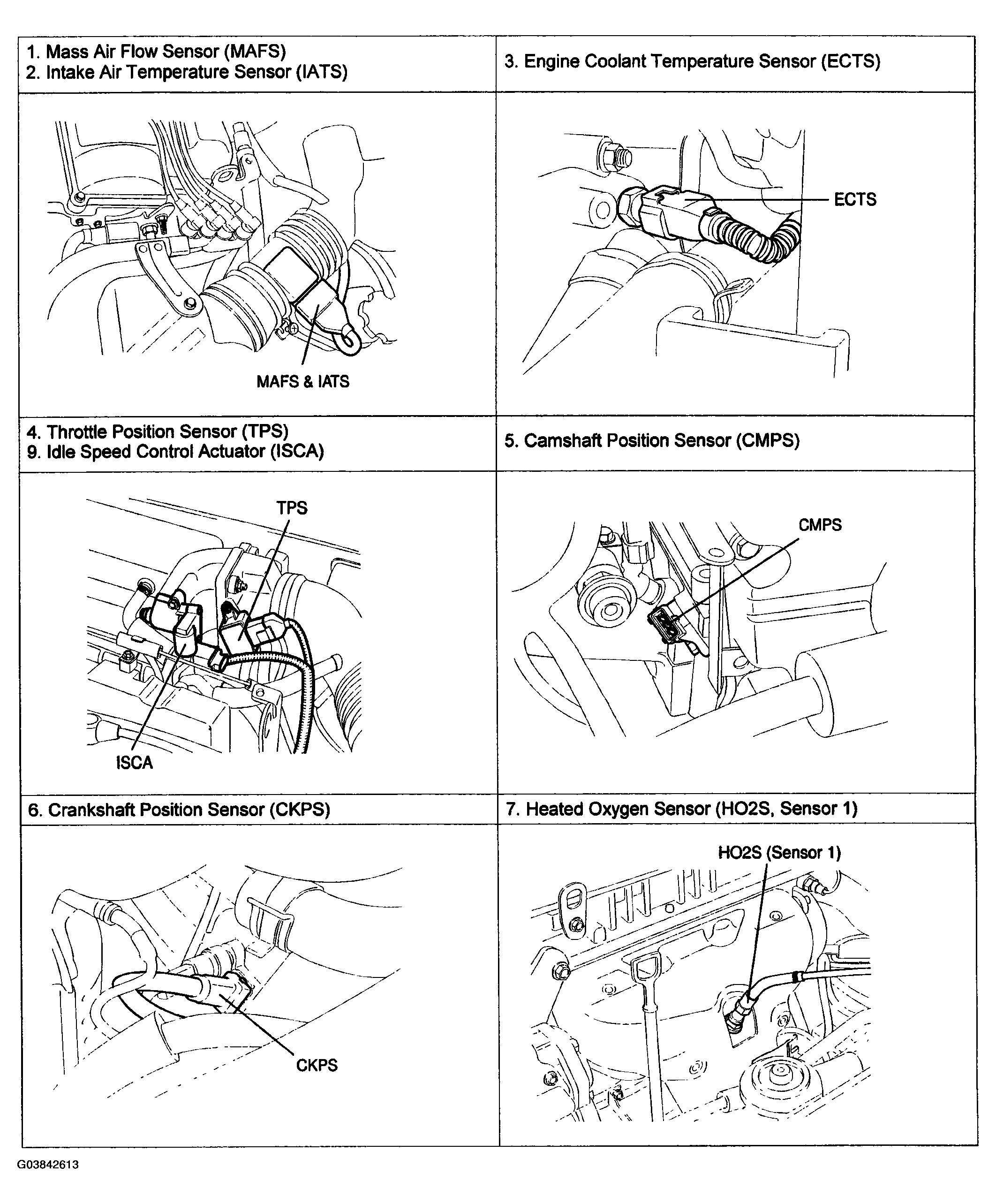

Fig 1: Identifying Fuel System Components Location (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

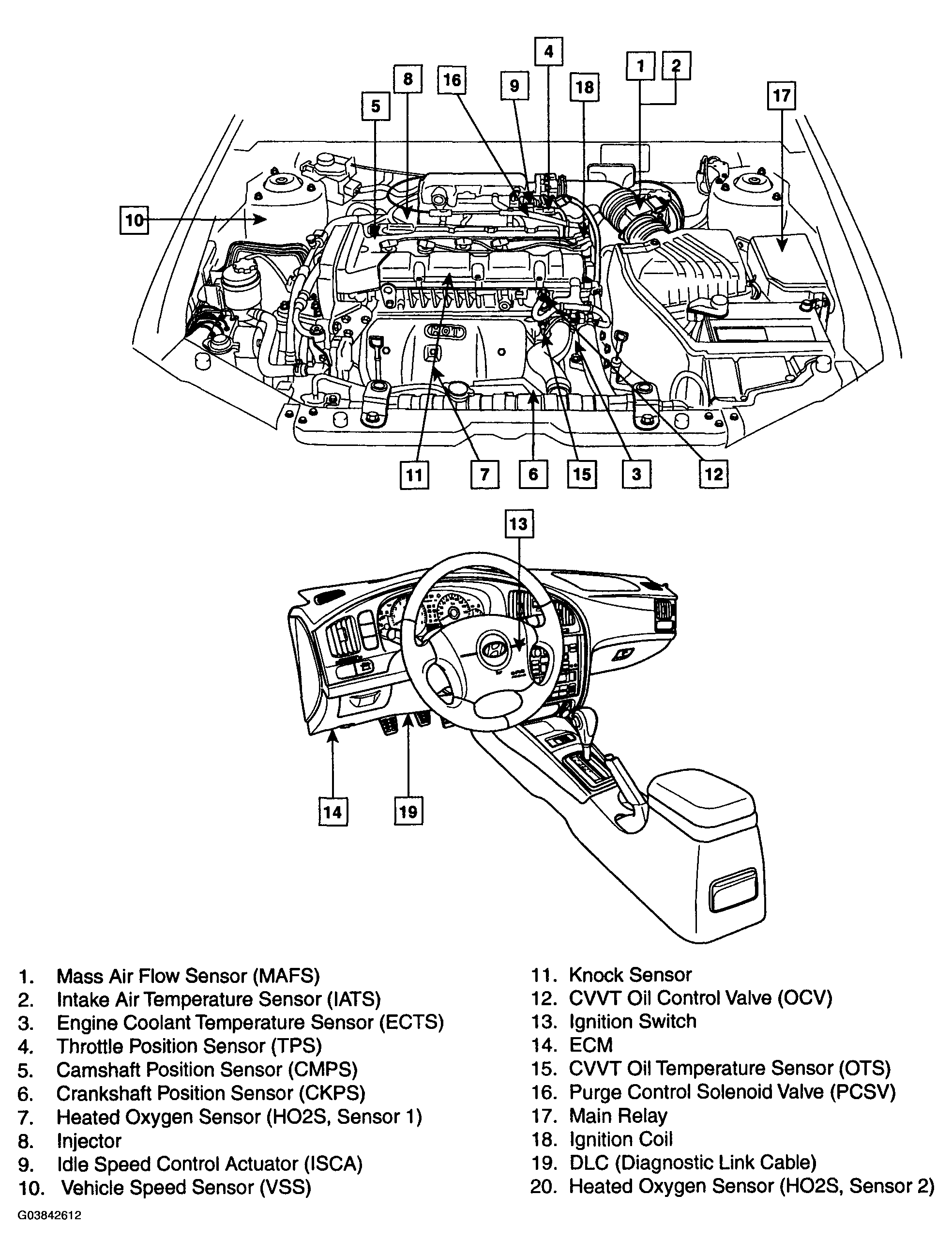

Fig 2: Identifying Fuel System Components Location (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

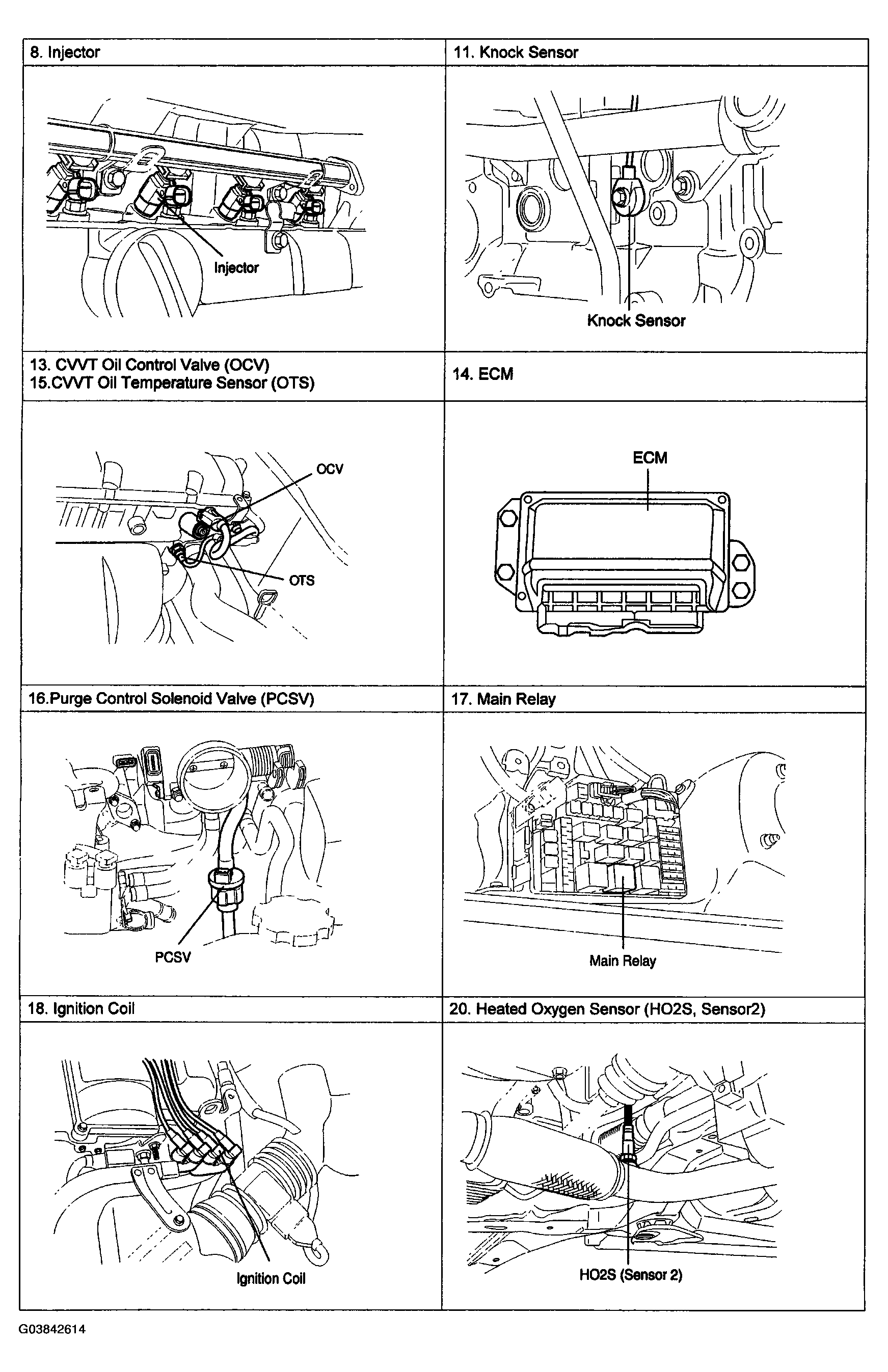

Fig 3: Identifying Fuel System Components Location (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
