Power Window Switch: Inspection: Notes
Remove the switch from the door trim panel.

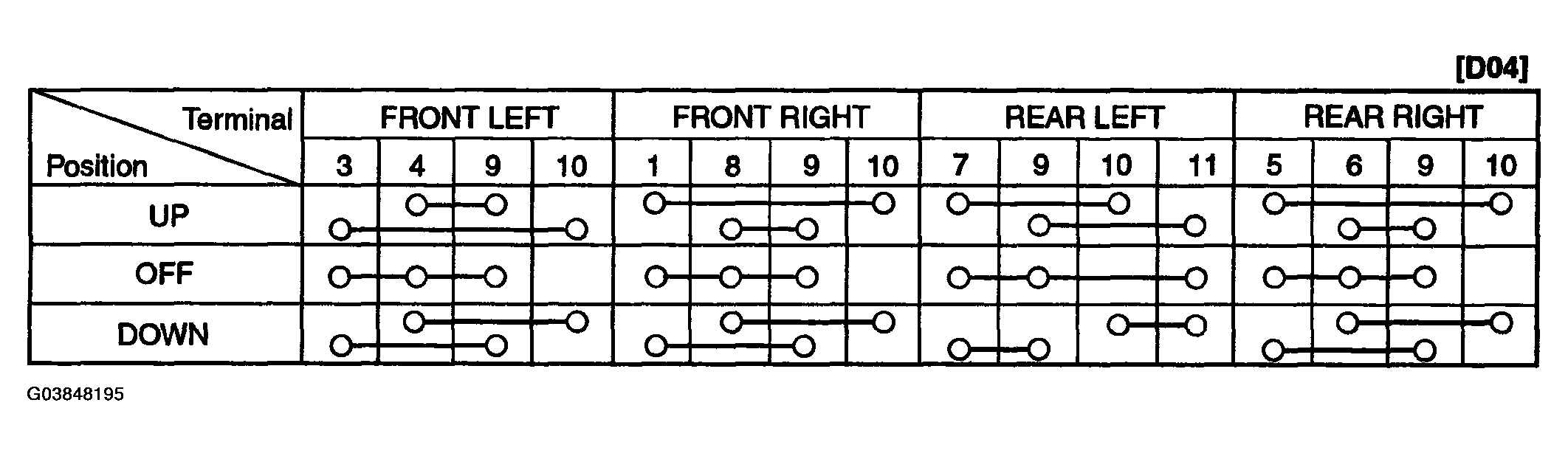

Check for continuity between the terminals. If continuity is not as specified in
Figure
or
Figure
, replace the power window switch.
