Harness Inspection Procedures

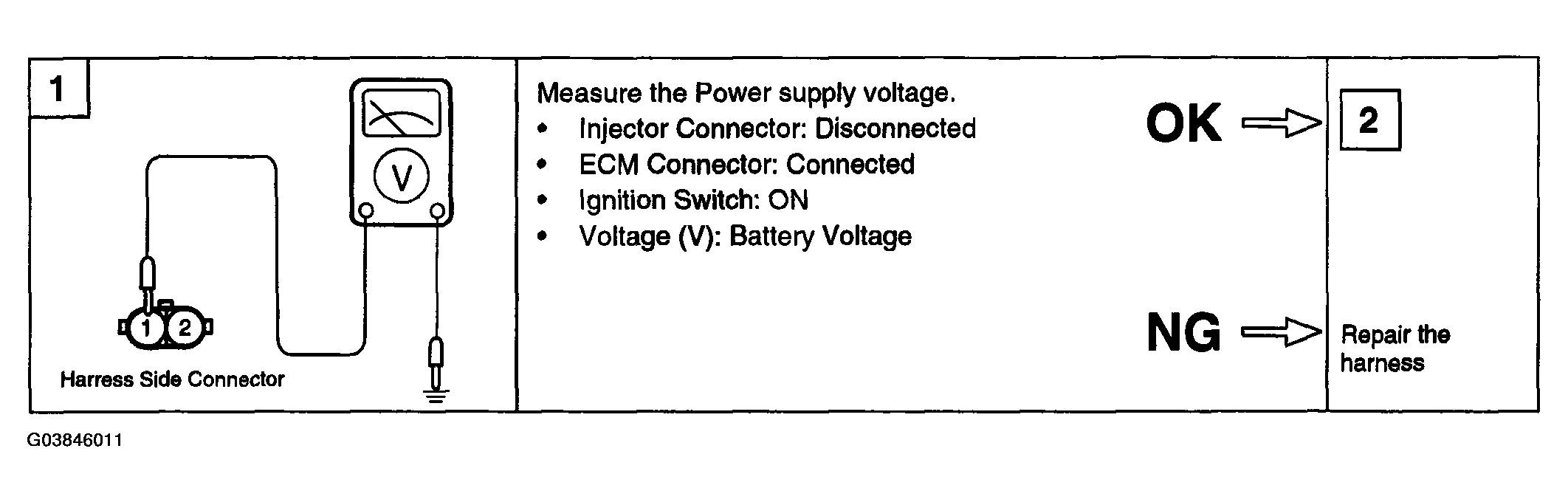

Fig 1: Checking Harness (1 Of 2)
G03846011Courtesy of HYUNDAI MOTOR CO.

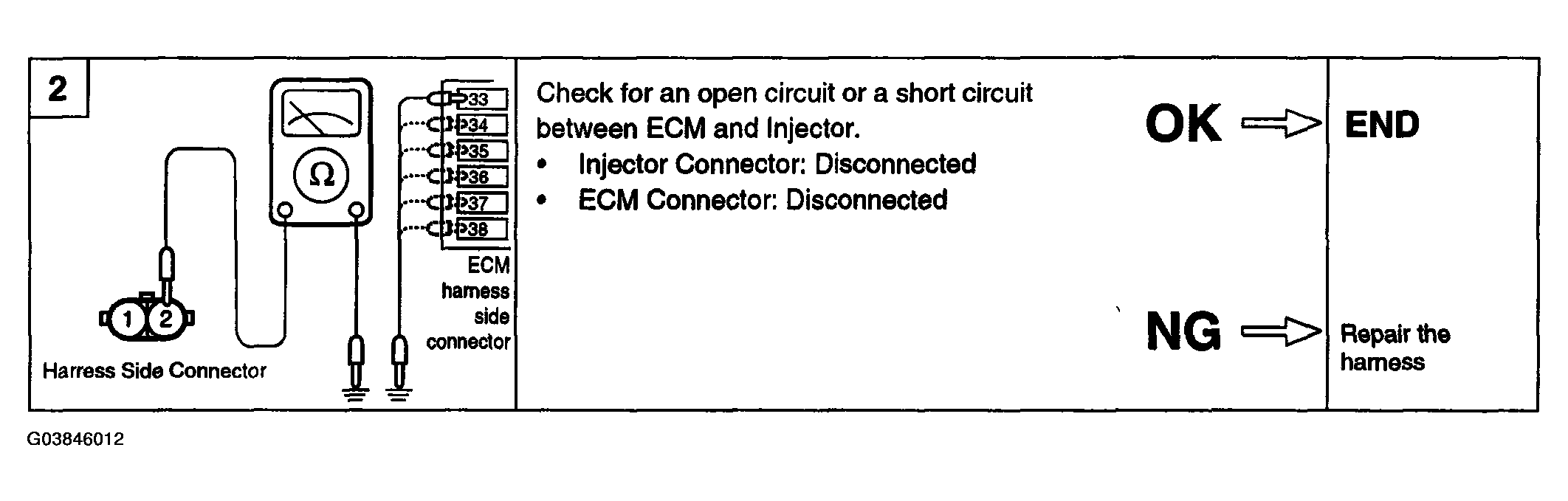

Fig 2: Checking Harness (2 Of 2)
G03846012Courtesy of HYUNDAI MOTOR CO.
