Intake Air Temperature Sensor (ATS): Notes

The Intake Air Temperature Sensor (ATS) located on the intake manifold is a resistor-based sensor for detecting the intake air temperature. According to the intake air temperature information from the sensor, the ECM provides necessary fuel injection amount control.

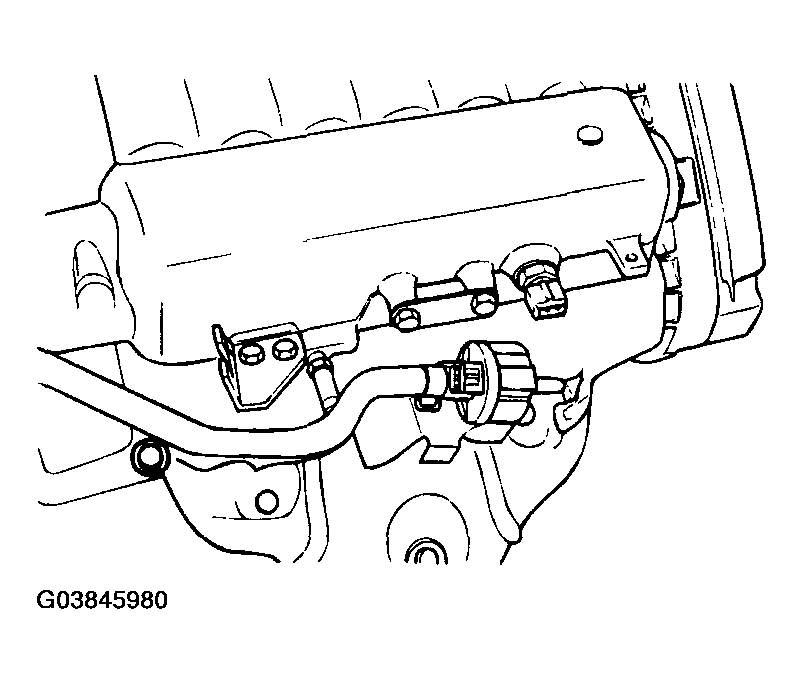

Fig 1: Locating Intake Air Temperature Sensor

Courtesy of HYUNDAI MOTOR CO.

[CIRCUIT DIAGRAM (ATS)]

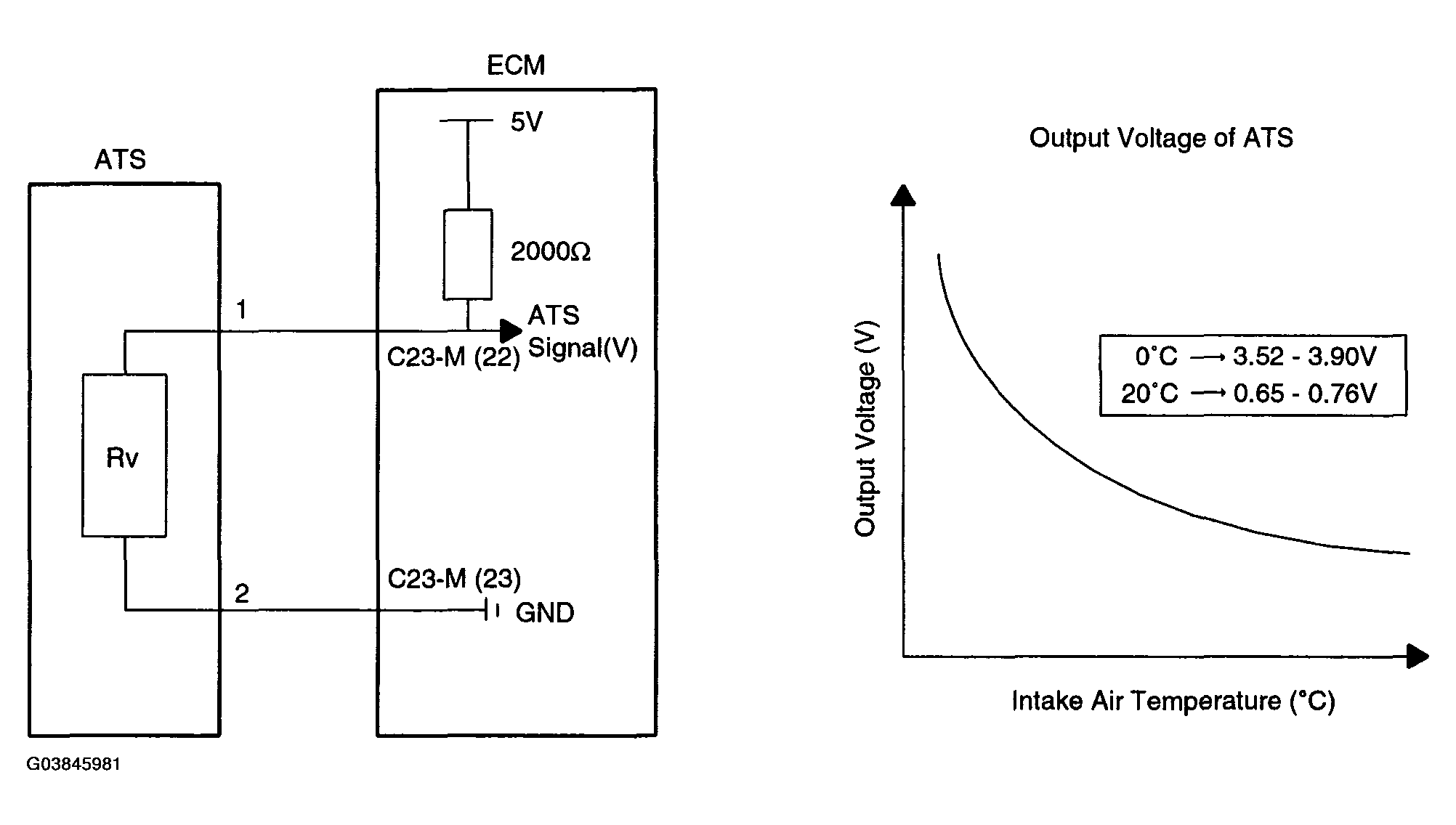

Fig 2: Intake Air Temperature Sensor Circuit Diagram (ATS)

Courtesy of HYUNDAI MOTOR CO.

[HARNESS CONNECTOR]

Fig 3: Identifying Intake Air Temperature Sensor (ATS) Harness Connector

Courtesy of HYUNDAI MOTOR CO.
