Location Of MFI Components

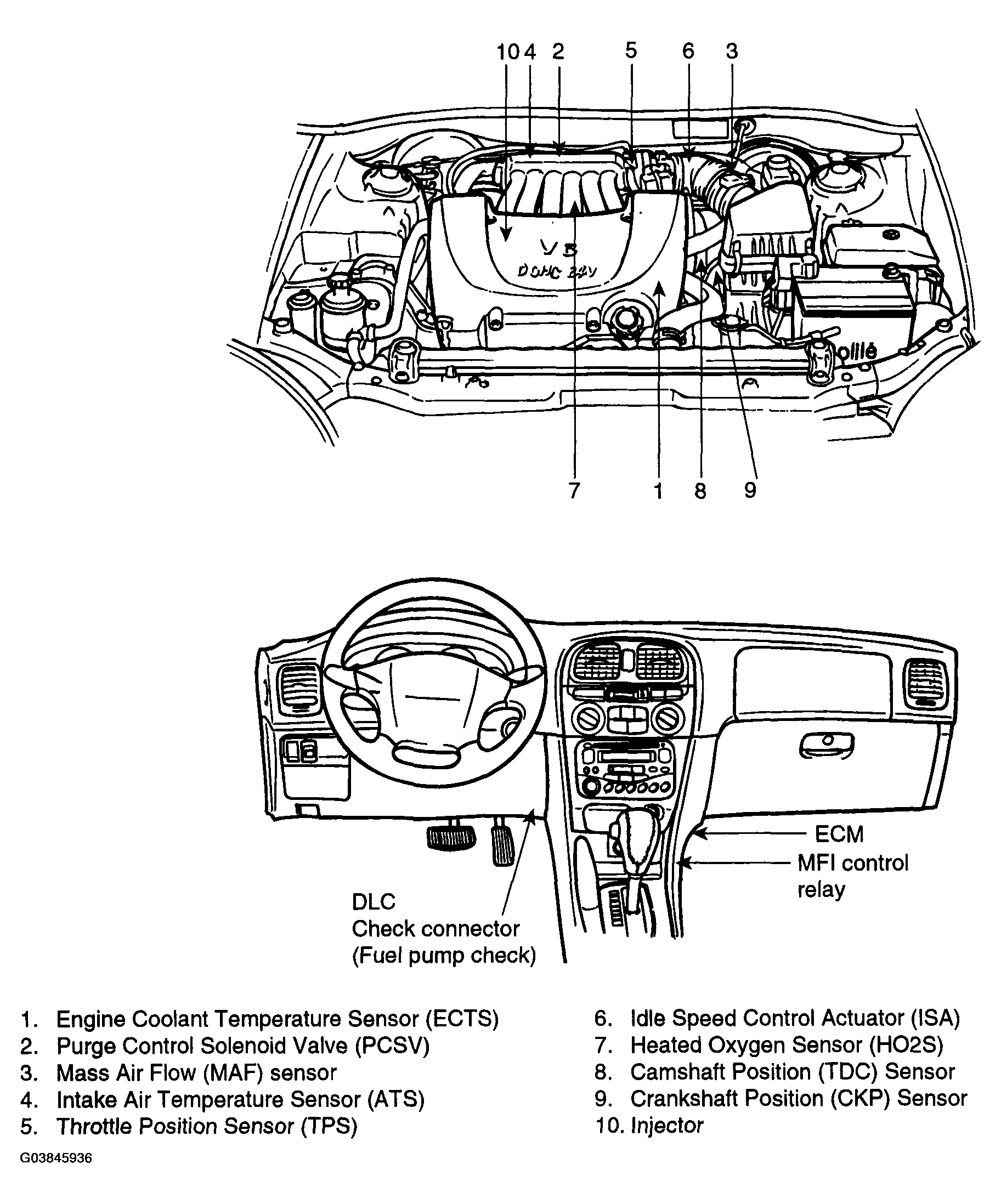

Fig 1: Locating MFI Components (1 Of 2)
G03845936Courtesy of HYUNDAI MOTOR CO.

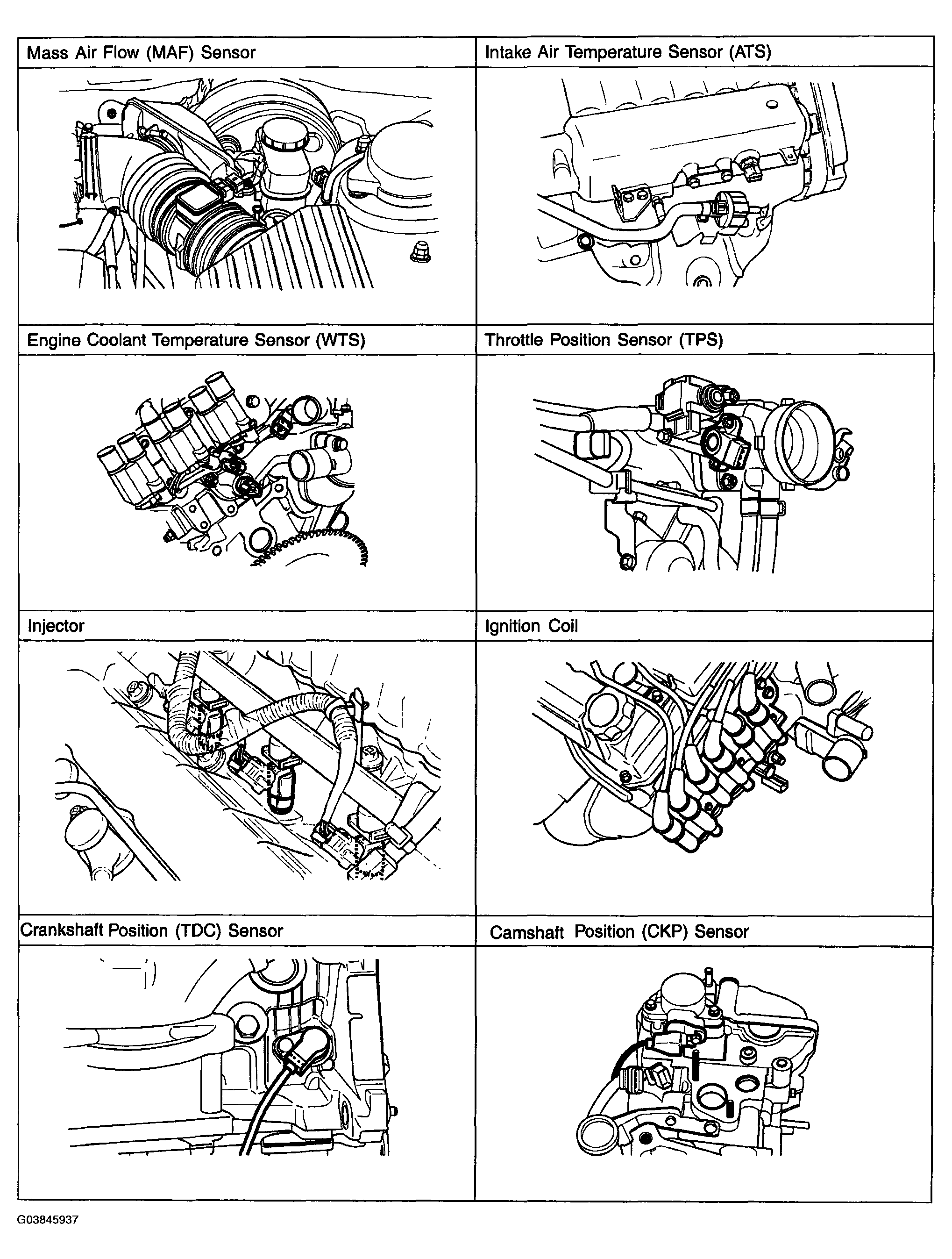

Fig 2: Locating MFI Components (2 Of 2)
G03845937Courtesy of HYUNDAI MOTOR CO.
