Coupling Assembly: Components

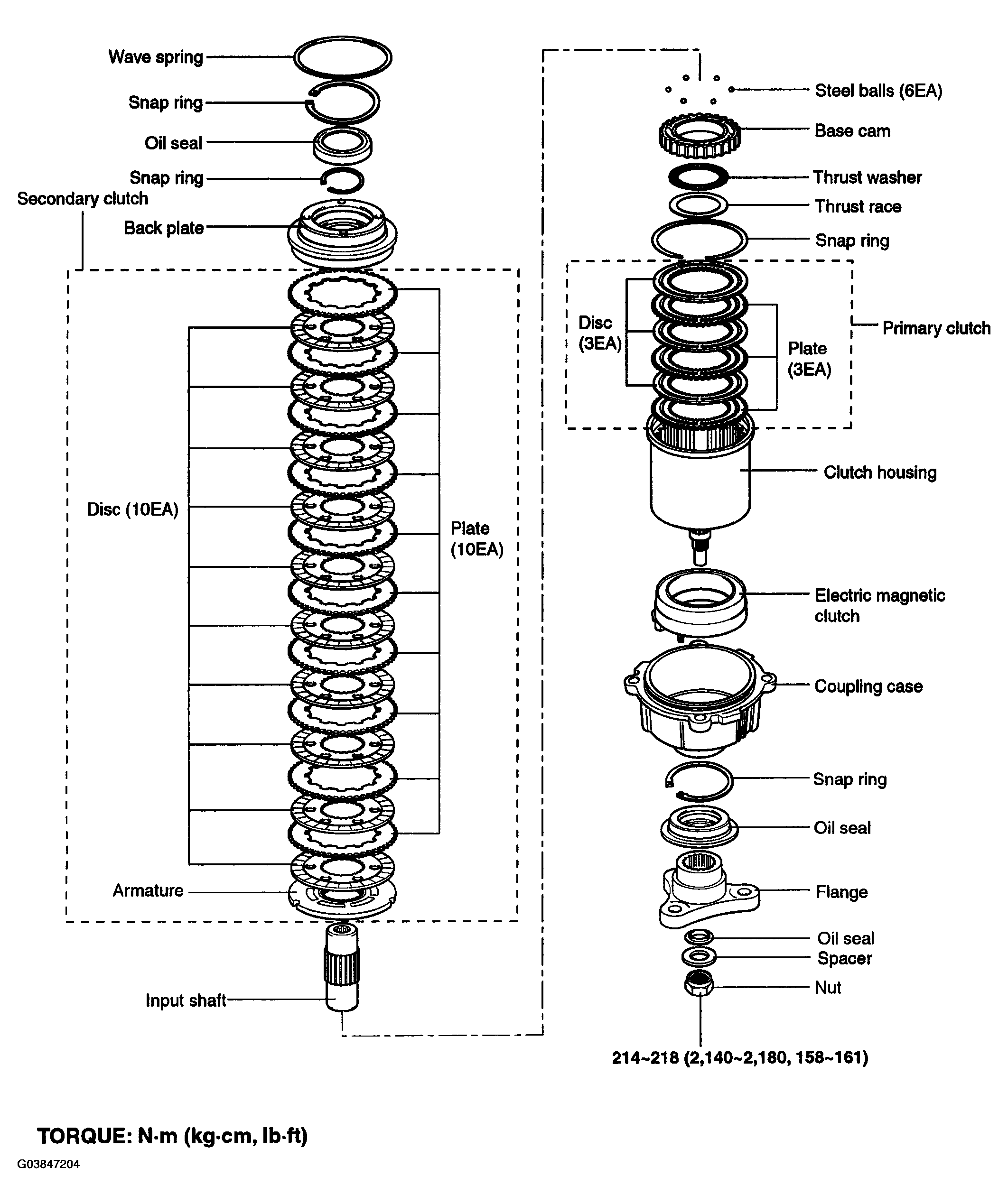

Fig 1: Exploded View Of Coupling Assembly And Torque Specifications
G03847204Courtesy of HYUNDAI MOTOR CO.
