Section View: Notes

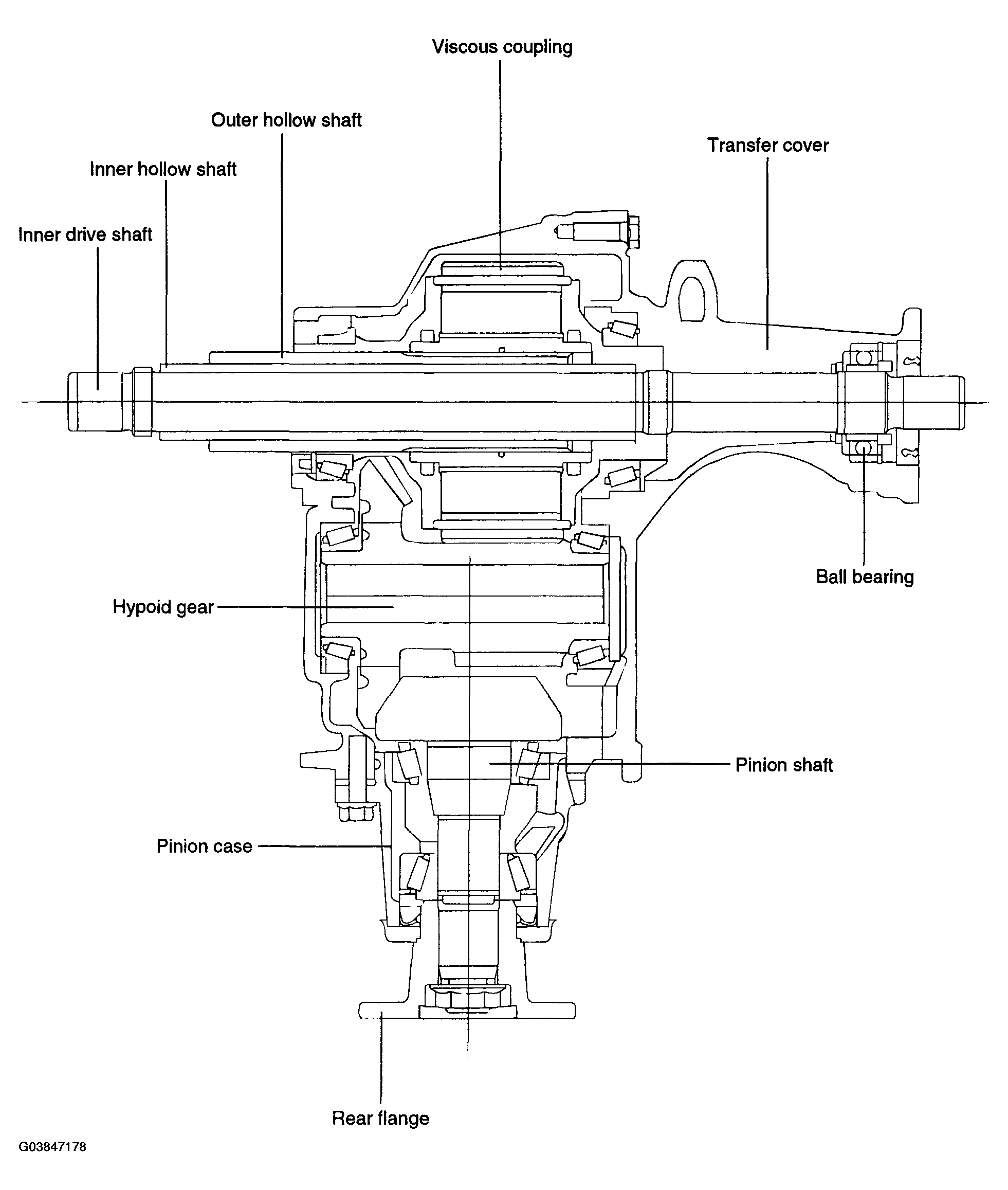

Fig 1: Section View Of Transfer Case Assembly
G03847178Courtesy of HYUNDAI MOTOR CO.
