Cruise Control Main Switch
Cruise Control Main Switch
Operate the switch and check for continuity between the terminals.
If continuity is not as specified, replace the switch.

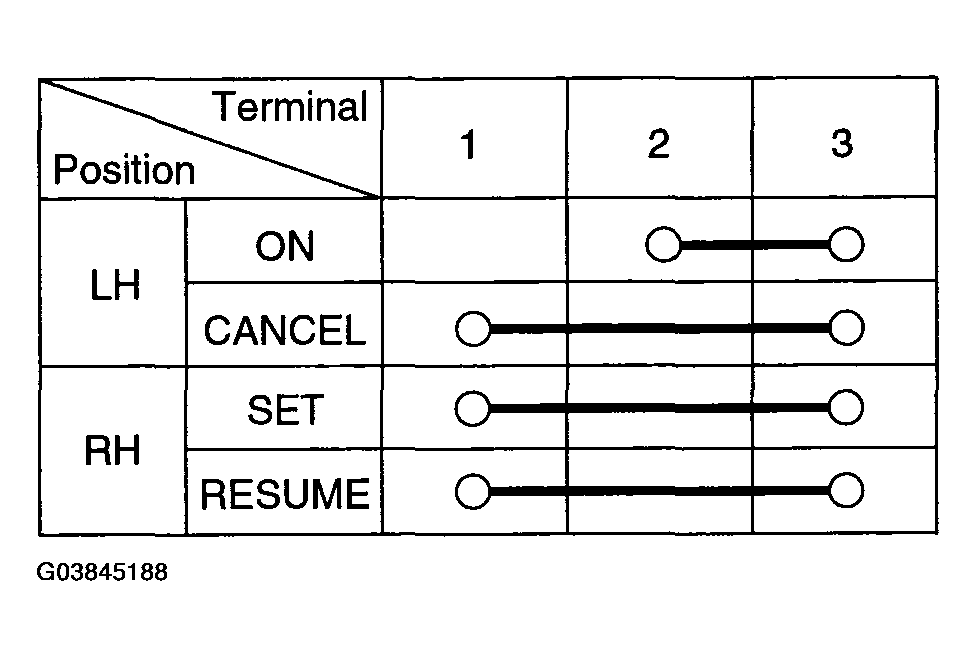

Fig 1: Continuity Specification Chart
Courtesy of HYUNDAI MOTOR CO.

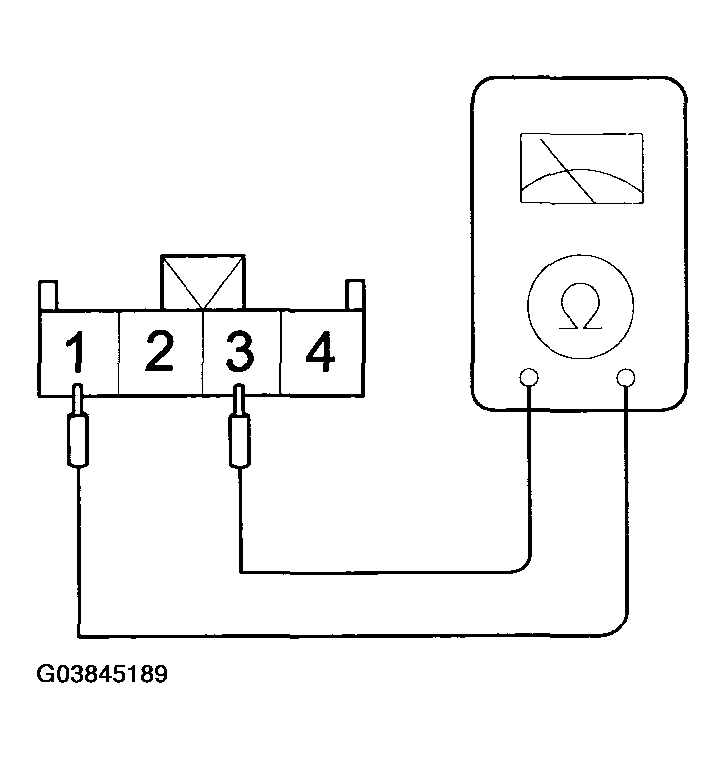

Fig 2: Checking Continuity Between Terminals
Courtesy of HYUNDAI MOTOR CO.
