Santa Fe LX, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Immobilizer Control System
›
System Block Diagram
System Block Diagram

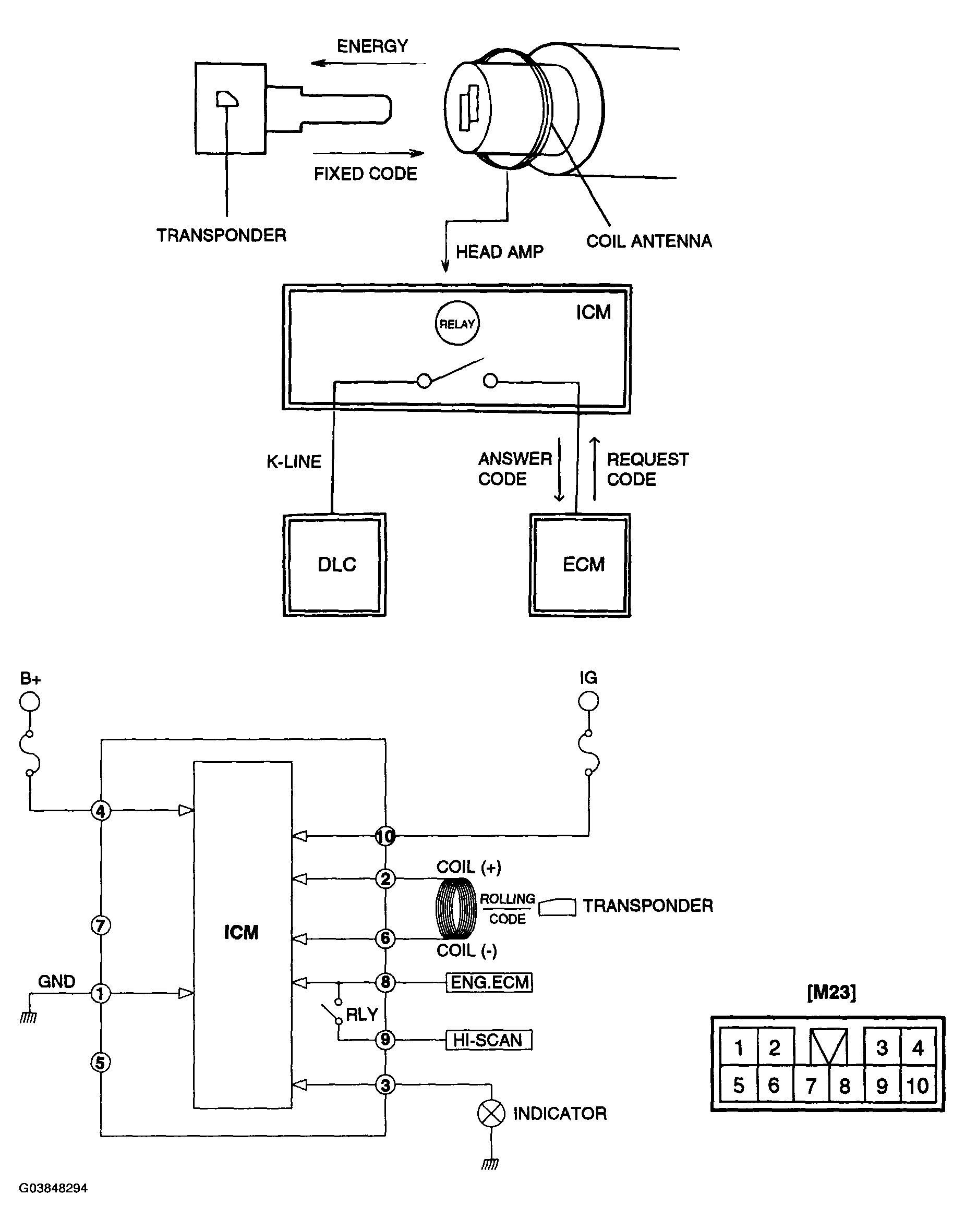

Fig 1: Immobilizer Control System Block Diagram
