2.4 DOHC Engine
2.4 DOHC Engine

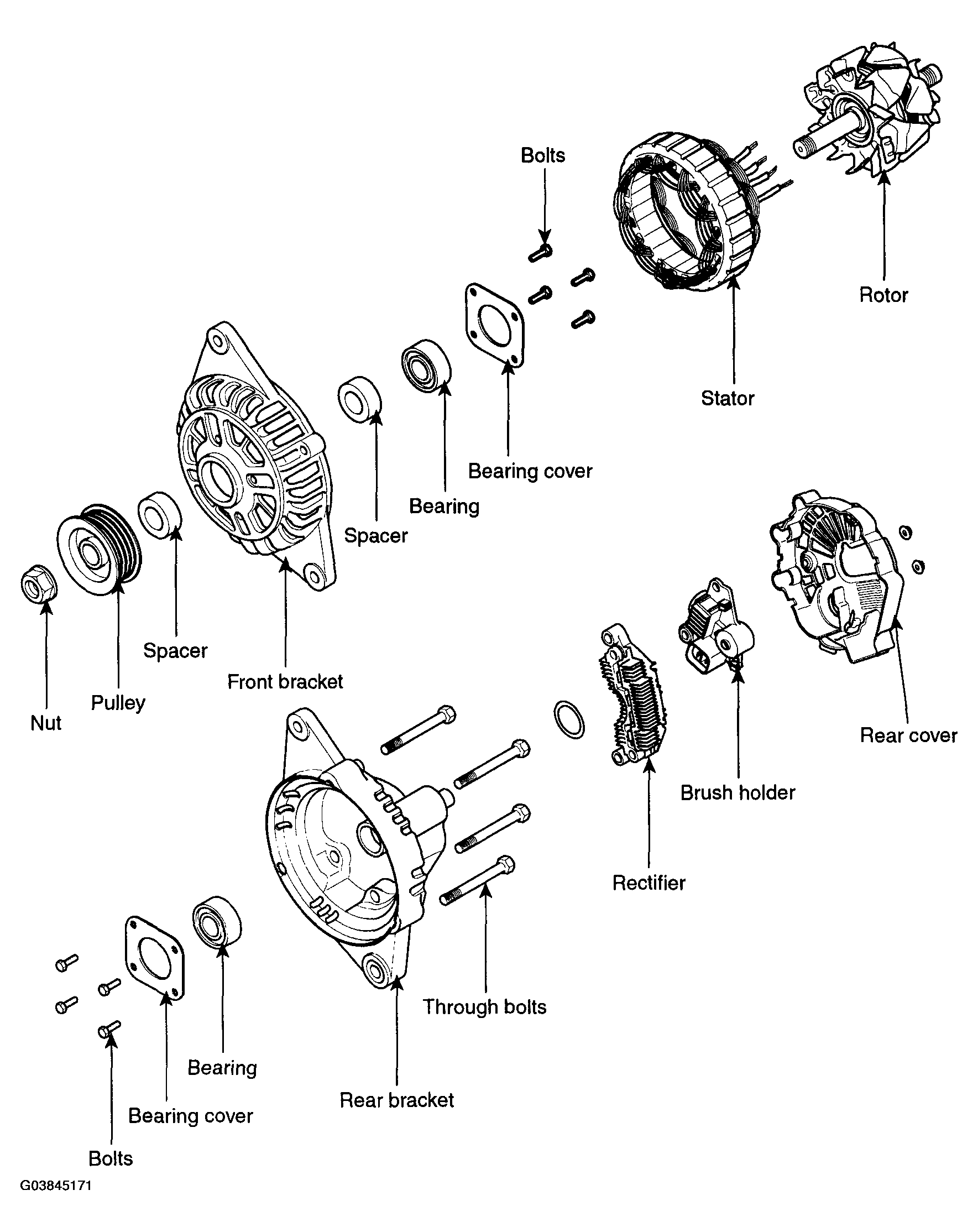

Fig 1: Exploded View Of Generator (2.4 DOHC Engine)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
