2.7 V6 Engine
2.7 V6 Engine

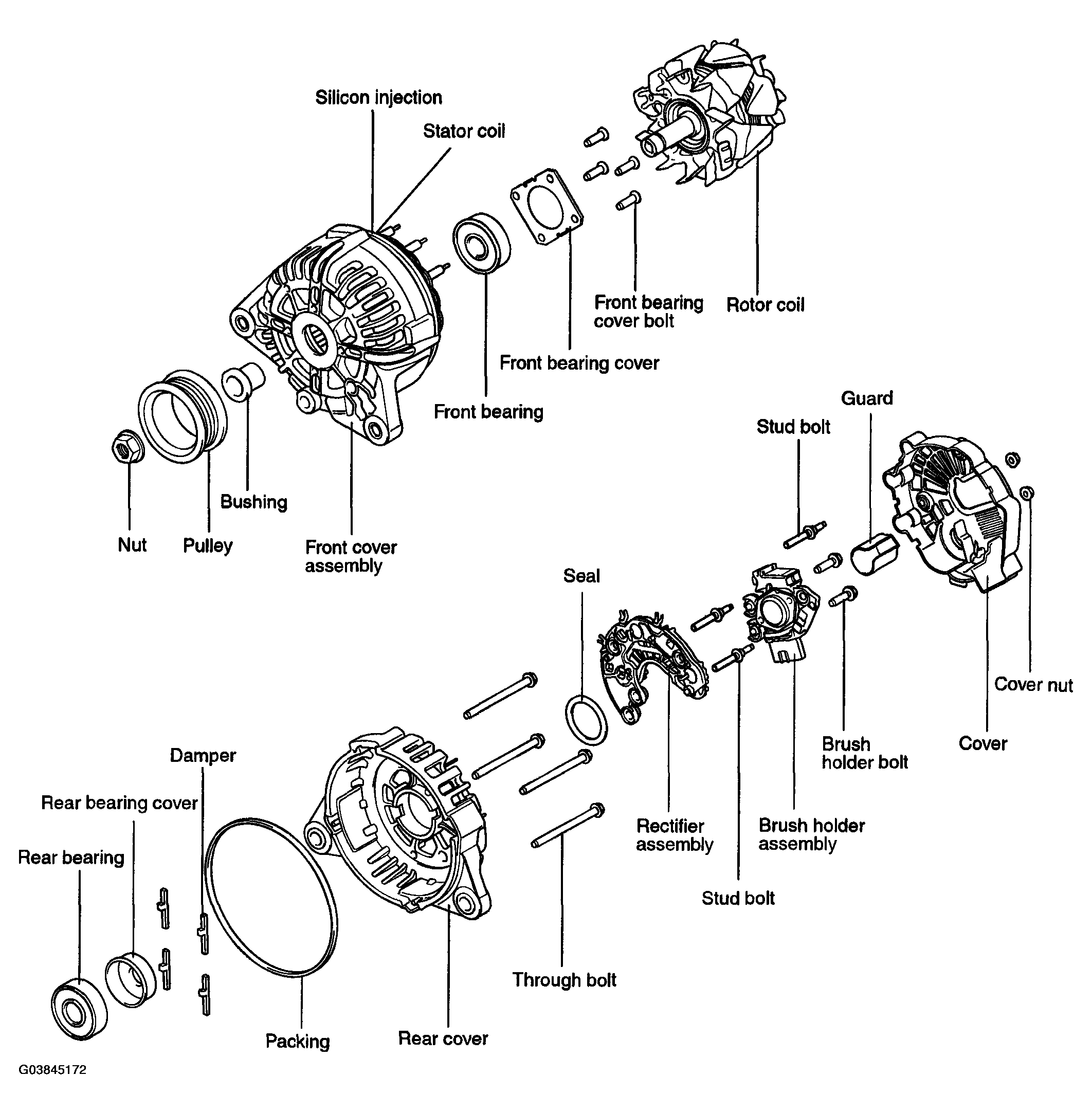

Fig 1: Exploded View Of Generator (2.7 V6 Engine)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
